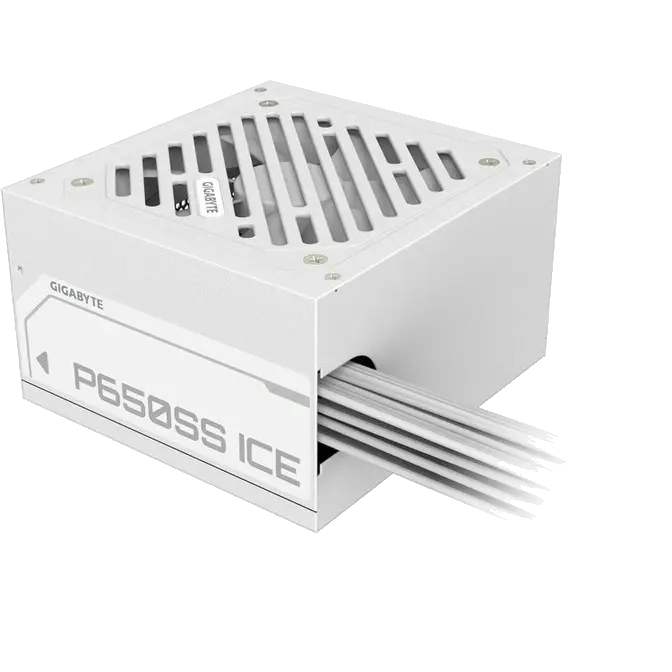

650 Watt Gigabyte P650SS ICE 80 Plus Silver Power Supply
Web ID: 45147
Power Supply: 650W
Certification: 80 Plus Silver
PSU Form Factor: ATX (PSU)
Colour: White
Manufacturer Warranty: 3 Year
Manufacturer PN: GP-P650SS ICE
Manufacturer Website
$79
| Model | GP-P650SS ICE |
| Type | Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1) |
| PFC | Active PFC (>0.9 typical) |
| Input Voltage | 155-240 Vac |
| Input Current | 6.3A |
| Input Frequency | 60-50 Hz |
| Output Capacity | 650W |
| Dimension | 150 x 140 x 86 mm |
| Fan Type | 120mm Fluid Dynamic Bearing (FDB) fan |
| 80 PLUS | Silver |
| Efficiency | 90% at typical load (230V EU) |
| MTBF | >100,000 hours |
| Protection | OVP/OPP/SCP/UVP/OCP/OTP |
| Power Good Signal | 100-150ms |
| Hold Up Time | >16ms |
| Cable Type | Flat, All white |
| Connectors | ATX/MB 20+4 Pin x 1 : 600mm*1 |
| CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1 | |
| PCI-e 6+2 Pin x 2 : 600mm*2 | |
| SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1 | |
| SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1 |
