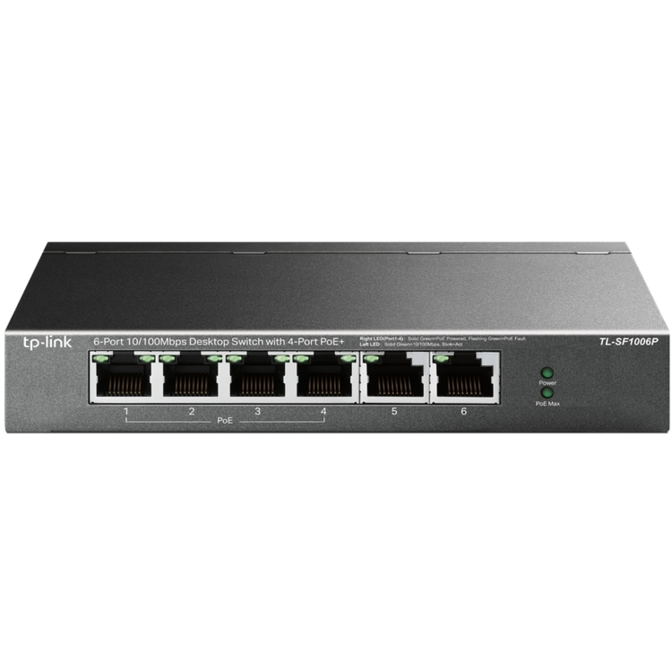

Professional High-Power Switch with 4 PoE+ Ports
Plug and Play, with PoE Transmission for Surveillance up to 250 m
TL-SF1006P
-
67 W PoE Budget*
-
Plug and Play
-
Transmission Distance up to 250 m**
-
One-Click Priority Mode
-
Intelligent Power Management
-
Durable Metal Casing
Dedicated 4-Poart PoE+ Switch (67 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE standard supports up to 15.4 W on each PoE port. The total 41 W PoE power budget* for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Surveillance
IP Camera
Conference Calls
IP Phone
Wi-Fi Coverage
Access Points
4 PoE+ Ports
Up to 30 W on Each Port
Total 67 W Power Budget
TL-SF1006P
Router
Internet
Plug and Play, No Configuration Required
-
1
Plug In
-
2
Connect Devices
IP phone
IP Camera
Access Points
Network Video Recorder
Internet
TL-SF1006P
Router
-
3
Enjoy
Ideal for IP Surveillance
—Up to 250 m Transmissions
With extend mode, the PoE transmission distance reaches up to 250 m**—perfect for IP Camera deployment in large areas.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.
Extend Mode Button
TL-SF1006P ( Extend Mode On )
Up to 250 m
Extended is 10 Mbps/port
×4
Up to Four IP Cameras
TL-SF1006P ( Extend Mode Off )
100 m
Default is 100 Mbps/port
×4
Up to Four IP Cameras
Priority Video
Quality Guaranteed
Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.
Priority Mode Button
Power overload
67W
Intelligent Power Management
Intelligent power supply
67W
19W
19W
19W
19W
19W
19W
19W
Intelligent Power Management
When total power consumption exceeds 67 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
High-Quality Metal
25mm
158mm
101mm
Durable Metal Casing
The interior components of TL-SF1006P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1006P delivers switching performance you can depend on.
-
Compact Desktop Design
-
Wall-Mounting
-
Fanless Design
*PoE budget calculations are based on laboratory testing. Actual PoE power budget is not guaranteed and will vary as a result of client limitations and environmental factors.
**The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and typ
