6 Bay QNAP TVS-672XT Core i3 8GB 10 Gigabit NAS Unit TVS-672XT-I3-8G
Web ID: 26232
Powered by an 8th generation Intel Core processor, the high-performance TVS-672XT NAS features both 10GBASE-T and Thunderbolt 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: TVS-672XT-I3-8G
Powered by an 8th generation Intel® Core™ processor, the high-performance TVS-672XT NAS features both 10GBASE-T and Thunderbolt™ 3 high-bandwidth connectivity for tackling heavy workloads and smoothly transferring, displaying and editing 4K videos in real-time. With M.2 SSD support and the ability to install a graphics card, the TVS-672XT provides the ability to boost performance and create a scalable working environment for collaboration and high-speed file sharing. The TVS-672XT is driven by high-quality hardware that delivers optimum performance, comprehensive multimedia features, expandable storage capacity, and numerous other NAS functionalities to inspire greater creativity and accomplishments!
High-speed Thunderbolt™ 3 with SMB protocol, allowing Mac® and Windows® users to collaborate on media editing.
5-speed 10GBASE-T RJ45 connectivity accelerates virtualization applications and file sharing across teams and devices.
PCIe expandability allows for graphics cards or 40GbE/ 25GbE/ 10GbE adapters to increase application performance.
Install M.2 PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs (sold separately) to set up caching or storage pools, improving file access efficiency.
4K media playback and real-time transcoding; directly view creative works on an HDTV via HDMI 2.0 (4K @60Hz) output.
Snapshots fully record system status and data, allowing you to protect files and data from accidental deletion and malware attacks.
Fast and flexible Thunderbolt™ 3 and 10GBASE-T connectivity
The TVS-672XT adopts the powerful 8th generation Intel® Core™ i3 8100T quad-core 3.1 GHz processor with 8 GB dual-channel DDR4 memory (upgradable to 32 GB) to deliver outstanding performance. It provides two Gigabit and one 5-speed 10GBASE-T port (10G/5G/2.5G/1G/100M), supports SATA 6Gb/s drives, and features AES-NI encryption for delivering high performance while also maintaining the security of your data. You can also connect USB Type-C devices through the Thunderbolt™ 3 ports to transfer large media files across devices, providing you with a more efficient workflow.
Note: Mac OS 10.11.5 (and later) enables SMB signing by default, which may impact the connection speed to the NAS. To improve the connection speed, users can disable SMB signing or use Qfinder Pro to connect to the NAS.
Extend NAS functionality with a graphics card and other PCIe devices
The TVS-672XT features two PCIe Gen 3 slots (the first slot is pre-installed with a Thunderbolt™ 3 card) that allow for the usage of various expansion cards to expand application potential.
Accelerate NAS video processing and empower GPGPU tasks. GPUs can also be passed-through to virtual machines.
QM2 M.2 SSD/10GbE cards
Add M.2 SSD caching or 10GbE (10GBASE-T) connectivity to the NAS for optimized performance and bandwidth.
10GbE/ 40GbE adapters
Enable lightning-fast throughput for bandwidth-demanding tasks such as virtualization, massive data transmission, and fast backup/restoration.
Wireless network cards
Use the QNAP QWA-AC2600 wireless adapter with WirelessAP Station to transform the TVS-672XT into a convenient wireless base station, allowing network resources of the NAS to be shared with multiple devices.
Obtain performance benefits from M.2 SSD caching
Besides using 2.5-inch SSDs for caching, you can utilize the two M.2 SSD slots built in to the TVS-672XT for installing PCIe (Gen 3 x2, 2 GB/s) NVMe SSDs with 2280 form factors (M.2 SSDs are sold separately).
Improve random data access speeds with an SSD cache
SSD caches accelerate IOPS performance and reduce latency for storage volumes. They are perfect for IOPS-demanding applications (including databases and virtualization) and can significantly improve overall workflows.

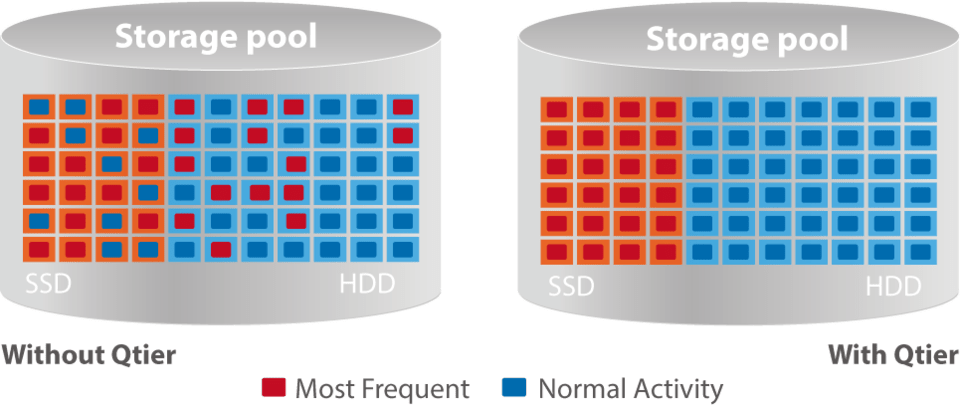

Maximize the value of SSDs with Qtier Technology
Qtier™ Technology empowers the TVS-672XT with auto tiering that helps continuously optimize storage efficiency by automatically moving data between M.2 SSDs, 2.5-inch SSDs, and high-capacity HDDs based on the data's access frequency. Qtier™ 2.0 features IO-awareness that empowers SSD-tiered storage with a cache-like reserved space to handle burst I/O in real time, greatly maximizing the advantages of SSDs.

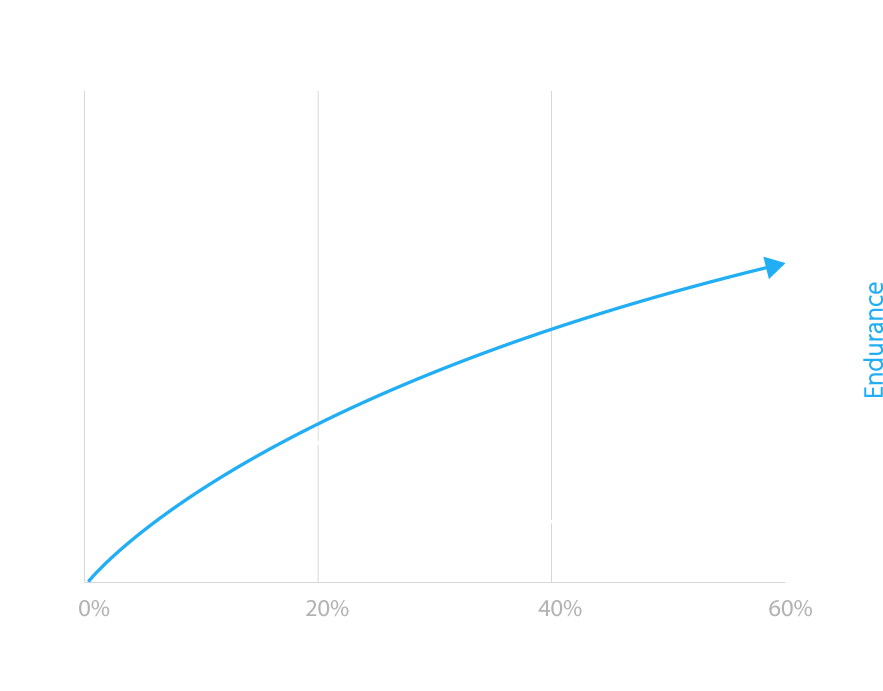

Potentially attain performance and endurance levels similar to enterprise-grade SSDs
With SSD prices continuing to become more affordable, there's never been a better time for using SSDs in your NAS to enjoy higher performance, faster file backups, smoother multimedia experiences, and optimized virtualization applications. From QTS 4.3.5 you can benefit from software-defined SSD RAID extra over-provisioning (OP) that enables you to allocate additional OP space (from 1% to 60%) to optimize random write speeds and to extend SSD lifespan. Now you can use affordable consumer SSDs for the TVS-672XT, adjust the SSD OP, and potentially attain performance and endurance levels similar to enterprise-grade SSDs.

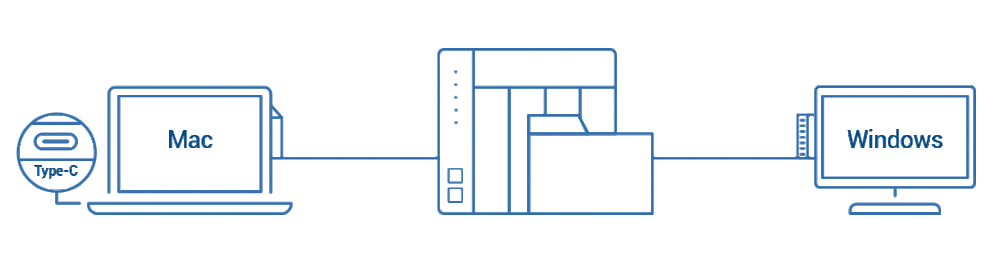

Collaboration station for Mac and Windows
The TVS-672XT is the perfect match for Thunderbolt™-equipped Mac® and Windows® users - especially for photographers, filmmakers, and graphic designers who require 4K media storage, instant sharing and have bandwidth-intensive workflows. Up to 2 Thunderbolt™ devices can be connected to the TVS-672XT to process real-time photo and audio editing simultaneously without impacting system performance. As Final Cut Pro® X 10.3 (and later) supports file sharing via SMB, Windows® users and other devices utilizing Thunderbolt™ 3, 10GbE or GbE connections can join the editing workflow more efficiently.
Note: Thunderbolt™ cables are sold separately. Thunderbolt™ 3 (USB-C) to Thunderbolt™ 2 converters may not be compatible with certain Windows PC models.
The best storage solution for the 10GbE-equipped iMac Pro
The iMac Pro® is the first Mac® computer that includes a 10Gb Ethernet port, marking a milestone in the growing mainstream demands for 10GbE connectivity. As the TVS-672XT comes with both 10GbE and Thunderbolt™ 3 ports, it provides an exceptional storage base for iMac Pro® users as they can flexibly choose between Thunderbolt™ 3 and 10GbE connections to suit their application and device needs.
Create a seamless 10GbE environment for both Mac and Windows users
QNAP provides various budget-friendly solutions to help upgrade your network environment to 10GbE. No matter if your team members use Mac® or Windows® computers, they can enjoy blazing-fast transfer speeds and simultaneous real-time access to large NAS-based files using multiple workstations (ideal for video editing and multimedia).
|CPU||Intel® Core™ i3-8100T 4-core 3.1 GHz Processor|
|CPU Architecture||64-bit x86|
|Graphic Processors||Intel® UHD Graphics 630|
|Floating Point Unit||Yes|
|System Memory||8 GB SODIMM DDR4 (2 x 4 GB)|
|Maximum Memory||32 GB ( 2 x 16 GB)|
|Memory Slot||2 x SO-DIMM DDR4|
|Flash Memory||4GB (Dual boot OS protection)|
|Drive Bay||6 x 3.5-inch|
|Drive Compatibility||3.5-inch bays: |
3.5-inch SATA hard disk drives
2.5-inch SATA hard disk drives
2.5-inch SATA solid state drives
|M.2 SSD Slot||2 x M.2 2280 PCIe Gen3 x2 slots|
|SSD Cache Acceleration Support||Yes|
|Gigabit Ethernet Port (RJ45)||2|
|10 Gigabit Ethernet Port||1 x 10GBASE-T (10G/5G/2.5G/1G/100M)|
|PCIe Slot||2 |
Slot 1: PCIe Gen3 x16 (CPU)
Slot 2: PCIe Gen3 x4 (PCH)
Slot 1 is preinstalled with a Thunderbolt 3 adapter
|USB 3.0 port||1|
|USB 3.1 Gen 2 (10Gbps) Port||2 x Type-C USB 3.1 Gen2 5V/3A 10Gbps |
2 x Type-A USB 3.1 Gen2 5V/1A 10Gbps
|IR Sensor||(QNAP RM-IR004 & MCE)|
|HDMI Output||1, HDMI 2.0 (up to 3840 x 2160 @ 60Hz)|
|Audio Input||1 x 3.5mm microphone input jacks|
|Audio Output||speaker, 3.5mm line out jack|
|LED Indicators||HDD 1-6, Status, LAN, USB port, M.2 port|
|LCD Display/ Button||Yes|
|Buttons||Power, Reset, USB Copy|
|Dimensions (HxWxD)||188.2 × 264.3 × 279.6 mm|
|Weight (Net)||6.553 kg|
|Weight (Gross)||8.07 kg|
|Operating temperature||0 - 40 °C (32°F - 104°F)|
|Relative Humidity||5-95% RH non-condensing, wet bulb: 27°C (80.6°F)|
|Power Supply Unit||250W, 100-240V|
|Power Consumption: HDD Sleep Mode||26.52 W|
|Power Consumption: Operating Mode, Typical||45.6 W |
With WD10EFRX drives fully populated
|Fan||System: 2 x 9.2cm fan (12V DC) |
CPU: 2 x 6cm blower fan
|Sound Level||23.8 db(A)|
|System Warning||Voice prompts or Buzzer|
|Kensington Security Slot||Yes|
