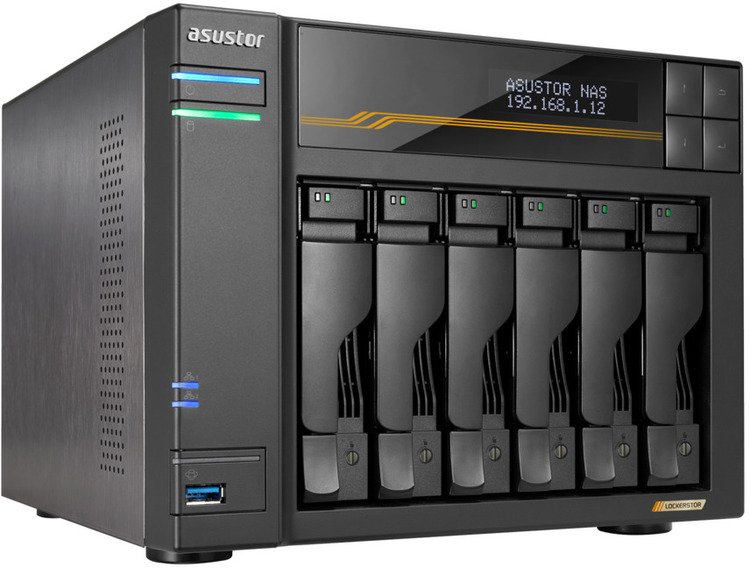

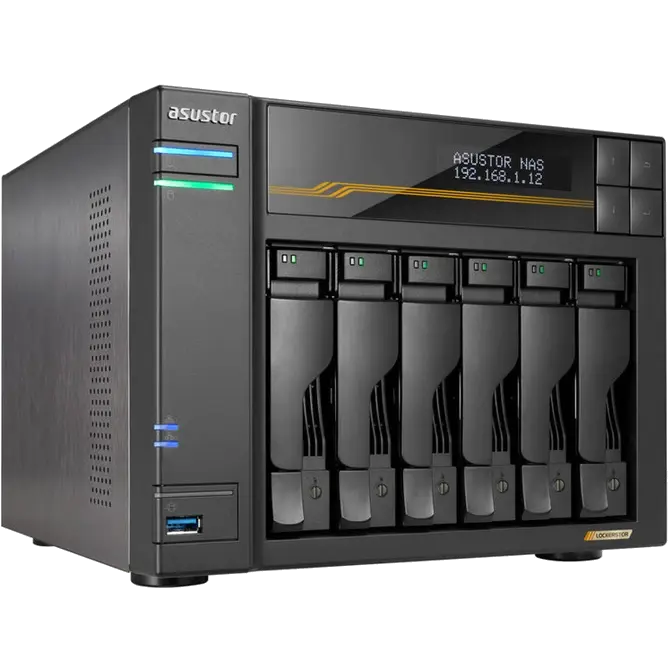

6 Bay Asustor LOCKERSTOR 6 Gen3 10Gb NAS Unit with 4xNVMe Slots


6 Bay Asustor LOCKERSTOR 6 Gen3 10Gb NAS Unit with 4xNVMe Slots

Web ID: 46321

Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz, 3.8 GHz Turbo
16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
Quad M.2 slots for NVMe SSDs Doubled Performance with PCIe 4.0
2x USB4 ports at 40 Gbps
3x USB 3.2 Gen 2 Type-A at 10 Gbps
2x 10-Gigabit Ethernet
2x 5-Gigabit Ethernet
Supports Wake on LAN and Wake on WAN (5 GbE)


Manufacturer Warranty: 3 Year
Manufacturer PN: AS6806T
Manufacturer Website

$2599
 Add to cart
Low Stock
 Compare
 Wish List
 Question

6 bay asustor lockerstor 6 gen3 10gb nas unit with 4xnvme slots

CPU

 CPU Model AMD Ryzen V3C14
  CPU Architecture x64 64-bit
  CPU Frequency Quad-Core 2.3GHz (burst up 3.8 GHz)

Memory

 Memory 16GB ECC DDR5-4800 SO-DIMM Compatibility
  Memory Module Pre-installed 16GB (1x 16GB)
  Total Memory Slots 2
  Memory Expandable up to 64GB Installation Guide
  • Support mixed capacity
  • Supports ECC memory
    • ECC functionality will be disabled if non-ECC memory is installed or mixed with ECC memory
  • 6 bay asustor lockerstor 6 gen3 10gb nas unit with 4xnvme slots
  Flash Memory 8GB eMMC

Storage

 Drive Bays 6
  M.2 Drive Slots 4 Installation Guide
  Compatible Drive Type Compatibility
  • 3.5" SATA HDD
  • 2.5" SATA HDD
  • 2.5" SATA SSD
  • M.2 2280 NVMe
  M.2 PCIe Interface  PCIe 4.0 x1
  Maximum Drive Bays with Expansion Unit 18
  Supports Hot Swappable Drives

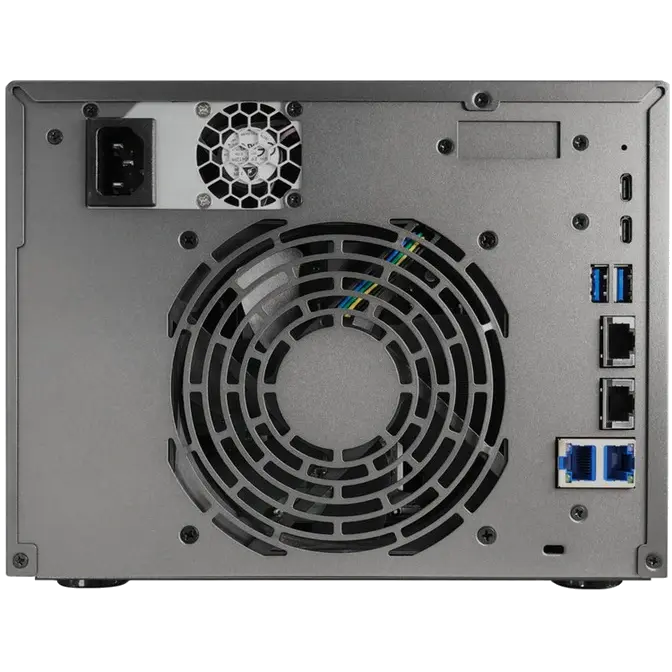

External Ports

 Expansion
  • 3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A
  • 2 x USB 4.0 (40Gbps) Type-C
    • Note. USB 4.0 is backward compatible with 3.2 Gen2 (10Gbps max), USB 3.2 Gen1 (5Gbps) and 2.0
    • Note. The Lockerstor Gen3 and Flashstor Gen2 series are based on AMD's current USB4 driver. AMD USB4 at the moment only supports external storage devices and direct connection between another Lockerstor Gen3 or Flashstor Gen2 series NAS.
  Network
  • 2x 5 Gigabit Ethernet (5G/2.5G/1G/100M)
  • 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)



 PCIe Expansion Slots PCIe 4.0, x4 link, (for optional 10 GbE card) Installation Guide



 Multimedia Output N/A

Others

 System Fan 1x 120mm
  LCD Panel
  Power Supply Unit / Adapter 250W x1
  Input Power Voltage 100V to 240V AC
  Certification FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
  Warranty 3 Years

Operation

 Power Consumption 45 W (Operation);
2.3 W (Sleep Mode)
  Noise Level 18.1dB (HDD idle)
  Operation Temperature 0°C~40°C (32°F~104°F)
  Storage Temperature -20°C~70°C (-4°F~158°F)
  Humidity 5% to 95% RH

Size and Weight

 Size 185.5 (H) x 233 (W) x 230 (D) mm
  Weight 4.4 kg / 9.7 lb Package Contents
