$175
Click & Collect
In stock at Mt Gravatt
Delivery
Avaliable for Fast Dispatch
Buy Now, Pay Later. T&Cs Apply
| Product No. | |
|---|---|
| SST-EX550R-GM | |
| Model (safety certification) | |
| SST-SX0550MCGD-A | |
| Color | |
| Black (lead-free paint) | |
| Max. DC Output | |
| 550W | |
| Power density | |
| 629.9 W/L | |
| Load Range | |
| Output | +3.3V +5V +12V +5VSB -12V |
| Max.(Amps) | 20A 20A 45.8A 3.0A 0.3A |
| Peak (Amps) | / / / / / |
| Min.(Amps) | 0A 0A 0A 0A 0A |
| Range (%) | ±3% ±3% ±3% ±5% ±10% |
| Line Reg.(%) | ±1% ±1% ±1% ±1% ±1% |
| Ripple(mVp-p) | 40mV 40mV 80mV 40mV 80mV |
| Combined +3.3V & +5V | |
| 100W | |
| Combined +12V | |
| 550W | |
| Input Voltage | |
| 90 ~ 264 Vrms | |
| Input Frequency Range | |
| 47Hz ~ 63Hz | |
| PFC | |
| Active PFC(PF>0.9 at full load) | |
| Efficiency | |
| 87% ~ 90% | |
| MTBF | |
| 100,000 hours | |
| Operating temperature | |
| 0°C ~ 40°C | |
| Protection | |
| Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Over Temperature Protection Under Voltage Protection |
|
| Connectors | |

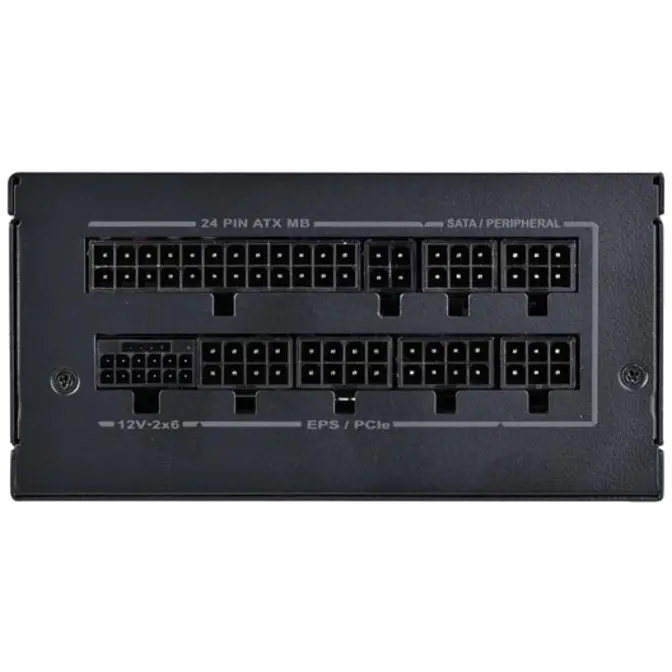

| 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 2 x 8 / 6-Pin PCIe connectors 6 x SATA connector 3 x 4-Pin Peripheral connector |
|
| Cooling System | |
| Single 92mm FDB silent fan | |
| Noise Level | |
| 0 dBA minimum | |
| Certification | |
| 80 PLUS Gold | |
| Form factor | |
| SFX | |
| Dimension | |
| 125mm (W) x 63.5mm (H) x 100mm (D) 4.92” (W) x 2.5” (H) x 5.12” (D) |
|
| Weight | |
| 1.31 kg | |
3 Year
Manufacturers Warranty
