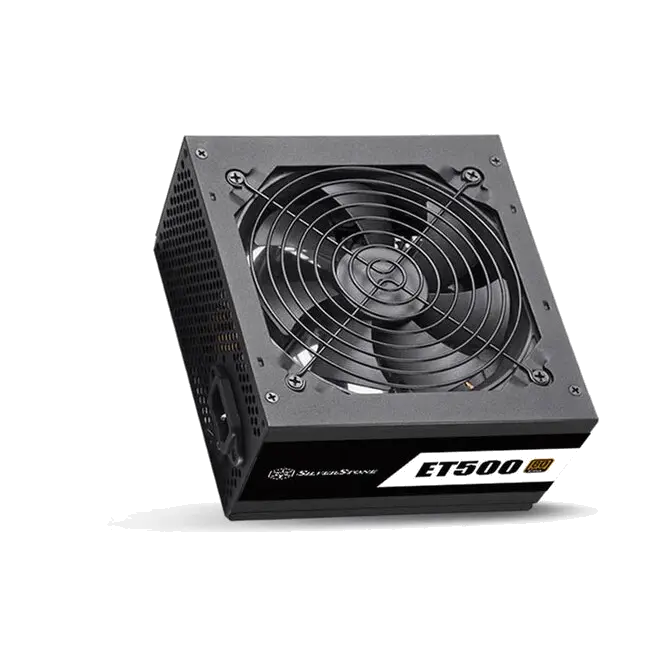

500 Watt SilverStone ET500 Essential Power Supply

Web ID: 28251

High efficiency with 80 PLUS Bronze certification 24/7 continuous power output with 40 operating temperature Class-leading single +12V rail Multiple protection circuitry Silent running 120mm fan with 18 dBA PCI-E 8pin and PCI-E 6pin connectors support Active PFC ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: SST-ET500
Manufacturer Website

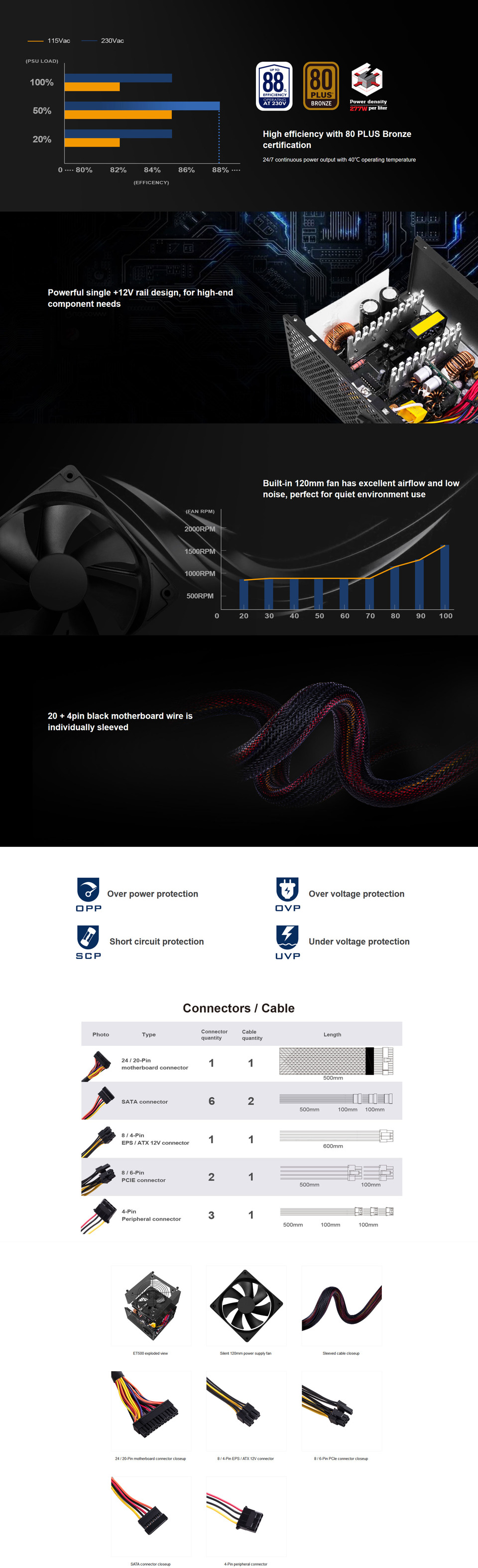

500 watt silverstone et500 essential power supply

Model No.

SST-ET500

Max. DC Output

500W

Power density

277W per liter

Load Range



+3.3V +5V +12V +5VSB -12V

Max.(Amps)

15A 15A 38A 2.5A 0.3A

Peak (Amps)

/ / / / /

Min.(Amps)

2A 2A 6.64A 0.4A 0.05A

Range (%)

±5% ±5% ±5% ±5% ±10%

Line Reg.(%)

±1% ±1% ±1% ±1% ±1%

Ripple(mVp-p)

50mA 50mA 120mV 50mV 120mV
Color

Black(Lead-Free Paint)

Combined +3.3V & +5V

100W

Combined +12V

456W

Input Voltage

100 ~ 264 Vrms

Input Frequency Range

47Hz ~ 64Hz

PFC

Active PFC(PF>0.9 at full load)

Efficiency

82% ~ 85% at 20% ~ 100% loading

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection
Over voltage protection
Under voltage protection
Short circuit protection

Connectors

1 x 24 / 20-Pin motherboard connector(”500mm”)
1 x 8 / 4-Pin EPS / ATX 12V connector(”600mm”)
2 x 8/6-Pin PCIE connector(”500mm/100mm”)
6 x SATA connector("500mm /100mm / 100mm" x 2)
3 x 4-Pin Peripheral connector(”500mm / 100mm / 100mm”)

Cooling System

Single 120mm silent fan

Form factor

ATX

Noise Level

18dBA minimum

Dimension

150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

1.44 Kg

Certification

80 PLUS Bronze

Other

GPU Support list
Compatible with ATX12V v2.4
