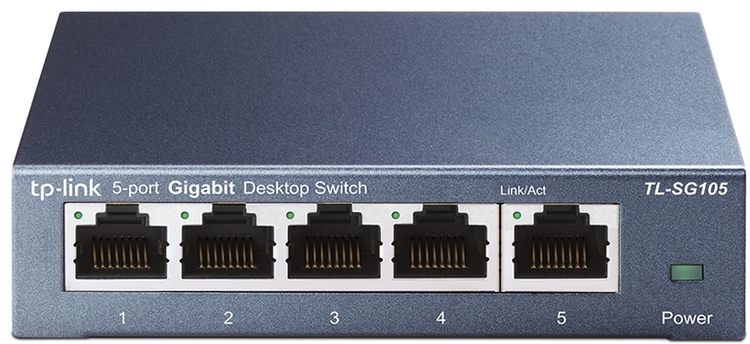

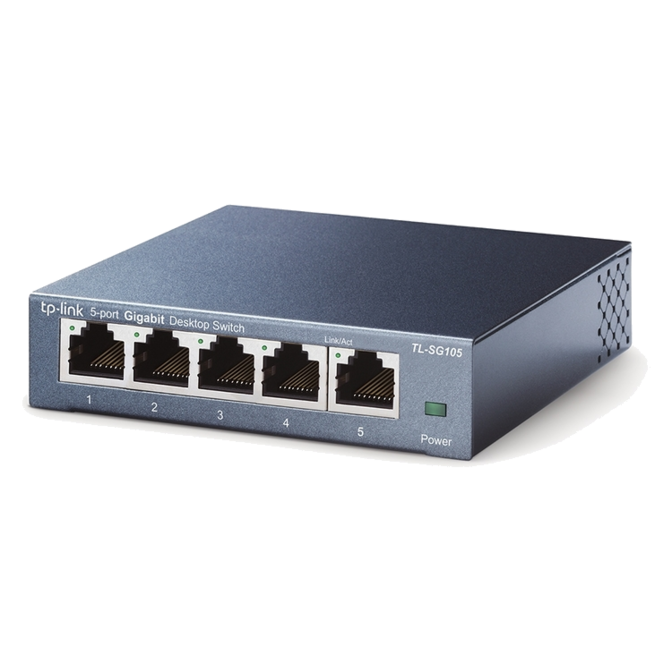

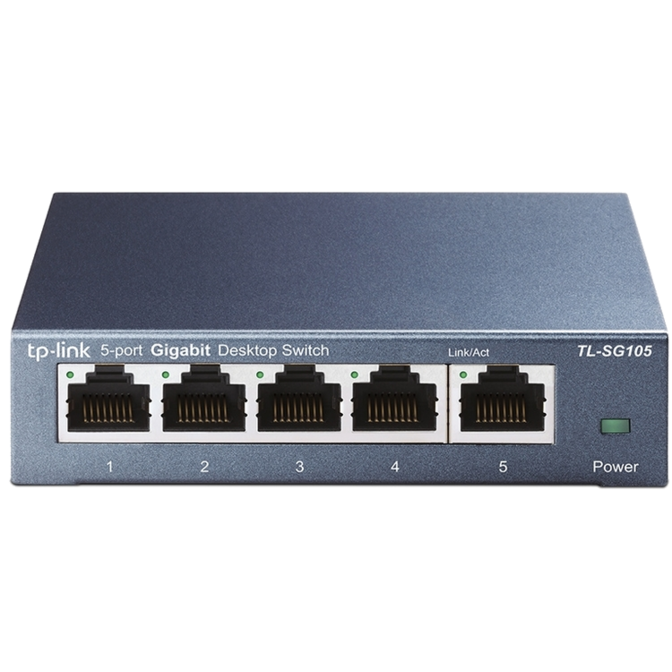

5 Port TP-Link TL-SG105 Gigabit Network Switch
Web ID: 25506
5 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX, Green Ethernet technology saves power consumption, IEEE 802.3x flow control provides reliable data transfer, Steel housing, desktop or wall-mounting design, Support 802.1p/DSCP QoS and IGMP Snooping function, Plug and play, no configuration
Manufacturer Warranty: 3 Year
Manufacturer PN: TL-SG105
What This Product Does
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 84% of the power consumption, making it an eco-friendly solution for your home or office network.
Featured with 5 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 84% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
802.1p and DSCP QoS enable smooth latency-sensitive traffic such as voice and video, and IGMP Snooping optimizes the Multicast data stream.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminate the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
|Standards and Protocols||IEEE 802.3i |
|Interface||5 10/100/1000Mbps, Auto-Negotiation, Auto-MDI/MDIX Ports|
|External Power Supply||External Power Adapter |
(Output: 9VDC / 0.6A)
|LED Indicator||System Power |
Link/Act indicators per port built into each RJ-45 port
|Dimensions ( W x D x H )||3.9 × 3.9 × 1.0 in. |
(100 × 98 × 25 mm)
|Max Power Consumption||2.4W|
|Max Heat Dissipation||8.3 BTU/h|
|Packet Forwarding Rate||7.4Mpps|
|MAC Address Table||2K|
|Packet Buffer Memory||1Mb|
|Advanced Features||Green Technology |
802.3x Flow Control
|Transfer Method||Store and Forward|
|Package Contents||5-Port 10/100/1000Mbps Desktop Switch |
|Environment||Operating Temperature: 0°C~40°C (32°F~104°F) |
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing
