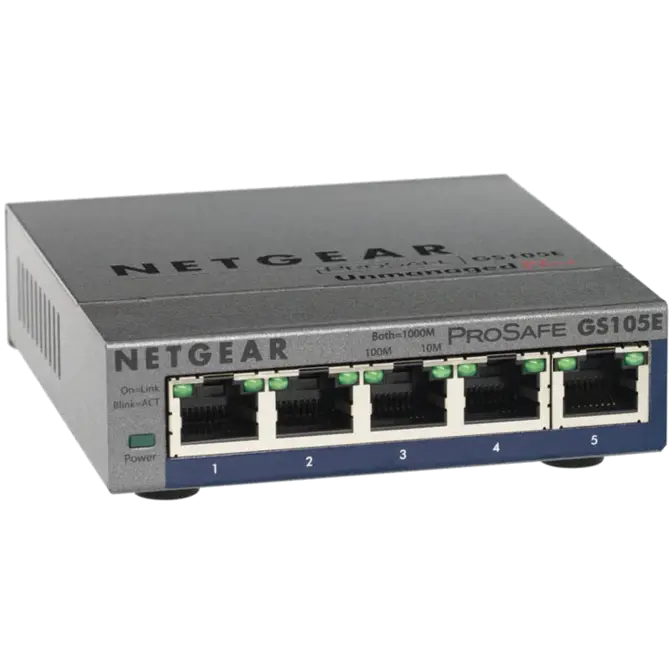

5 Port Netgear GS105E PROSAFE Gigabit Network Switch

Web ID: 11269

Use as a Plug-and-Play switch or use the configuration utility for simple setup. Support network monitoring, traffic prioritization and virtual network groups. Green Ethernet for reduced power consumption ONLY WHILE STOCKS LAST!
Manufacturer PN: GS105E
GTIN: 606449101508
Warranty: 5 Year
Manufacturer Website

Gigabit Power, 10/100 Simplicity

Today's growing businesses are both placing more demands on and relying more on their network. Companies are putting more applications and demands on their Ethernet Infrastructure. Using VoIP phones and IP cameras require more than simple plug-and-play connectivity. Additionally, Internet-based applications such as Hotmail and Google Calendaring have made keeping the network up a business-critical need. However, companies do not necessarily have more money or advanced training to deal with complex managed switches. NETGEAR's new ProSafe Plus Switches meet this growing need by providing easy to use visibility and limited configuration capabilities. To provide more insight into the network behavior, ProSafe Plus Switches offer traffic monitoring for users to observe traffic behavior. Additionally, if there are connectivity issues, these switches offer a cable diagnostic test capability that can identify and even locate problems in the cables. To optimize traffic through the switches, ProSafe Plus Switches offer both port and tag-based prioritization to keep latency-sensitive traffic moving ahead of less critical packets. Also, as a means of improving security or managing collision domains, ProSafe Smart Switches offer VLAN technology. ProSafe Plus Switches offering these monitoring and configuration capabilities at a slight cost premium over un anaged switches, delivering great value to the end user.

GS105E product quick configuration

Additionally, furthering NETGEAR's support of the environment, ProSafe Plus Switches have power-saving Green Ethernet technology. The GS105E switch comes in a sturdy metal case with a fan-less design for silent operation.



Features

GS105E product difference checklist

  • Use as a plug-and-play switch or use the configuration utility for simple setup
  • 5 ports deliver up to 2000 Mbps bi-directional bandwidth on each port
  • Quality of Service (QoS) for prioritizing network traffic
  • Virtual LAN (VLAN) support for network segmentation and security
  • Troubleshoot connection problems via cable test
  • Port mirroring
  • Bandwidth management to avoid network congestions
  • Network traffic monitoring
  • Broadcast storm control

NETGEAR Green

Netgear Green Logo 101pixels X 89 pixels

  • Up to 60% lower power consumption
  • Auto power-down mode saves energy when port is not connected
  • Less transmit power when the cable is short (under 10m)
  • Packaging manufactured with at least 80% recycled materials

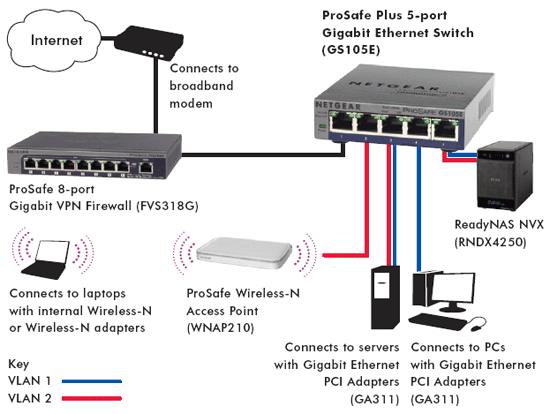

GS105E product network diagram

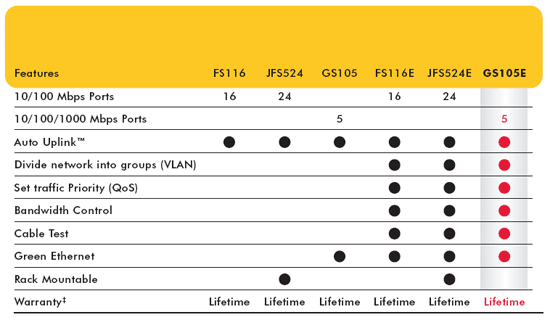

GS105E product comparison chart

Network Ports

  • Five (5) 10/100/1000 Mbps Ethernet RJ-45 ports

Power Adapter

  • 12V, 1.0A power adapter, localized to country of sale
  • Power consumption: 4W

Physical Specifications

  • Dimensions (w x d x h): 94 x 104 x 28 mm (3.7 x 4.1 x 1.1 in)
  • Weight: 0.3 kg (0.66 lb)

Switch Environmental Specifications

  • Operating temperature: 32º to 122º F (0º to 50º C)
  • Operating humidity: 90% maximum relative humidity, non-condensing
  • Acoustic noise level: 0
  • Mean time between failures (MTBF): 5,905,968 hours (~ 674 years)

Status LEDs

  • Power
  • Link, speed, and activity indicators built into each RJ-45 port

Performance

  • MAC address: 4K
  • Bandwidth: 10 Gbps

Standards Compliance

  • IEEE 802.3i 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE802.3x full-duplex flow control
  • Honors IEEE 802.1p priority tags
  • Honors IEEE 802.1Q VLAN tags
  • Compatible with all major network software

Safety Agency Approvals

  • UL listed (UL 1950)/CUL, CB

Electromagnetic Compliance

  • CE mark (commercial), FCC Part 15 Class B, EN 55022 (CISPR 22)Class B, VCCI Class B, C-Tick

Warranty

  • NETGEAR Lifetime Warranty††

ProSupport Service Packs Available

OnCall 24x7, Category 1

  • PMB0331-100 (US)
  • PMB0331 (non-US)

XPressHW, Category 1

  • PRR0331

Package Contents

  • ProSafe 5-port or 8-port Gigabit Ethernet Switch (GS105E)
  • Wall-mount kit
  • 12V, 1.0A power adapter
  • Quick installation guide
  • Installation CD with configuration utility software

NETGEAR Related Products

  • ProSafe 16-port Fast Ethernet Switch (FS116E)
  • ProSafe 24-port Fast Ethernet Switch (JFS524E)

Ordering Information

  • North America: GS105E-100NAS
  • Europe - General: GS105E-100PES
  • UK: GS105E-100UKS
  • Asia: GS105E-100AUS

This product comes with a limited warranty, the acceptance of which is a condition of sale. This product has been tested for quality assurance and this product or its components may have been recycled.

*Basic technical support provided for 90 days from date of purchase.
