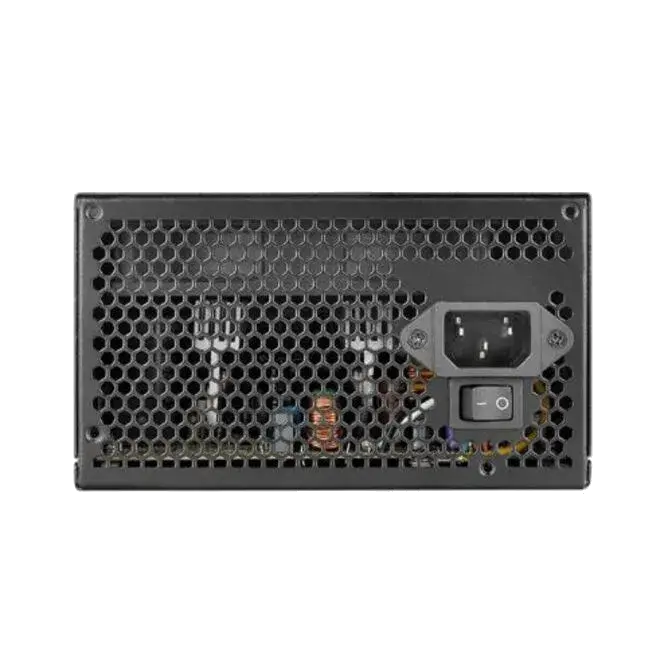

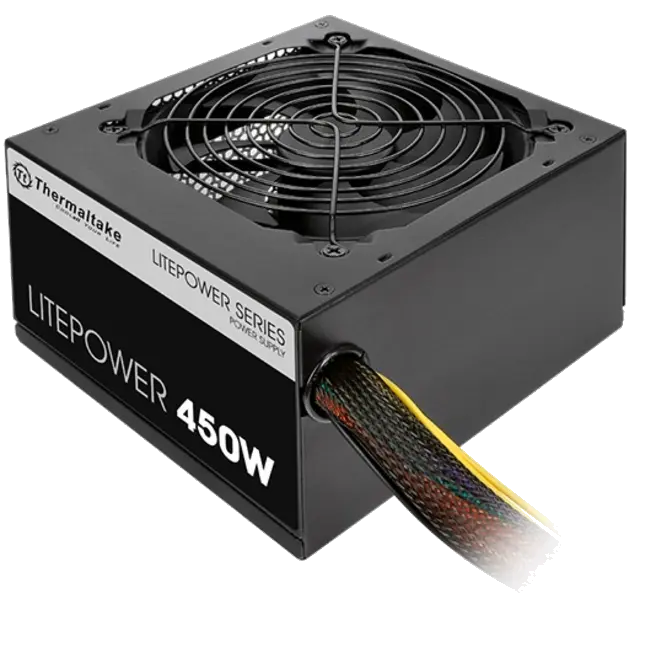

450 Watt Thermaltake Litepower Gen 2 Power Supply PS-LTP-0450NPCNAU-2
Web ID: 29139
Thermaltake Litepower 450W Power Supply, ATX, Ultra quiet 120mm fan, Dedicated +12V rails, Cables with high flexibility, 100,000 hrs minimum MTBF
Manufacturer Warranty: 2 Year
Manufacturer PN: PS-LTP-0450NPCNAU-2
GTIN: 841163064023
Manufacturer Website

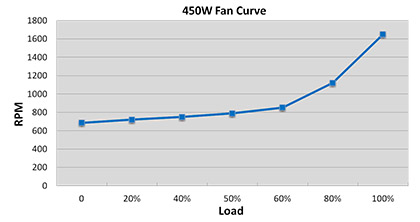

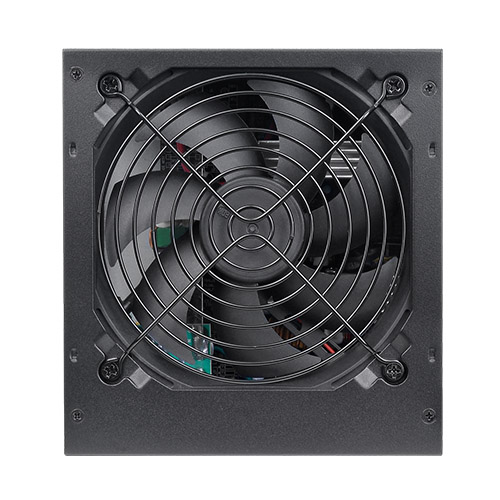

Ultra Quiet Fan
Litepower Series adopts 120mm cooling fan delivers excellent airflow at an exceptionally low noise level.
Cables with High Flexibility

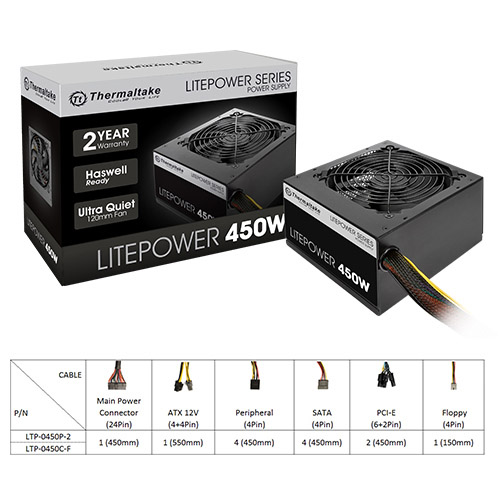

Users are able to properly route the cables in optimal location to prevent airflow blockage. Extra-long EPS/ATX 12V 4+4pin CPU cable (550mm) guarantees sufficient lengths of cables to the build, especially full-tower chassis. Sleeved 24pin cable makes cable management easier, reducing clutter and increasing airflow inside the chassis.

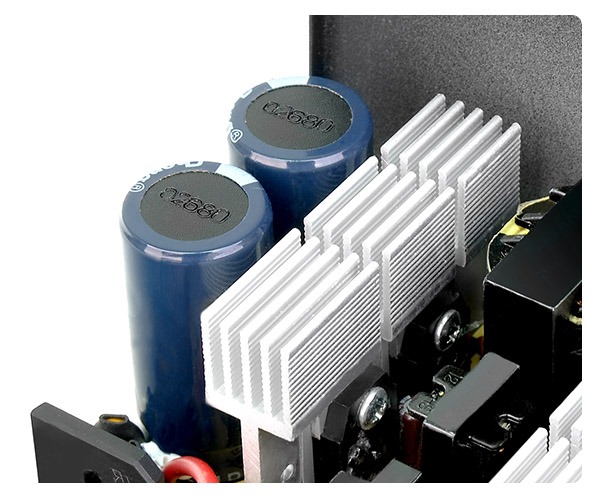

High-Quality Components
High quality components enable non-stop usage with stable and reliable performance, no more capacitor explosion and leakage
Massive and Dedicated +12V Output
Litepower Series is equipped with powerful +12V rails, superior performance under all types of system loading. Please see the output specification below:
| AC INPUT | Input Voltage: 230V | ||||
| DC OUTPUT | +3.3V | +5V | +12V | -12V | +5Vsb |
| Max Output Current | 20A | 14A | 33A | 0.5A | 2.5A |
| Max Output Power | 100W | 396W | 6W | 12.5W | |
| Total Power | 450W | ||||
| P/N | PS-LTP-0450NPCNAU-2 |
|---|---|
| WATTS | 450W |
| RGB FAN | No |
| FORM FACTOR | ATX |
| MODEL | LTP-450AL2NK |
| TYPE | ATX 12V 2.3 |
| MAX. OUTPUT CAPACITY | 450W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm x 86mm x 140mm |
| PFC (POWER FACTOR CORRECTION) | W/Active PFC |
| POWER GOOD SIGNAL | 100-500 msec. |
| HOLD UP TIME | >16msec |
| INPUT CURRENT | 5A |
| INPUT FREQUENCY RANGE | 50Hz - 60Hz |
| INPUT VOLTAGE | 230V |
| OPERATING TEMPERATURE | +5? to +35? |
| OPERATING HUMIDITY | 20% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40? to +55? |
| STORAGE HUMIDITY | 10% to 95%, non-condensing |
| COOLING SYSTEM | 120mm Fan: 1800±10% RPM |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE, TUV SUD, CB, EAC and RCM certified. |
| PCI-E 6+2PIN | 6+2pin PCI-E Connector x 2 |
