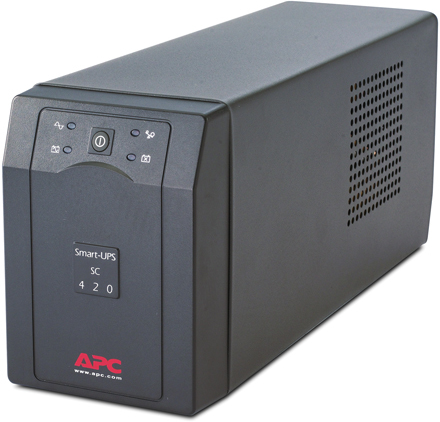

420VA APC SC420I Smart-UPS UPS

Web ID: 18492

APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications ONLY WHILE STOCKS LAST!
Manufacturer PN: SC420I
Warranty: 2 Year
Manufacturer Website

$209

SC420I Features

APC Smart-UPS SC 420VA 230V

APC Smart-UPS SC is ideal for small and medium businesses looking to protect networking equipment and point-of-sale (POS) devices from power disturbances and outages. The Smart-UPS SC features network grade protection, hot swap batteries, and built-in data line protection for worry free uninterruptible power protection for increased availability. Built on the same standards as the award-winning Smart-UPS, Smart-UPS SC provides the basic features and manageability needed to protect entry-level applications

Includes : CD with software , Smart UPS signalling RS-232 cable , User Manual

  • Battery-protected and surge-only outlets

    Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment

Smart-UPS Features & Benefits

Availability
  • Temperature-compensated battery charging

    Prolongs battery life by regulating the charge voltage according to battery temperature.

  • Automatic restart of loads after UPS shutdown

    Automatically starts up the connected equipment upon the return of utility power.

  • Intelligent battery management

    Maximizes battery performance, life, and reliability through intelligent, precision charging.

  • Power conditioning

    Protects connected loads from surges, spikes, lightning, and other power disturbances.

  • Boost and Trim Automatic Voltage Regulation (AVR)

    Gives higher application availability by correcting low and high voltage conditions without using the battery (not available on all models).

  • Automatic self-test

    Periodic battery self-test ensures early detection of a battery that needs to be replaced.

  • Disconnected battery notification

    Warns when a battery is not available to provide backup power.

Marketing Features
  • Peace of mind that comes with full equipment compatibility and reliability of a leader

    Provides pure sine wave output which is recommended by server manufacturers using active power factor corrected (PFC) power supplies. Safety agency tested and approved means that you can deploy Smart-UPS with confidence that they meet or exceed the industry’s most rigorous standards.

  • Low operating and maintenance costs with high efficiency, proven reliability and intelligent battery management

    Patented green operating mode achieves efficiencies over 97%. Smart-ups was the first network UPS to be Energy Star certified. Intelligent battery management, pioneered by APC, maximizes battery performance and life through intelligent, precision temperature compensated charging. Dynamic battery replacement date indicator and automatic self tests insure battery reliability and warn in advance of needing replacement. Convenient, easy to connect, hot-swappable battery modules provide battery replacement without powering down. Designed and manufactured by APC for over 23 years, Smart-UPS is the world’s most trusted network UPS with over 25 million units sold.

  • Save time with easy and convenient remote accessibility

    Network manageable via serial, USB or optional ethernet. Includes Powerchute® Business Edition Software for convenient monitoring and control, safe operating system shutdown and innovative energy management capabilities.

  • Avoids costly power problems by keeping your IT equipment and data safe and available

    Network grade power conditioning protects from damaging surges and disruptive noise. Solid state automatic voltage regulation boosts low input voltage up to 30% and trims high voltage up to 12% without battery operation. Reliable battery back-up capacity to power through outages or gracefully shutdown systems

  • Smarter productivity  with ability to tailor to your specific application needs

    Intuitive LCD interface provides clear information with the ability to configure the UPS locally with easy to use navigation keys. Over 15 different programmable settings including switched outlet group control allow for application specific settings, thresholds and notifications.

Adaptability
  • Adjustable voltage-transfer points

    Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

  • Adjustable voltage sensitivity

    Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Safety
  • Safety-agency approved

    Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.

Manageability
  • Disconnected battery notification

    Warns when a battery is not available to provide backup power.

  • Network manageable

    Provides remote power management of the UPS over the network.

  • USB connectivity

    Provides management of the UPS via a USB port (not available on all models).

  • Serial connectivity

    Provides management of the UPS via a serial port.

  • LED status indicators

    Quickly understand unit and power status with visual indicators.

  • Audible alarms

    Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

Serviceability
  • User-replaceable batteries

    Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)

  • Hot-swappable batteries

    Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

  • Predictive failure notification

    Provides early-warning fault analysis ensuring proactive component replacement.

  • Resettable circuit breakers

    Enables a quick recovery from overload events.

  • Battery failure notification

    Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Output

  • Output power capacity

    260 Watts / 420 VA
  • Max Configurable Power (Watts)

    260 Watts / 420 VA
  • Nominal Output Voltage

    230V
  • Output Voltage Distortion

    Less than 5% at full load
  • Output Frequency (sync to mains)

    47 - 53 Hz for 50 Hz nominal, 57 - 63 Hz for 60 Hz nominal
  • Topology

    Line Interactive
  • Output Connections

    (3) IEC 320 C13 (Battery Backup)

    (1) IEC 320 C13 (selector_surgetitle)

  • Transfer Time

    2ms typical

Input

  • Nominal Input Voltage

    230V
  • Input frequency

    50/60 Hz +/- 3 Hz (auto sensing)
  • Input Connections

    IEC-320 C14
  • Input voltage range for main operations

    195 - 265 V

Batteries & Runtime

Communications & Management

  • Interface Port(s)

    DB-9 RS-232
  • Control panel

    LED status display with On Line : On Battery : Replace Battery and Overload indicators
  • Audible Alarm

    Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
  • Emergency Power Off (EPO)

    N/A

Surge Protection and Filtering

  • Surge energy rating

    320 Joules
  • Data Line Protection

    RJ-45 Modem/Fax/DSL/10-100 Base-T protection
  • Filtering

    Full time multi-pole noise filtering : 0.7% IEEE surge let-through : zero clamping response time : meets UL 1449

Physical

  • Maximum Height

    168 mm , 16.8 cm
  • Maximum Width

    119 mm , 11.9 cm
  • Maximum Depth

    368 mm , 36.8 cm
  • Net Weight

    9.09 kg
  • Shipping weight

    10.23 kg
  • Shipping Height

    318 mm , 31.8 cm
  • Shipping Width

    262 mm , 26.2 cm
  • Shipping Depth

    508 mm , 50.8 cm
  • Color

    Grey
  • Units per Pallet

    12.0

Environmental

  • Operating Environment

    0 - 40 °C
  • Operating Relative Humidity

    0 - 95 %
  • Operating Elevation

    0-3000 meters
  • Storage Temperature

    -15 - 45 °C
  • Storage Relative Humidity

    0 - 95 %
  • Storage Elevation

    0-15000 meters
  • Audible noise at 1 meter from surface of unit

    45.0 dBA
  • Online thermal dissipation

    50.0 BTU/hr

Conformance

  • Approvals

    CE, GOST, VCCI, VDE
  • Standard warranty

    2 years repair or replace

Sustainable Offer Status

  • RoHS

    Compliant
  • REACH

    REACH: Contains No SVHCs
  • PEP

    Available in Documentation tab
  • EOLI

    Available in Documentation tab
  • ts_other_compliance_info

    China RoHS
