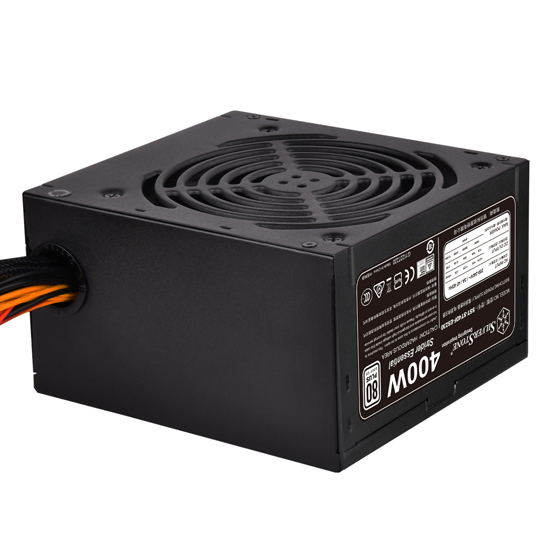

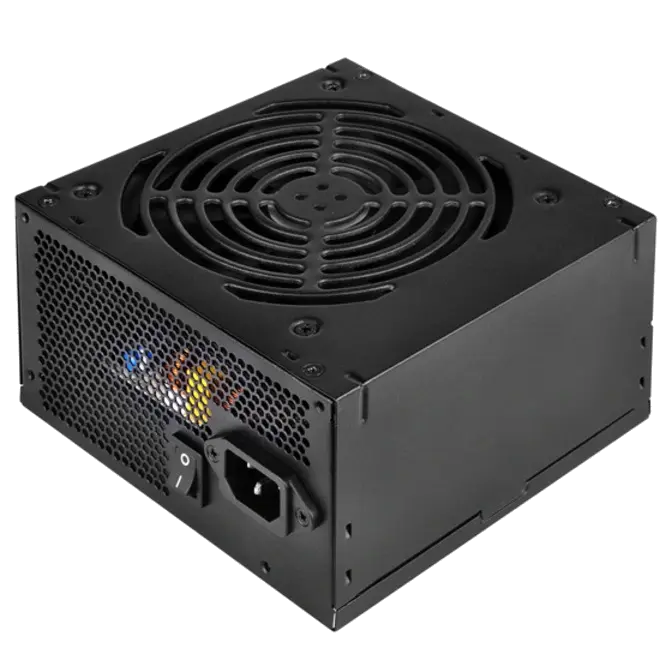

400 Watt SilverStone ST40F-ES230 Essential Power Supply

Web ID: 26341

400W, ATX, 230V only, single +12V rails with 30A output, Silent 120mmFan with 18dBA, efficiency 80Plus 230V EU certification, fixed cable, 140mm depth, 2xPCIE-8/6pin.
Manufacturer Warranty: 3 Year
Manufacturer PN: SST-ST40F-ES230
GTIN: 844761013387

400 watt silverstone st40f-es230 essential power supply

? High efficiency with 80 PLUS certification

? 24/7 continuous power output with 40?J operating temperature

? Class-leading single +12V rail

? Active PFC Circuitry

? PCI-E 8pin and PCI-E 6pin connector support

? Silent running 120mm fan with 18dBA

400 watt silverstone st40f-es230 essential power supply   400 watt silverstone st40f-es230 essential power supply

The Strider Essential series is a line of power supplies designed with high affordability and great performance. They have 80 PLUS certification with maximum efficiency of up to 85% under 230V. Equipped with powerful single +12V rail and quiet running fan, they also provide stable performance with minimum noise. For longevity, they are based on proven design and built with quality components to support 24/7 operation at up to 40 degrees Celsius. Even high-end systems with powerful graphics cards can be powered easily by Strider Essential PSUs standard 8pin/6pin PCI-E connectors, making them an outstanding choice for those seeking best value and performance for their money.



Remark


Model No.
SST-ST40F-ES230
Max. DC Output
400W
Power density
221W per liter
Load Range
?
+3.3V +5V +12V +5VSB -12V
Max.(Amps)
17A 16A 30A 2.5A 0.3A
Peak (Amps)
/ / / / /
Min.(Amps)
0A 0A 0A 0A 0A
Range (%)
??5% ??5% ??5% ??5% ??10%
Line Reg.(%)
??1% ??1% ??1% ??1% ??1%
Ripple(mVp-p)
50mV 50mV 120mV 50mV 120mV
Color
Black?]Lead-Free Paint?^
Combined +3.3V & +5V
100W
Combined +12V
360W
Input Voltage
180V~264V
Input Frequency Range
47Hz~63Hz
PFC
Active PFC?]PF>0.9 at full load?^
Efficiency
82% ~ 85% at 20% ~ 100% loading
MTBF
100,000 hours
Operating temperature
0?XC ~ 40?XC
Protection
Over Power Protection
Over Voltage Protection
Short Circuit Protection
Connectors
1 x 24 / 20-Pin motherboard connector?]500mm?^
1 x 8 / 4-Pin EPS / ATX 12V connector?]750mm?^
2 x 8 / 6-Pin PCIE connector?]"500mm / 150mm" x 2?^
4 x SATA connector?]"500mm / 150mm" x 2?^
2 x 4-Pin Peripheral connector?]500mm / 150mm / 150mm / 150mm?^
1 x 4-Pin Peripheral connector?]500mm / 150mm / 150mm?^?
1 x 4-Pin Floppy connector?]500mm / 150mm / 150mm / 150mm?^
Cooling System
Single 120mm silent fan
Form factor
Noise Level
18 dBA minimum
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
5.91" (W) x 3.39" (H) x 5.51" (D)
Weight
1.26 kg
Certification
80 PLUS
Other
GPU Support list?
Compatible with ATX12V v2.4
?? Specifications presented on this page contains most recent revisions and may differ from those printed on retail boxes or manuals.
