| Mechanical | |
|---|---|
| Dimensions | 196 x 93 x 32 mm ( 7.7 x 3.7 x 1.3") |
| Weight | 269 g (9.5 oz) |
| Enclosure material | White polycarbonate |
| Hardware | |

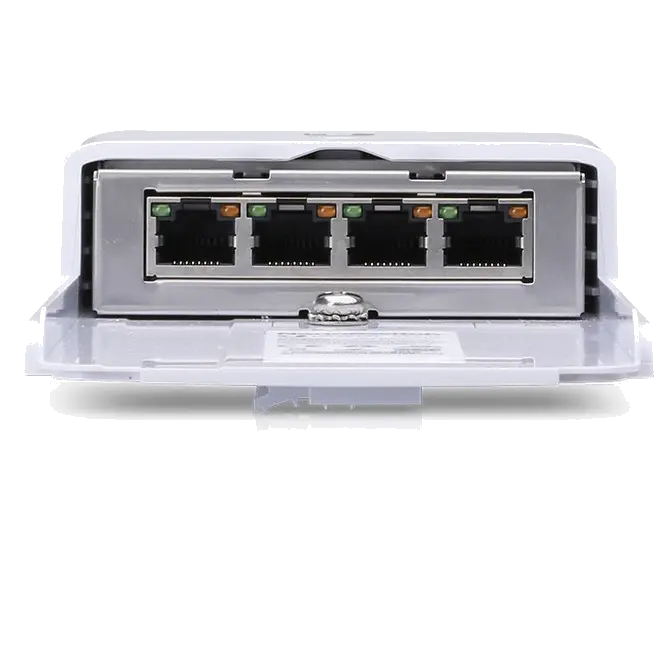

| Networking interface | (4) GbE RJ45 ports [(1) PoE-in, (3) PoE passthrough] |
| Total non-blocking line rate | 4 Gbps |
| Power method | Passive 24V, 2-pair PoE-in |
| Supported voltage range | 21.6–30V |
| Power consumption | Typical: 1.5W Max.: 30W |
| Power supply | POE-24-30W-G PoE adapter (Not included) |
| ESD/EMP protection | Air/contact: ± 24 kV |
| Passive PoE Max. Wattage per port | 24V, 2-pair, 1A per port (24W) |
| Total passive PoE Max. Wattaget | 24V, 2-pair, 1A for 3 ports (30W) |
| LEDs | Speed/Link/Activity (All ports) |
| Ambient operating temperature | -30 to 70° C (-22 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
