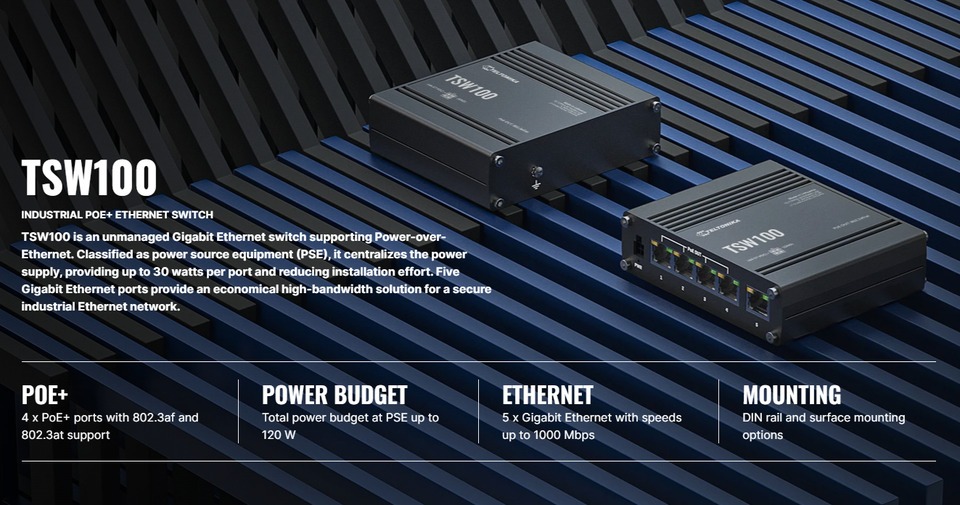

Ethernet

• ETH

  5 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

• IEEE 802.3 series standards

  802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

INDUSTRIAL PROTOCOLS

• Profinet

  Profinet Class A conformance (available with optional order code)

POE OUT

• PoE+ ports

  Port 1 - 4

• PoE standards

  IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A (Order code: TSW100 *1****)

  IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative B (Order code: TSW100 *0****)

• PoE Max Power per Port (at PSE)

  30 W

• PoE Power Budget (at PSE)

  120 W

Performance Specifications

• Bandwidth (Non-blocking)

  10 Gbps

• Packer buffer

  128 KB

• MAC address table size

  2K entries

• Jumbo frame support

  9216 bytes

Power

• Connector

  4-pin industrial DC power socket

• Input voltage range

  7 – 57 VDC

• PoE-Out input voltage range

  44 – 57 VDC

• Power consumption

  Idle: 2 W / Max (no PoE): 9 W / PoE Max: 129 W

Physical Interfaces

• Ethernet

  5 x RJ45 ports, 10/100/1000 Mbps

• Status LEDs

  1 x Power LED, 10 x ETH status LEDs

• Power

  1 x 4-pin power connector

• Other


  1 x Grounding screw

Physical Specification

• Casing material

  Full aluminum housing

• Dimensions (W x H x D)

  115 x 32.2 x 101.2 mm

• Weight

  350 g

• Mounting options

  DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

• Operating temperature

  -40 °C to 75 °C

• Operating humidity

  5% to 95% non-condensing

• Ingress Protection Rating

  IP30

Regulatory & Type Approvals

• Regulatory

  CE, UKCA, EAC, UCRF, CITC, ANRT, FCC, IC, NOM, Anatel, CB, E-mark

EMC Emissions & Immunity

• Standards

  EN 55032:2015

  EN 55035:2017

  EN 301 489-1 V2.2.3

• ESD

  EN 61000-4-2:2009

• Radiated Immunity

  EN IEC 61000-4-3:2006 + A1:2008 + A2:2010

• EFT

  EN 61000-4-4:2012

• Surge Immunity (AC Mains Power Port)

  EN 61000-4-5:2014

• CS

  EN 61000-4-6:2014

• DIP

  EN 61000-4-11:2004

Safety

• Standards

  IEC 62368-1:2018

  EN IEC 62368-1:2020+A11:2020
