4 Bay Synology RackStation RS822RP+ NAS Unit

Web ID: 33711

Synology RackStation RS822RP+ is a 4-bay rackmount NAS enclosed in a compact 1U chassis. Running the powerful Synology DiskStation Manager (DSM) operating system, it is ideal for data backup, sharing, and synchronization. Its small size, stable performance, and storage scalability makes it suitable for branch offices and small and medium-sized businesses with ever increasing data management needs.
Manufacturer Warranty: 3 Year
Manufacturer PN: RS822RP+
GTIN: 846504004751
Manufacturer Website

$2499

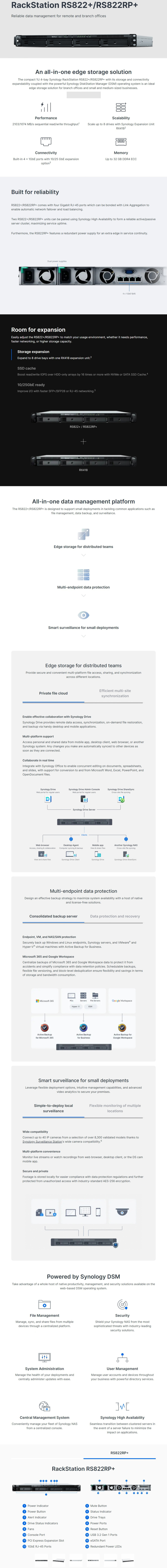

4 bay synology rackstation rs822rp nas unit



Hardware Specifications
CPU
CPU
CPU Model AMD Ryzen V1500B
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 4-core 2.2 GHz
  Hardware Encryption Engine (AES-NI)
Memory
Memory
System Memory 2 GB DDR4 ECC SODIMM
  Memory Module Pre-installed 2 GB (2 GB x 1)
  Total Memory Slots 2
  Maximum Memory Capacity 32 GB (16 GB x 2)
  Notes
  • Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
  • Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.
  • For more information about the recommended memory configurations, please check the Hardware Installation Guide of your Synology product.
Storage
Storage
Drive Bays 4
  Maximum Drive Bays with Expansion Unit 8 (RX418 x 1)
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  Hot Swappable Drive
  Notes
  • "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.
  • The maximum raw capacity is not limited by the maximum single volume size. Synology NAS models may utilize capacities over the maximum single volume size as long as each volume created is below the limit. (Learn more)
External Ports
External Ports
RJ-45 1GbE LAN Port* 4 (with Link Aggregation / Failover support)
  USB 3.2 Gen 1 Port* 2
  eSATA Port 1
  Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.
PCIe
PCIe
PCIe Expansion 1 x Gen3 x8 slot (x4 link)
File System
File System
Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT
Appearance
Appearance
Form Factor (RU) 1U
  Size (Height x Width x Depth) RS822+ : 44 mm x 480 mm x 492.6 mm
RS822RP+ : 44 mm x 480 mm x 518.6 mm
  Weight RS822+ : 6.4 kg
RS822RP+ : 8.0 kg
  Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
  Notes The rail kit is sold separately
Others
Others
System Fan RS822+ : 40 mm x 40 mm x 3 pcs
RS822RP+ : 40 mm x 40 mm x 2 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Power Recovery
  Noise Level* RS822+ : 27.4 dB(A)
RS822RP+ : 38.8 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 150 W
  Redundant Power Supply RS822+ : -
RS822RP+ :
  AC Input Power Voltage 100 V to 240 V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption* 47.69 W (Access)
16.7 W (HDD Hibernation)
  British Thermal Unit 162.83 BTU/hr (Access)
57.02 BTU/hr (HDD Hibernation)
  Notes
  • For more information on how power consumption is measured, refer to this article.
  • Noise testing was conducted with the Synology system fully installed with Synology SATA HDDs and in an idle stae. Two G.R.A.S. Type 40AE microphones are placed at a 1 m distance from the front and rear of the device. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75°C; Humidity: 58.2-61.8%
Temperature
Temperature
Operating Temperature 0°C to 35°C (32°F to 95°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH
Certification
Certification
  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC
  • UL
Warranty
Warranty
3-year hardware warranty, extendable to 5-year coverage - EW202
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)
Environment
Environment
RoHS Compliant
Packaging Content
Packaging Content
RS822+ :
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1

RS822RP+ :
  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 2
  • Quick Installation Guide X 1
Optional Accessories
Optional Accessories
  Notes
  • Certain items may not be available in your location. Please contact your local distributors for more information.
  • All memory modules will operate at the maximum frequency specified by the CPU manufacturer.
DSM Specifications
Maximum Single Volume Size* 108 TB
  Maximum Internal Volume Number 64
  SSD Read / Write Cache (White Paper)
  SSD TRIM
  Supported RAID Type
  • Synology Hybrid RAID
  • Basic
  • JBOD
  • RAID 0
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  RAID Migration
  • Basic to RAID 1
  • Basic to RAID 5
  • RAID 1 to RAID 5
  • RAID 5 to RAID 6
  Volume Expansion with Larger HDDs
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6
  • RAID 10
  Volume Expansion by Adding a HDD
  • Synology Hybrid RAID
  • JBOD
  • RAID 5
  • RAID 6 (with Expansion Unit)
  Global Hot Spare Supported RAID Type
  • Synology Hybrid RAID
  • RAID 1
  • RAID 5
  • RAID 6 (with Expansion Unit)
  • RAID 10 (with Expansion Unit)
  Notes
  • Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored.
  • Each internal volume (may consist of multiple drives) is expandable up to 108TB.
File Protocol SMB/AFP/NFS/FTP/WebDAV
  Maximum Concurrent SMB/AFP/FTP Connections 500
  Maximum Concurrent SMB/AFP/FTP Connections (with RAM expansion) 2,000
  Windows Access Control List (ACL) Integration
  NFS Kerberos Authentication
  Notes
  • Regarding data concerning tests with RAM expansion, all memory slots are installed with the maximum capacity of supported RAM.
  • The testing standard was based on the maximum number of concurrent connections supported by this model. During the testing, 25% of the connections were used to transfer files concurrently. The transfer process guaranteed that the connections were not interrupted; the minimum transfer speed was not guaranteed.
Maximum Local User Accounts 2,048
  Maximum Local Groups 256
  Maximum Shared Folder 512
  Maximum Shared Folder Sync Tasks 16
Hybrid Share Folder Number 10
  Notes For more supported details, please check this article.
Synology High Availability

Syslog Events per Second 800
Virtualization
Virtualization
VMware vSphere with VAAI
  Windows Server 2016
  Windows Server 2019
  Citrix Ready
  OpenStack
Networking Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
  Supported Browsers
  • Google Chrome
  • Firefox
  • Microsoft Edge
  • Safari
  Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, ???????, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Ceský, ???????, ???, ???, ????, ????
  Notes For an updated list of supported browser versions, check the DSM Technical Specifications.
Antivirus by McAfee (Trial)
Antivirus by McAfee (Trial)



Maximum Number of Concurrent Users 150
  Notes
  • Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds.
  • When applicable, systems are tested configured with maximum memory and set to allow the maximum number of connections.
Document Viewer
Document Viewer

Download Station
Download Station

Download Station
Maximum Concurrent Download Tasks 80

Maximum iSCSI Target Number 128
  Maximum LUN 256
  LUN Clone/Snapshot, Windows ODX

Free Email Accounts 5 (Licenses required for additional accounts)
  Maximum Number of Concurrent Users 150
  Maximum Server Performance 1,484,000 emails per day, approx. 45GB
  Notes
  • Models with more than 4 bays were installed with two SSDs for SSD cache.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • The performance of the mail system will slightly decrease in high-availability mode due to data synchronization between the two servers.
  • Functions that were enabled in all of the tests above: anti-spam, anti-virus, DNSBL, greylist, content scan, full-text search (English only).

DLNA Compliance

Facial Recognition

Maximum Snapshots per Shared Folder 1,024
  Maximum of System Snapshots 65,536

Maximum IP cam (Licenses required) 40 (including 2 Free License) (see all supported IP cameras)
  Total FPS (H.264) 1200 FPS @ 720p (1280x720)
800 FPS @ 1080p (1920x1080)
350 FPS @ 3M (2048x1536)
280 FPS @ 5M (2591x1944)
170 FPS @ 4K (3840x2160)
  Total FPS (H.265) 1200 FPS @ 720p (1280x720)
1200 FPS @ 1080p (1920x1080)
600 FPS @ 3M (2048x1536)
480 FPS @ 5M (2591x1944)
200 FPS @ 4K (3840x2160)
  Notes
  • Maximum IP cameras and FPS figures are tested with the device fully populated with drives and under a continuous recording setup.
  • Actual system capabilities may differ depending on system configuration, drive performance, number of features enabled, and if additional workloads are present.

Recommended Number of Concurrent Sync Clients 550 (the number of connections that can be maintained when the recommended number of hosted files was reached)
  Recommended Number of Hosted Files 50,000,000 (applies to files indexed or hosted by Synology Drive. For file access through other standard protocols, refer to the File Services section above)
  Notes
  • Exceeding the recommended numbers above will not block application operations, but may result in longer response time.
  • Utilizing SSD cache can significantly improve performance.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Maximum Users 1,800
  Notes
  • Multiple files were opened for testing and each file was edited by 30 users simultaneously.
  • For tested models with expandable memory, the maximum amount of RAM was installed.
  • Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM


Recommended Virtual Machine Instances 8 (Learn more)
  Recommended Virtual DSM Number (Licenses required) 8 (including 1 Free License)
  Notes The specifications vary depending on system configuration and memory size.

Maximum Connections 40
