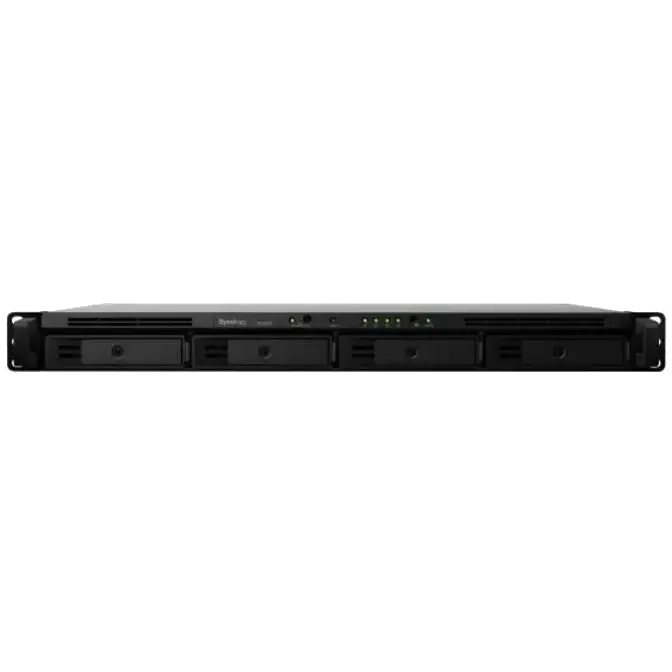

4 Bay Synology RackStation RS422+ NAS Unit

Web ID: 33701

Synology RackStation RS422+ is a 4-bay rackmount NAS enclosed in a compact 1U chassis. Powered by the powerful Synology DiskStation Manager (DSM) operating system, it offers an affordable all-in- one solution for data sharing, synchronization, and backup to small businesses and home lab owners looking to meet their daily data management needs. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: RS422+
GTIN: 846504004478
Manufacturer Website

$1349

CPU

CPU Model AMD Ryzen R1600
  CPU Quantity 1
  CPU Architecture 64-bit
  CPU Frequency 2-core 2.6 (base) / 3.1 (turbo) GHz
  Hardware Encryption Engine (AES-NI)

Memory

System Memory 2 GB DDR4 ECC
  Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.

Storage

Drive Bays 4
  Compatible Drive Type* (See all supported drives)
  • 3.5" SATA HDD
  • 2.5" SATA SSD
  Hot Swappable Drive
  Notes "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

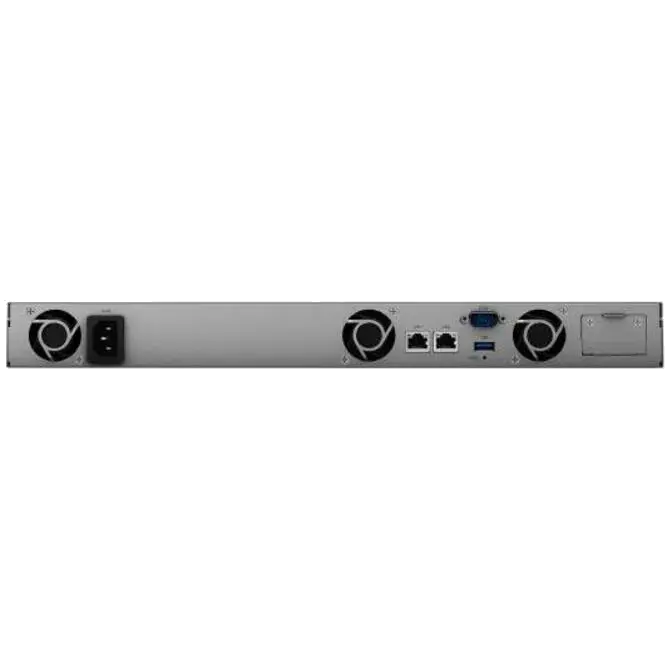

External Ports

RJ-45 1GbE LAN Port* 2 (with Link Aggregation / Failover support)
  USB 3.2 Gen 1 Port* 1
  Notes
  • This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
  • The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIe

PCIe Expansion 1 x Gen3 x2 network upgrade slot

File System

Internal Drives
  • Btrfs
  • EXT4
  External Drives
  • Btrfs
  • EXT4
  • EXT3
  • FAT
  • NTFS
  • HFS+
  • exFAT

Appearance

Form Factor (RU) 1U
  Size (Height x Width x Depth) 44 mm x 478 mm x 327.5 mm
  Weight 4.38 kg
  Rack Installation Support*
  • 4-post 19" rack (Synology Rail Kit - RKM114/RKS-02)
  • 2-post 19" rack (direct mounting)
  Notes The rail kit is sold separately

Others

System Fan 40 mm x 40 mm x 3 pcs
  Fan Speed Mode
  • Full-Speed Mode
  • Cool Mode
  • Quiet Mode
  Power Recovery
  Noise Level* 28.5 dB(A)
  Scheduled Power On / Off
  Wake on LAN / WAN
  Power Supply Unit / Adapter 100 W
  AC Input Power Voltage 100V to 240V AC
  Power Frequency 50/60 Hz, Single Phase
  Power Consumption* 37.93 W (Access)
13.43 W (HDD Hibernation)
  British Thermal Unit 129.42 BTU/hr (Access)
45.83 BTU/hr (HDD Hibernation)
  Notes For more information on how power consumption is measured, refer to this article.

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)
  Storage Temperature -20°C to 60°C (-5°F to 140°F)
  Relative Humidity 5% to 95% RH

Certification

  • FCC
  • CE
  • BSMI
  • VCCI
  • RCM
  • UKCA
  • EAC
  • CCC
  • KC

Warranty

3-year hardware warranty, extendable to 5-year coverage - EW201
  Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

RoHS Compliant

Packaging Content

  • Main Unit X 1
  • Accessory Pack X 1
  • AC Power Cord X 1
  • Quick Installation Guide X 1

Optional Accessories
