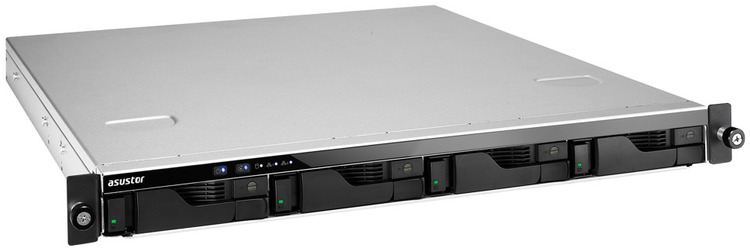

4 Bay Asustor LOCKERSTOR 4RS 2.5Gb 1U Rackmount NAS Unit
Web ID: 46324
Intel Atom C3538 2.1GHz Quad-Core CPU
8 GB DDR4-2133, 128 GB maximum
Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports. Can provide up to 5 gbps when aggregated.
Supports Wake-on-LAN and Wake-on-WAN
Complete iSCSI/IP-SAN and NFS support, Supports VMware, Citrix and Hyper-V, Supports virtual machines and Docker applications
Supports ACL and AD. Improves business application efficiency.
PCIe slot for 10-Gigabit Ethernet card
Manufacturer Warranty: 3 Year
Manufacturer PN: AS6504RS
GTIN: 887372138384
Manufacturer Website
$1599
CPU |
CPU Model | Intel ATOM C3538 |
|---|---|---|
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.1GHz | |
Memory |
Memory | 8GB SO-DIMM DDR4 Compatibility |
| Memory Module Pre-installed | 8GB (1x 8GB) | |
| Total Memory Slots | 4 | |
| Memory Expandable up to | 128GB (4x 32GB) Installation Guide
|
|
| Flash Memory | 8GB eMMC | |
Storage |
Drive Bays | 4 |
| Compatible Drive Type Compatibility |
|
|
| Maximum Drive Bays with Expansion Unit | 20 | |
| Supports Hot Swappable Drives | ||
External Ports |
Expansion | 4x USB 3.2 Gen 1 |
| Network |
|
|
|
|
PCIe Expansion Slots | PCIe 3.0 x8 slot (black, x4 link) |
|
|
Multimedia Output | N/A |
Others |
System Fan | 2x 40mm |
| Power Supply Unit / Adapter | AS6504RS: 250W x1 AS6504RD: 250W x2 AS6504RS x1 / AS6504RD x2 |
|
| Input Power Voltage | 100V to 240V AC | |
| Redundant power supply | ||
| Service LED Indicator | ||
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS | |
| Warranty | 3 Years | |
Operation |
Power Consumption | AS6504RS: 47.7W (Operation) 28.4W (Disk Hibernation); AS6504RD: 65W (Operation) 42.4W (Disk Hibernation); |
| Noise Level | - | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -20°C~70°C (-4°F~158°F) | |
| Humidity | 5% to 95% RH | |
Size and Weight |
Size | 44(H) x 439(W) x 515(D) mm |
| Weight | AS6504RS: 7.85kg / 17.27 lbs; AS6504RD: 9.3 kg / 20.46 lbs Package Contents |
