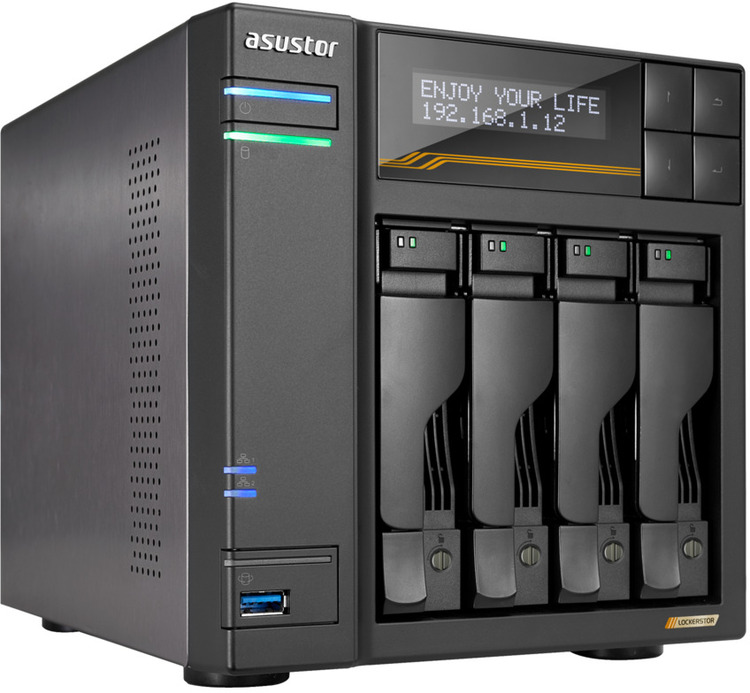

4 Bay Asustor LOCKERSTOR 4 Gen3 10Gb NAS Unit with 4 x M.2 NVME Slots

4 Bay Asustor LOCKERSTOR 4 Gen3 10Gb NAS Unit with 4 x M.2 NVME Slots

Web ID: 45300

Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz, 3.8 GHz Turbo
16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
Quad M.2 slots for NVMe SSDs Doubled Performance with PCIe 4.0
2x USB4 ports at 40 Gbps
3x USB 3.2 Gen 2 Type-A at 10 Gbps
2x 10-Gigabit Ethernet
2x 5-Gigabit Ethernet
Supports Wake on LAN and Wake on WAN (5 GbE)

Manufacturer Warranty: 3 Year
Manufacturer PN: AS6804T
GTIN: 887372001657
Manufacturer Website

$2175

Add to cart

Low Stock

Compare

Wish List

Question

4 bay asustor lockerstor 4 gen3 10gb nas unit with 4 x m2 nvme slots

Hardware Specifications
CPU	CPU Model	AMD Ryzen V3C14
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.3GHz (burst up 3.8 GHz)
Memory	Memory	16GB ECC DDR5-4800 SO-DIMM Compatibility
	Memory Module Pre-installed	16GB (1x 16GB)
	Total Memory Slots	2
	Memory Expandable up to	64GB Installation Guide Support mixed capacity Supports ECC memory ECC functionality will be disabled if non-ECC memory is installed or mixed with ECC memory
	Flash Memory	8GB eMMC
Storage	Drive Bays	4
	M.2 Drive Slots	4 Installation Guide
	Compatible Drive Type Compatibility	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe
	M.2 PCIe Interface	PCIe 4.0 x1
	Maximum Drive Bays with Expansion Unit	16
	Supports Hot Swappable Drives
External Ports	Expansion	3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A 2 x USB 4.0 (40Gbps) Type-C Note. USB 4.0 is backward compatible with 3.2 Gen2 (10Gbps max), USB 3.2 Gen1 (5Gbps) and 2.0 Note. The Lockerstor Gen3 and Flashstor Gen2 series are based on AMD's current USB4 driver. AMD USB4 at the moment only supports external storage devices and direct connection between another Lockerstor Gen3 or Flashstor Gen2 series NAS.
	Network	2x 5 Gigabit Ethernet (5G/2.5G/1G/100M) 2x 10 Gigabit Ethernet (10G/2.5G/1G/100M)
	PCIe Expansion Slots	PCIe 4.0, x4 link, (for optional 10 GbE card) Installation Guide
	Multimedia Output	N/A
Others	System Fan	1x 120mm
	LCD Panel
	Power Supply Unit / Adapter	90W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
	Warranty	3 Years
Operation	Power Consumption	34 W (Operation); 23 W (Sleep Mode)
	Noise Level	17.6dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	185.5(H) x 170(W) x 230(D) mm
	Weight	3.2 kg / 7.06 lb

Software & Features
General Specifications	Supported OS	Windows 10, 11, Server 2016, Server 2019, Server 2022 macOS UNIX, Linux, and BSD
	Supported Languages	Deutsch, English, Français, Italiano, Nederlands, ???????, ???, ??, ????, ????, Ceská, Polski, Svenska, Dansk, Norsk, Suomi, Português, Türkçe, Español, Magyar, ???????
	Supported Browsers	Firefox Chrome Safari Microsoft Edge
Network	Network Protocols	CIFS / SMB, SMB 2.0 / 3.0, AFP, NFS, FTP (Unicode Supported), TFTP, WebDAV, Rsync, SSH, SFTP, iSCSI/IP-SAN, HTTP, HTTPS, Proxy, SNMP, Syslog
	Connection and transmission	TCP/IP (IPv4 & IPv6) Link Aggregation: Supports 802.3ad and Six Other Modes for Load Balancing and/or Network Failover Jumbo Frame (MTU) VLAN EZ Connect Wireless Network DDNS and EZ-RouterCompatibility Supports Wake-on-LAN (WOL) See More Supports Wake-on-WAN (WOW) See More
File Management & Sharing	File System	Internal Disk: EXT4 ,Btrfs External Disk: FAT32, NTFS, EXT3, EXT4, HFS+, exFAT ,Btrfs
	File Explorer	Web-based File Management ISO File Mounting Share Links Task Monitor Browse Files on Local PC Thumbnail Previews Data Access via External Optical Drive Supports video playback
	Network Recycle Bin	Share folder-based Maintains original directory structure and file permission On-click restore Supports scheduled emptying Filtering rules File size File extension Deletion Settings File size File date
Storage management	Supported RAID levels	Single JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	Supported RAID migration methods	Single to RAID 1 Single to RAID 5 Single to RAID 6 Single to RAID 10 RAID 1 to RAID 5 RAID 1 to RAID 6 RAID 1 to RAID 10 RAID 5 to RAID 6
Volume	RAID levels supporting storage expansion by complete drive replacement	RAID 1 RAID 5 RAID 6 RAID 10
	RAID levels supporting storage expansion by drive addition	RAID 5
	RAID spare drive support	RAID 1 RAID 5
	Supported RAID levels	Single JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
	Supported RAID migration methods	Single to RAID 1 Single to RAID 5 Single to RAID 6 Single to RAID 10 RAID 1 to RAID 5 RAID 1 to RAID 6 RAID 1 to RAID 10 RAID 5 to RAID 6
M.2 Volume	RAID levels supporting storage expansion by complete drive replacement	RAID 1 RAID 5 RAID 6 RAID 10
	RAID levels supporting storage expansion by drive addition	RAID 5
	Supported RAID migration methods	RAID 1 RAID 5
	MyArchive	Hot swappable design enables easy transfer or exchange of high amounts of data Works on any empty bay on an ASUSTOR NAS File system support: EXT4, NTFS, HFS+, Btrfs and exFAT Supports AES 256-bit encryption on EXT4 and Btrfs Supports Btrfs snapshots Supports decryption with a USB key
	iSCSI/IP-SAN	Maximum Targets: 256 Maximum LUNs: 256 Maximum Snapshot Versions of a Single LUN: 256 Target Masking LUN Mapping ISO File Mounting Supports MPIO Persistent (SCSI-3) Reservations
	Disk Management	Scheduled Bad Block Scans Scheduled S.M.A.R.T Scans
Access & Security	Access Control	Maximum Number of Users: 4096 Maximum Number of Groups: 512 Maximum Number of Shared Folders: 512 Maximum Number of Concurrent Connections: 512 Supports Windows Active Directory Supports Windows Active Directory / LDAP
	ACL	Provides both Windows ACL and Linux ACL permission configuration methods Can enable Windows ACL for specific shared folders Comprehensive support for Windows’ 13 types of advanced permission settings Can view Windows ACL permission settings from within ADM Supports local users and groups Exclusive permission reset function allows users to quickly restore default permissions
	SSD Cache	SSD-like performance with traditional hard drives Supports read-only access and read-write cache mode
	System Administration	Log Type: System Log, Connection Log, File Access Log Real-time Online User Monitor Real-time System Monitor User Quota Virtual Drive (ISO Mounting, Maximum 16) UPS SupportCompatibility
	Security	AES 256-Bit Encryption Firewall: Prevent Unauthorized Access Alert Notifications: E-mail, SMS Encrypted Connections: HTTPS, FTP over SSL/TLS, SSH, SFTP, Rsync over SSH Built-in Hardware Encryption Engine RAID Scrubbing: detects the integrity and consistency of RAID 5 and RAID 6 drive data.
	Network Defender	Auto black list Trusted list Black/White list Supports IP/IP range/geolocation
Backup	Backup Solutions	Rsync (Remote Sync) Backup Cloud Backup FTP Backup External Backup One Touch Backup EZ Sync SMB Backup
	Snapshots	Btrfs Snapshots 256 Snapshots iSCSI LUNs
Others	ASUSTOR Hightlight	System Migration EZ Connect Dr. ASUSTOR 2-way Backup Task Monitor
	Eco-Friendly Design	System Automatically Enters Sleep Mode (Schedule S3) Auto-Standby for Both Internal and External Disks Auto Fan Control LED Night Mode Power Schedule: On, Off, Restart, and Sleep
	Energy Control	Configurable Disk Hibernation and Sleep Mode Wait Time Configurable Time Period for Sleep Mode Activation Automatic Sleep

Featured Apps
Official ASUSTOR Apps	Antivirus (ClamAV)	Scheduled Scans Automatic Virus Definition Updates Quarantine Infected Files
	Download Center	Supports BT(Torrent & Magnet Link), HTTP and FTP Downloads Torrent Search Choose Files Before a BT Task Starts Customizable Download Schedule Bandwidth Control RSS Subscription and Automatic Downloading (Broadcatching) ASUSTOR Download Assistant for Windows & Mac AiDownload for Android with Push Notification Smart Download Function
	Cloud Backup Center	Support Amazon S3, Backblaze B2, Microsoft Azure Blob Storage, Alibaba Cloud, Baidu Cloud, IBM Cloud and Rackspace Cloud Files, SFTP, WebDAV, Box, hicloud S3, Google Cloud Storage Immediate or scheduled backup Perform multiple backup tasks and back up multiple accounts
	DataSync Center	Support OneDrive, OneDrive Business, Google Drive, Dropbox, and Baidu Wangpan,Yandex Supports file filter and bandwidth limitation Supported backup methods: Sync Directly upload files to Cloud from NAS Directly download files from Cloud to NAS
	FTP Explorer	Directory Structure View with Drag & Drop Transfers Task Monitor Stopping of Transmission Task & Resumption of Connection Encrypted Connections: Explicit over TLS, Implicit over TLS FTP Site Manager Bandwidth Control Maximum Simultaneous Transfer Control
	HiDrive	Each ADM Account is Able to Individually Log in to One HiDrive Account Supported Backup Methods: Directly Upload Files to HiDrive from NAS Directly Download Files from HiDrive to NAS Supported Protocols: Rsync FTP FTPS SFTP Rsync + SSH
	LooksGood	Built-in three main video library categories; movies, TV shows, home movies and smart video sorting management Efficient global search function allows for searches by keywords followed by the execution of more detailed searches for the purpose of finding categories of movies, TV shows, home movies and parameters such as actors, director, year, genre, writer and title Attractive poster wall and thumbnail display Automatic production of video poster thumbnails Centralized management and ability to configure order of favorites and playlist history System administrator is able to configure video library and editing permissions according to user preferences Can configure access permissions to share with friends and family Multimedia conversion feature Self-defined smart folder for video conversions Easy Streaming with Chromecast and DLNA Supports playback of videos in Apple TV via AiVideos tvOS version
	Mail Server	Each ADM Account can Become an Independent Email Account Email Activity Monitor (Over 1 Week, 1/3/6 Months) Provides SMTP, IMAP and POP3 Mail Protocols Supports SMTP Relay and Verification SMTP-SSL Secure Connections Spam Filter and Black List Settings Antivirus Scanning for Emails Email Alias Creation and Mapping Monitoring of Mail Queue Mail Service Activity Log Exclusive Email Backup Mechanism Auto-Forwarding and Auto-Response Protocols
	Photo Gallery 3	Quickly find and view photos from a specific date in Photo Gallery 3’s timeline. Photo Gallery 3 sorts your photos in a smarter way. Smart albums found in Photo Gallery 3 include places, videos, recently added, favorites and duplicates. Supports two methods to share photos, share links to other NAS users or to friends and family. All shared albums have optional encryption to protect sensitive information. Easily understand photo metadata as well as edit photo descriptions to make photo identification easier. Easily find photos by keyword search.
	Surveillance Center Compatibility	Up to 72 channels in 720p on single live view display On-screen camera controls including camera PTZ, manual recordings, take snapshots, configure camera settings and open Maps Up to 4 channels of synchronous and non-synchronous playback with audio Intelligent video analytics including motion detection and foreign object detection Supported Browsers: Microsoft Edge, Firefox, Chrome Event notification supports SMS, E-mail, and mobile push notification Automated event action rules Role-based access control RTSP streaming server (video and audio) AiSecure mobile app for iOS and Android with Push notification ONVIF Profile S, T supported CMS Lite supports connect up to 256 IP Cameras from 32 NAS Two different camera license packages are offered: single channel and 4 channels. Maximum IP Cam (4 Free Camera Licenses; Additional Licenses to be Purchased) See More Minimum PC Client Requirements CPU: Intel i5/i7 or above RAM: DDR3 4G or above Operating system Windows 7 and onward Windows browsers: Microsoft Edge, Chrome, Firefox Display resolution: 1280x800 pixels or higher for best user experience Network interface: Gigabit x1 Independent graphics card is highly recommend
	SoundsGood	Import Personal/Public Music Collection Personal/Public Music Collection Permission Control Playlist Editor ID3 Tag Editor Local Speaker Support: HDMI, USB Supported Audio Formats for Browser: MP3, WAV, Ogg Supported Audio Formats for Transcoding Through Browser: AIFF, Flac Supported Audio Formats for Local Speaker: MP3, WAV, Ogg, AIFF, Flac ASUS DAC Support
	Takeasy	Download from YouTube, Vimeo, Twitch and More Selectable Video Type and Quality Automatic Downloads with Twitch Subscriptions Preview Downloads in Progress Online Playback
	UPnP Media Server	Supports PS3 and other Digital Media Player Capable Devices Supports On-The-Fly Transcoding for Most RAW Images and Audio(OGG, FLAC) Supported Image Formats: BMP, GIF, ICO, JPG, PNG, PSD, TIF, RAW Image (3FR, ARW, CR2, CRW, DCR, DNG, ERF, KDC, MEF, MOS, MRW, NEF, NRW, ORF, PEF, RAF, RAW, RW2, SR2, X3F)
	VPN Client	Supported VPN Protocols: PPTP, OpenVPN, WireGuard VPN (ADM 4.2 Onwards) Transmission Package Monitor PPTP Authentication: PAP, CHAP, MS CHAP, MS CHAP2 PPTP Encryption: No MPPE, MPPE (40, 128 bit), Maximum MPPE (128 bit) OpenVPN Port Control OpenVPN Link Compression
	VPN Server	Supported VPN Protocols: WireGuard VPN, PPTP, OpenVPN, and L2TP/IPsec View Current Connections & Ability to Disconnect Suspicious Connections Comprehensive Connection Log
	RADIUS Server	Centralized management of wireless network certification Using WPA-Enterprise or WPA2-Enterprise encryption Must be combined with a wireless router that supports RADIUS authentication
	SNMP Server	Supports SNMP v1, v2c, v3 and trap ASUSTOR NAS MIB provided
	Syslog server	Supports standard syslog protocol Graphical log monitoring by time and device Supports TCP and UDP Auto log archiving User-defined email notification
