32" Benq SW321C 4K Adobe RGB IPS LED Monitor

Web ID: 27759

Panel Size: 32"
Panel Type: IPS
Resolution: UHD (3840 x 2160)
Refresh Rate: 60Hz
Response Time: 5ms (MPRT)
Display Inputs: 2 x HDMI || 1 x DisplayPort || 1 x USB-C
Display Technology: Eye Care || Flicker Free
Other: Height Adjust || Shading Hood || Designed for Photo Editing

Manufacturer Warranty: 3 Year
Manufacturer PN: SW321C
GTIN: 4544438015022
Manufacturer Website

$3199
Relive the Moment
Vital Moment Reproduced with Exceptional Colors

Reality

Validity

Creativity



Devoted to meet the latest professional color standard, BenQ has developed AQCOLOR technology to uphold the concept: “Accurate Reproduction". BenQ has invited color experts to lead the team, and also actively participated in ICC (International Color Consortium) and ISO (International Standard Organization) to establish color-related standards and implementation in order to provide consistent and accurate colors.


Industry Color Standard for Accurate Color Performance

Photographers work with great demand on color accuracy. BenQ SW321C photographer monitor achieved industry color standard to deliver truer and accurate colors so as to relive the moment.


Enrich Your Palette with 99% Adobe RGB

See the true colors of the nature! BenQ SW321C meets high color standards by covering 99% of Adobe RGB, 100% of sRGB/Rec. 709, and 95% of DCI-P3/Display P3, resulting in a more realistic color representation for outdoor and nature photography.

Color Precision to Reproduce Original Images

The 16 bit look up table (LUT) improves RGB blending accuracy, resulting in impeccable color reproduction and Delta E ≤ 2 in Adobe RGB and sRGB color space renders the truest and most representative view of the original image.



10 bit Color Depth for Smooth Color Gradations

SW321C guarantees the silkiest and smoothest color gradations with 10-bit panel from a 16-bit look-up-table (LUT) by gamma correction, which shows more than one billion colors for natural color transitions and subtle shading.


10-bit
8-bit



Color Consistency Presented
in Every Detail

Surpassing industry color standards, BenQ has dedicated itself to evolving and developing its technologies to achieve higher level of color accuracy in every detail.


Uniformity Technology

Achieved via delicate process utilizing high precision apparatus to meticulously fine-tune the color and the brightness at hundreds of sub-regions on the entire screen, BenQ Uniformity Technology offers screen-wide precise color from corner to corner for perfectly authentic and consistent viewing experiences.


With
Without

Consistent Color, Convenient Monitor Usage

In every production line, BenQ has utilized a well prepared instrument to ensure that monitors from different production lines display color at same precise level. Photographers will perceive consistent color when working on dual monitors.

thunderbolt monitor for photo editing

Hardware Calibration Produces
Consistent Image Quality

Hardware calibration allows you to adjust the monitor’s internal image processing chip without changing the graphics card output data, keeping displayed images consistent with the original content without being affected by graphic card setting.



Palette Master Element Calibration Software

With the use of Palette Master Element and a calibrator, you can customize the color setting or maintain the color performance of the monitor at its most optimal state.

* Supported Platforms : Win7 or above, Mac OS 10.6.8 or above * Supported Calibrators : X-Rite i1 Display Pro / i1 Pro / i1 Pro 2 / i1 Studio , Datacolor Spyder 4/5, Spyder X, Colormunki Photo

Professionally Factory Calibrated to Promise Out-of-the-Box Color Accuracy

BenQ’s SW321C monitor offers the out-of-the-box color accuracy that guarantees users can enjoy the most trustworthy color performance.

calmanpantonmblack
Certified with CalMAN Verified AND PANTONE Validated

With the certification of CalMAN Verified as well the Pantone Validated, BenQ SW321C is to maintain truthful colors which promise the industry-approved performance all the creative enterprises will love to reproduce.

Display Every Splendid Scene with Details

More and more photographers are using digital cameras to capture the moment and to preserve any remarkable episode in life. BenQ SW321C adopts HDR and supports various video formats to replay your vivid times dynamically.


HDR Brings you the Most Dynamic Footages

SW321C is compatible with HDR10 and HLG formats so that videographers can preview the HDR effect of the video content during the editing process, ensuring desirable outcomes for their final works.


HDR
SDR

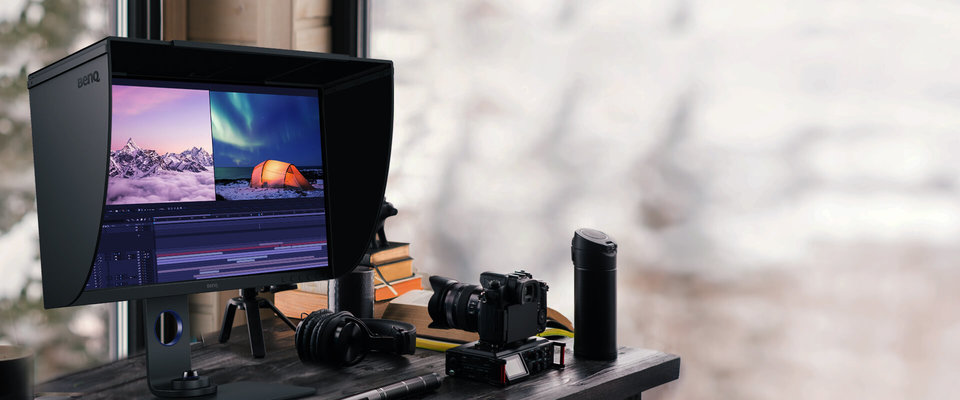

Video Format Supports Present the Real Content

SW321C supports 24P/25P film content to be displayed at native cadence without pulldown which can distort playback of the source video.

videoframeformat
videocalibration
Third-Party Video Calibration Software Supported

SW321C supports the world-leading video calibration software CalMAN and LightSpace and thus gains software access to adjust display’s 3D LUT, guaranteeing image accuracy and consistency at all levels.

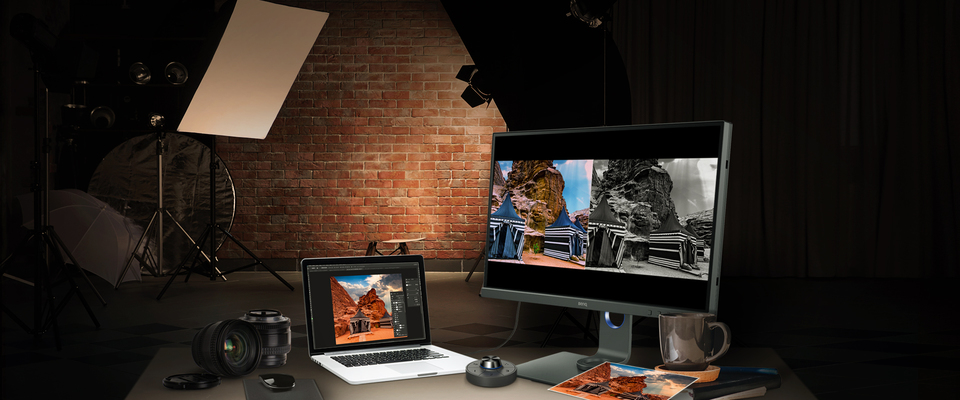

Streamline Your Workflow to Recreate the Moment

A perfect photo is not done in a step but takes a whole process from clicking the button, retouching the work, to getting it printed. BenQ has developed specialized features to facilitate a smooth retouching-to-printing workflow. This streamlined workflow will smooth the retouching process with intuitive designs and simplify the printing process with a simulated preview before printout. You can thus make the moment stay in true colors.

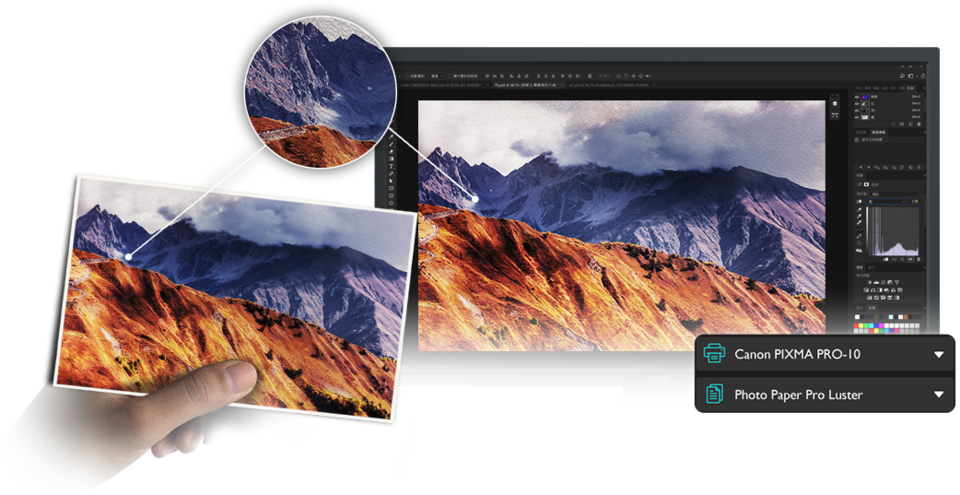

Paper Color Sync

Paper color sync is a BenQ proprietary technology to simulate the printing results. You can edit photos with efficiency and confidence in this time-saving screen-to-print process just by picking the color gamut, printer model and paper type to get a preview. Moreover, SW321C adopts a panel which reduces effectively the reflected light and screen glare, offering a preview that is true to what you’ll see on the paper.

papercolorsync1200

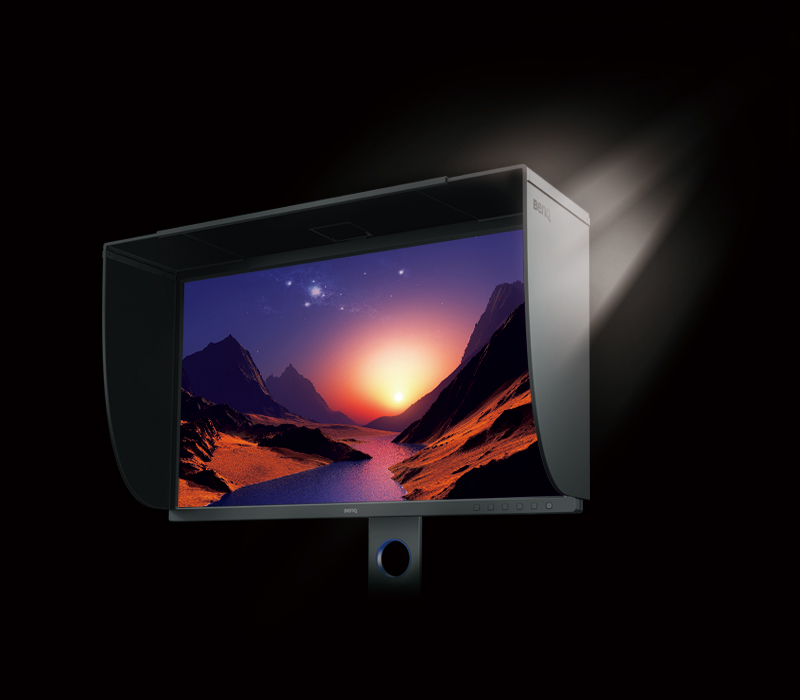

Shading hood

A specially designed detachable shading hood can effectively reduce the monitor’s screen glare from ambient lighting for superb color accuracy.

sw321chood

Extra Intuitive Designs for Work Efficiency

Photographers would be free from repetitive actions for photo retouching and video editing by BenQ’s customizable designs to boost the work efficiency.

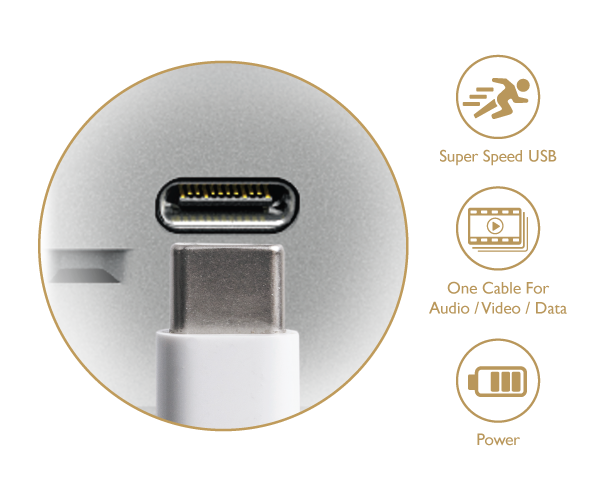

USB-C port

The latest USB-C?? port provides high-speed Video/Audio/Data transmission and power delivery with one single cable.

32 benq sw321c 4k adobe rgb ips led monitor

*The transmission rate of USB-C™ can vary. *USB-C is compatible with Thunderbolt 3. *Please make sure your laptop’s USB-C port supports DisplayPort Alt mode. * Please make sure the purchased cable is certified by USB-IF and is full-featured with power delivery and video / audio / data transfer functions.

Hotkey Puck G2

Preferred color modes and features are designated as quick access to widely used settings.

switchfront

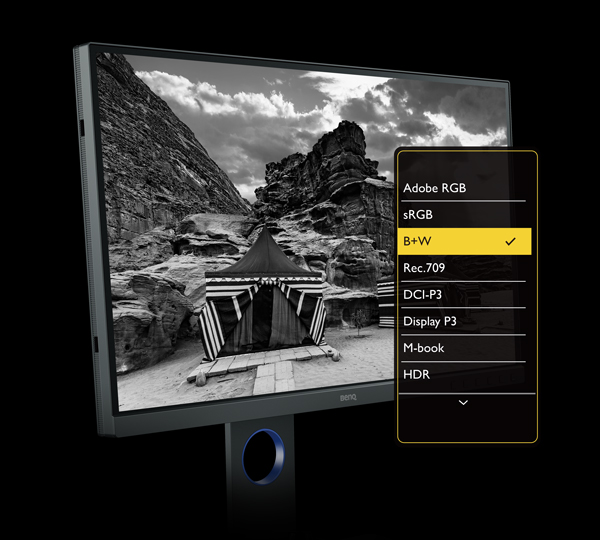

Advanced Black & White Mode

Color photos are displayed in enhanced black and white film effect. Choose from three different black and white presets to preview your photos before actual adjustment.

advancedblack2

GamutDuo Mode

Photo preview is enabled to present the same image in two color gamut side by side for added comparison.

gamutduo

Main Specifications

Screen Size

32

Resolution (max.)

3840 x 2160

All Specifications

Display

Screen Size

32

Panel Type

IPS

Backligh Technology

LED backlight

Resolution (max.)

3840 x 2160

Brightness

250

Native Contrast(typ.)

1000:1

Viewing Angle (L/R;U/D) (CR>=10)

178 / 178

Response Time

5 ms (GtG)

Refresh Rate

60Hz

Aspect Ratio

16:9

Display Colors

1.07 billion colors

Color Gamut

99% AdobeRGB, 95% P3, 100% sRGB

Display Area(mm)

708.48 x 398.52

Pixel Pitch (mm)

0.1845

PPI

137

DCR (Dynamic Contrast Ratio) (typ.)

20M:1

Color Bit

10bits

Audio

Headphone Jack

Yes

Monitor

Segment

Photographer

Product Color

Gray

Color Mode

Adobe RGB / sRGB / Rec.709 / DCI-P3 / Display P3 / M-book / B+W / HDR / Calibration 1 / Calibration 2 / Calibration 3 / Custom / Paper Color Sync / DICOM

HDR

HDR10 / HLG

Display Mode

Full, Aspect Ratio,  1:1

Color Temperature

5000°K / 6500°K/ 9300°K /  Custom / User Defined

Gamma

1.6 - 2.6, sRGB

K Locker

Yes

OSD Language

18 Languages (English / French / German / Italian / Spanish /  Polish / Czech / Hungarian /  Romanian / Dutch / Russian / Swedish / Protuguese / Japanese / Chinese / S-Chinese / Arabic/ Korean)

PIP/PBP

Yes

HDCP

2.2

VESA Wall Mount

100x100mm

AMA

Yes

Display Screen Coating

Anti-Glare / Anti-Reflection

Professional

3D-LUT

16bits

Delta E

<= 2 ( avg)

Uniformity Technology

Yes

Hardware Calibration

Yes

Video Format Support

Yes

Gamut Duo

Yes

Black & White mode

Yes

Black Level

Yes

Hotkey Puck G2

Yes

Factory Calibration Report

Yes

Connectivity

HDMI

HDMI (v2.0) x 2

DisplayPort

DisplayPort (v1.4)

USB 3.1 Hub

USB Downstream x 2

USB 3.1 Hub

USB Upstream x 1

USB Type-C

Yes (PD60W, DP Alt mode, Data)

Card Reader

SD/MMC type

Support Format: SD/SDHC/SDXC/MMC

Power

Voltage Rating

100~240V

Power Supply

Built-in

Power Consumption (on mode.)

170W

Power Consumption (based on Energy Star)

52W

Power Consumption (stand by mode)

0.5W‎

Power Consumption (sleep mode)

0.5W

Dimension and Weight

Dimensions (HxWxD mm) (w/o Base) (with shading hood)

453.45 x 759.4 x 257.89

Dimensions(HxWxD mm) (without shading hood)

Landscape: 502.25-652.25 x 747.2 x 223.61

Pivot: 798.6 x 448.15 x 223.61

Dimensions (HxWxD mm) (w/o Base)

448.15 x 747.2 x 77.82

Dimensions (HxWxD mm)

Landscape: 513.65-663.65 x 759.4 x 340.53

Pivot: 811.5 x 460.35 x 340.53

Net Weight (kg) (without shading hood)

11.8

Net Weight (kg) (without stand)

Landscape: 9.1

Pivot: 9.4

Net Weight (kg)

Landscape: 13.2

Pivot: 13.5

Gross Weight (kg)

25.6

Tilt (down/up)

-5°/- 20°

Swivel (left/right)

45/45

Pivot

90°

Height Adjustment (mm)

150mm

Software

Palette Master Element

Yes

Support Calibrator

X-Rite il Display Pro / il Pro /il Pro 2 /il Studio/ ColorMunki Photo, Datacolor Spyder 4/ Spyder 5/ Spyder X



* Note. MacOS 10.15 update:

(a) Spyder 4 / il Display 2 not supported by macOS 10.15

(b) Spyder 5 will be supported macOS 10.15 in future PME software update

Video Signal Data

Hor. Frequency (KHz)

27~140Khz

Ver. Frequency (Hz)

24~76Hz

Video Bandwidth (MHZ)

600M Hz

Included Accessories

Other Accessories

Shading hood, CD, QSG, Factory Calibration Report ,Hotkey Puck G2

Power Cable

Yes(1.8m)

Signal Cable

USB type-C cable(1m), mDP to DP cable (1.8m), HDMI 2.0 cable (1.8m), USB 3.1 cable (Gen 1)(1.8m)

Reliability

MTBF(hr, exclude backlight)

60000

Operating Temperatur

0°C - 40°C

Operating Humidity (non-condensing)

10% - 90%

Backlight Life (hr) Typical

30000

Compatibility

Mac Compatible

Yes

Windows® Compatible

Windows®10, Windows®8.1, Windows®8, Windows®7

Certification

Verified by CalMAN

Yes

Pantone Validated

Yes
