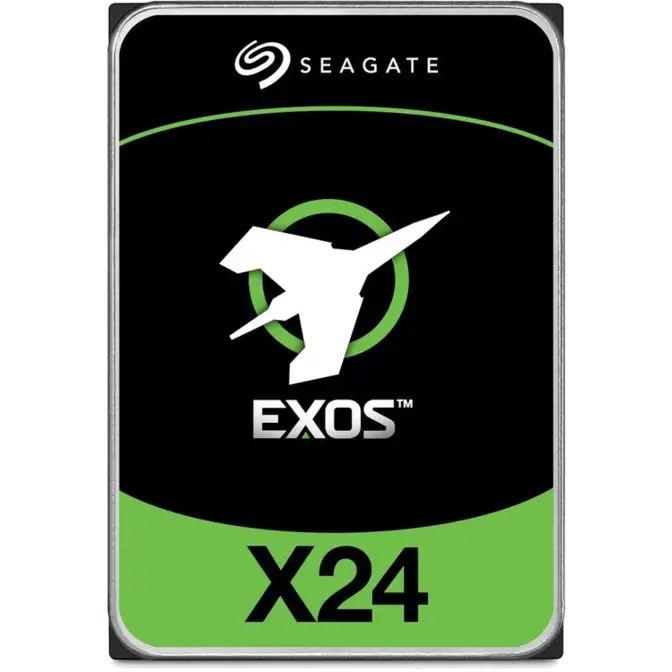

24TB Seagate EXOS 3.5″ SATA 7200rpm Hard Drive ST24000NM002H

24tb-seagate-exos-3.5-sata-7200rpm-hard-drive-st24000nm002h-0

$2,099

Max. QTY 4

Click & Collect

In stock at Mt Gravatt

Delivery

Avaliable for Fast Dispatch

Max. QTY 4
PN: ST24000NM002H
GTIN: 763649174883

Login to add to Wishlist

Manufacturers Website

Buy Now, Pay Later. T&Cs Apply

ZIP Logo
Afterpay Logo
PayPal Icon
Storage Size: 24TB
Storage Interface: SATA
Drive Form Factor: 3.5″
Rotational Speed: 7200rpm

Maximum Storage Capacity for Highest Rack Space Efficiency
Market-leading 24 TB HDD offering the highest capacity available for more petabytes per rack
Highly reliable performance with enhanced caching — making it the logical choice for cloud data centre and massive scale-out data centre applications
Hyperscale SATA model tuned for large data transfers and low latency
PowerBalance feature optimises watts per TB
Maximise total cost of ownership savings through lower power and weight with helium- sealed drive design
Proven helium side-sealing weld technology for added handling, robustness and leak protection
Digital environmental sensors to monitor internal drive conditions for optimal operation and performance
Data protection and security — featuring Seagate Instant Secure for safe, affordable, fast, and easy drive retirement
Proven enterprise-class reliability backed by a 5-year limited warranty and 2.5M-hr MTBF rating
Capacity 24 TB
Standard Model - Seagate Instant Secure Erase (ISE) 1 ST24000NM002H
SED Model2 ST24000NM001H
SED-FIPS2 —
FEATURES
Helium Sealed-Drive Design Yes
Conventional Magnetic Recording (CMR) Yes
SuperParity Yes
PowerChoice™ Idle Power Technology Yes
PowerBalance™ Power/Performance Technology Yes
Hot-Plug Support3 Yes
Cache, Multi-segmented (MB) 512
RSA 3072 Firmware Verification (SD&D) Yes
RELIABILITY/DATA INTEGRITY
Mean Time Between Failures (MTBF, hours) 2500000 hr
Reliability Rating @ Full 24×7 Operation (AFR) 0.35%
Non-recoverable Read Errors per Bits Read <1 in 10E15
Power-On Hours per Year (24×7) 8,760
512e Sector Size (Bytes per Sector) 512
4Kn Sector Size (Bytes per Sector) 4,096
Limited Warranty (years) 5
PERFORMANCE
Spindle Speed (RPM) 7200 RPM
Max. Sustained Transfer Rate OD (MB/s, MiB/s) 285/272
Random Read/Write 4K QD16 WCD (IOPS) 168/550
Interface Ports Single
Rotation Vibration @ 20-1500 Hz (rad/sec²) 12.5
POWER
Idle A (W) Average 6.3
Max Operating, Random Read/Write 4K/16Q (W) 8.9, 7.1
Power Supply Requirements +12 V and +5 V
ENVIRONMENTAL
Temperature, Operating (°C) (Ambient/Drive Reported) 5 / 60
Vibration, Non-operating: 2 to 500 Hz (Grms) 2.27
Shock, Operating 2 ms (Read/Write) (Gs) 40 Gs
Shock, Non-operating 2 ms (GS) 200
PHYSICAL
Height (mm/in, max) 4 26.1 mm/1.028 in
Width (mm/in, max)4 101.85 mm/4.010 in
Depth (mm/in, max) 4 147 mm/5.787 in
Weight (gm/lb) 685 g/1.51 lb
Carton Unit Quantity 20
Cartons per Pallet / Cartons per Layer 40/8

Warranty Information


5 Year

Manufacturers Warranty
