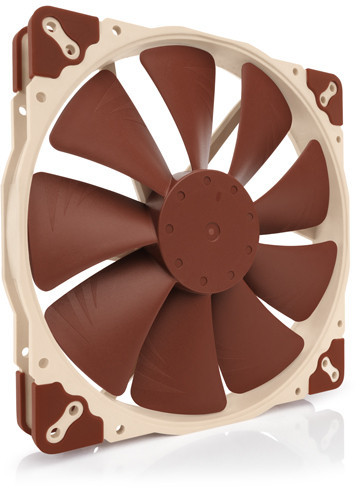

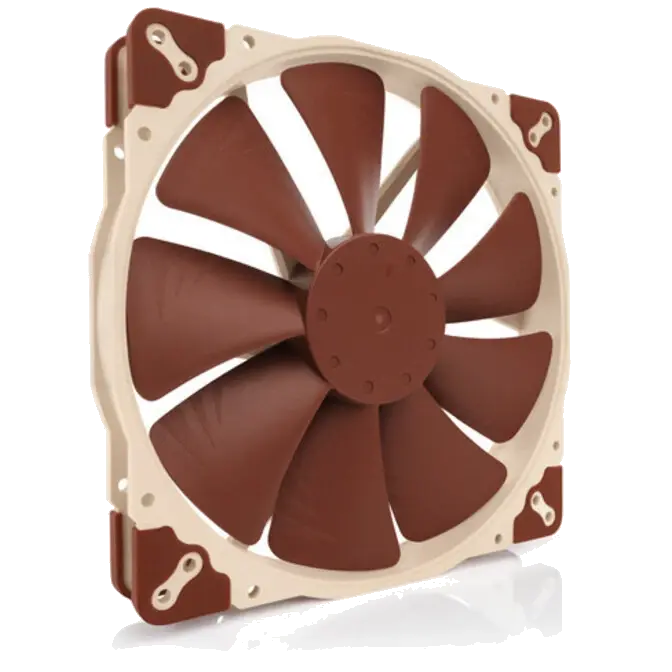

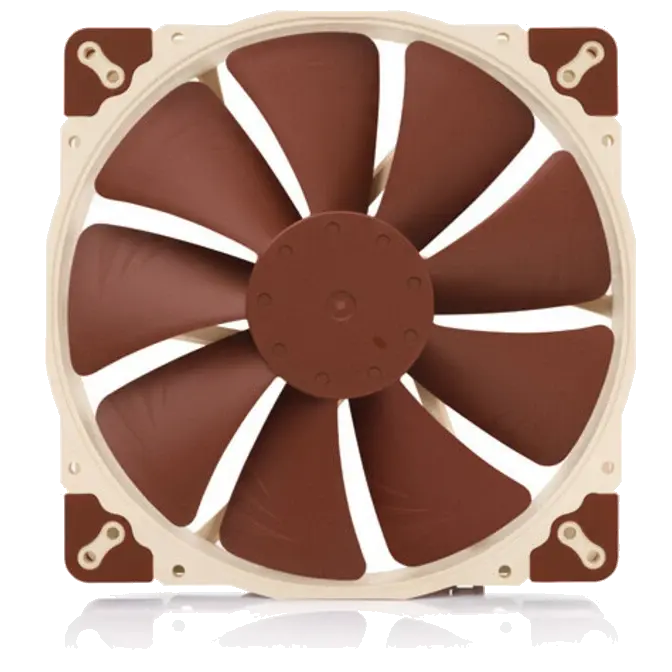

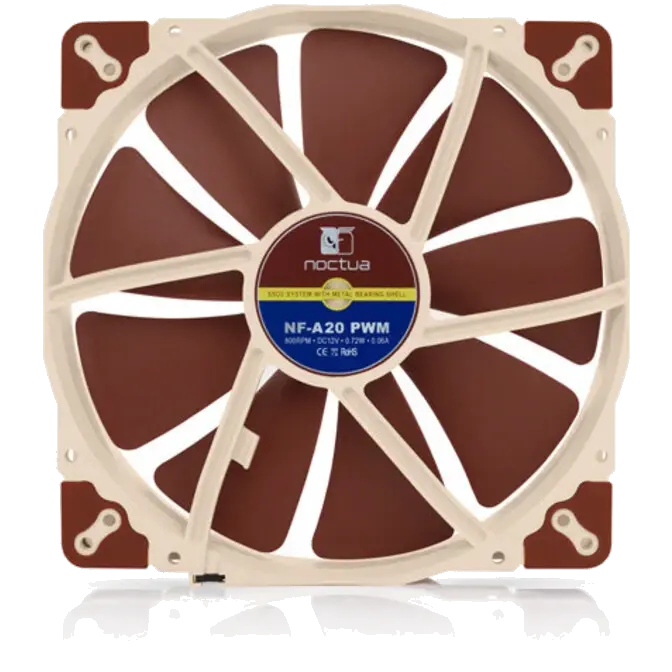

200mm NF-A20 PWM 800RPM Case Fan PN NF-A20-PWM

Web ID: 24512

The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctuas award-winning A-series to the increasingly popular 20cm form factor.
Manufacturer Warranty: 6 Year
Manufacturer PN: NF-A20-PWM
GTIN: 841501110016
Manufacturer Website

The NF-A20 is a highly optimised, premium quality quiet 200mm fan. Featuring an AAO (Advanced Acoustic Optimisation) standard frame as well as sophisticated aerodynamic design measures such as Flow Acceleration Channels, the NF-A20 brings the renowned quiet cooling performance of Noctua’s award-winning A-series to the increasingly popular 20cm form factor. The PWM version uses Noctua’s custom designed NE-FD1 IC for fully automatic speed control via 4-pin fan headers, which allows it to strike a perfect balance between quietness and ventilation performance in each given situation. Its superb running smoothness, reference-class SSO2 bearing and Noctua’s trusted premium quality make the NF-A20 an elite choice for the highest demands.

FAN Specification

Size
200x200x30 mm
Mounting hole spacing
154x154, 110x180, 170x170 mm
Connector
4-pin PWM
Bearing
Blade Geometry
Rotational Speed (+/- 10%)
800 RPM
Rotational Speed with L.N.A. (+/- 10%)
550 RPM
Min. Rotational Speed (PWM, +/-20%)
350 RPM
Acoustical Noise
18,1 dB(A)
Acoustical Noise with L.N.A.
10,7 dB(A)
Static Pressure
1,08 mm H2O
Static Pressure with L.N.A.
0,51 mm H2O
Max. Input Power
0,96 W
Max. Input Current
0,08 A
Voltage
12 V
MTTF
> 150.000 h
Scope of delivery
  • Low-Noise Adaptor (L.N.A.)
  • 4-pin y-cable
  • 30cm extension cable
  • NA-AV3 anti-vibration mounts
  • NA-AV4 anti-vibration mounts
  • Fan screws
Warranty
6 years
