General specifications
Product Name

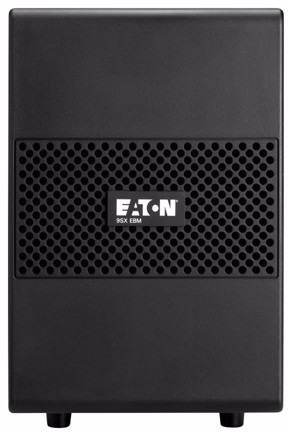

Eaton 9SX extended battery module (EBM)
Catalog Number
9SXEBM96T
Product Length
412 MM
Product Height
346 MM
Product Width
214 MM
Product Weight
48.7 KG
Warranty
2 year
Compliances
CE Marked
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B
TUV
cULus Listed
CSA 22.2
FCC part 15 Class B
CISPR22 Class B
Certifications
IEC/EN 62040-1
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC
UL 1778
IEC/EN 62040-2
CE
cULus Listed
EAC
Product specifications
Battery Rating
12V/9 Ah
Type
EBM
Battery Quantity
16
Battery Type
Sealed, lead-acid
Construction Type
Free standing model
Used With
9SX2000I, 9SX3000I, 9SX3000IM, 9SX3000INB
Color
Black
Rack Mounting Kit
No
Form Factor
Tower
Type of Accessory
Other
Package Contents
EBM power cable
EBM detection cable
QuickStart
EBM detection cable
QuickStart
