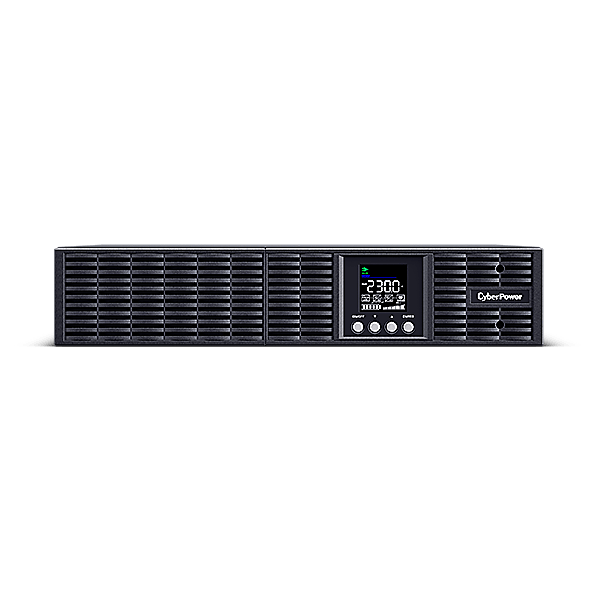

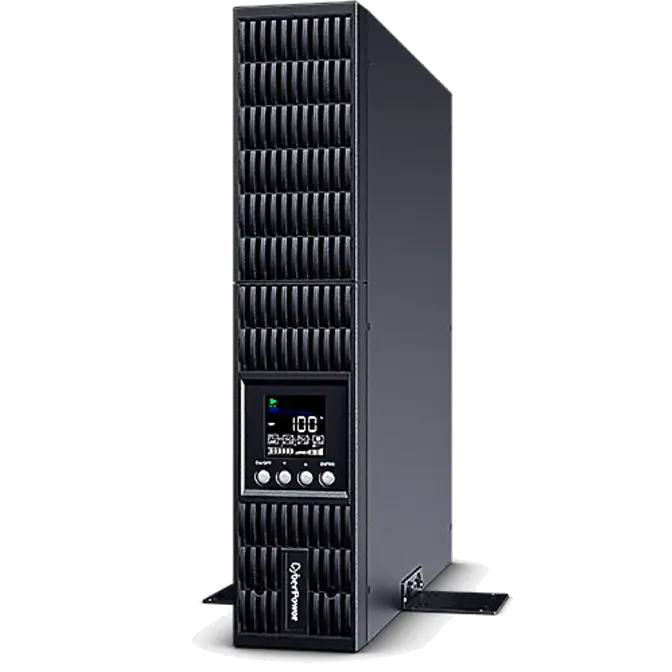

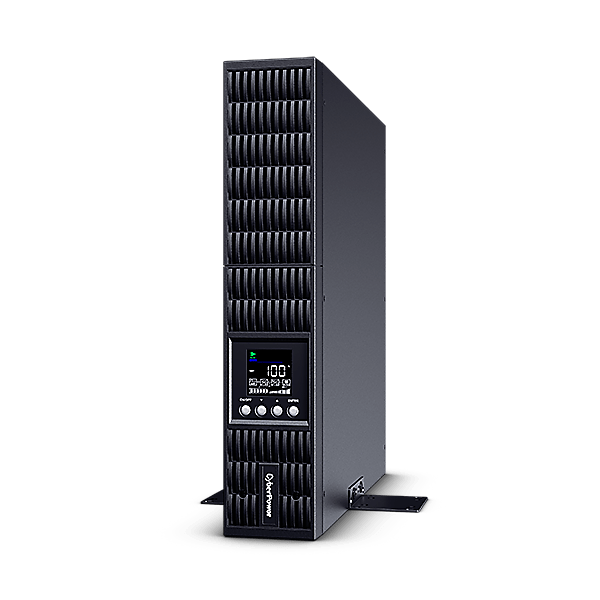

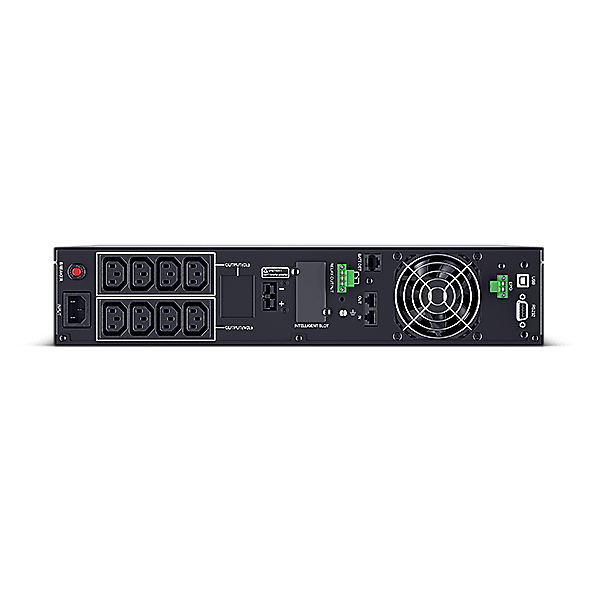

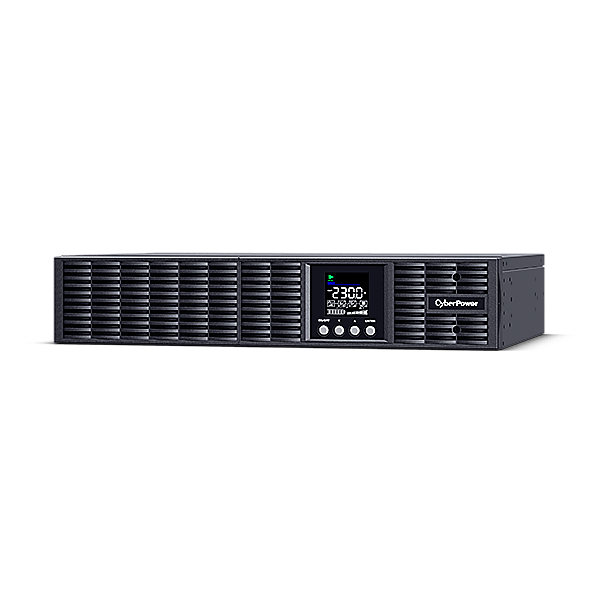

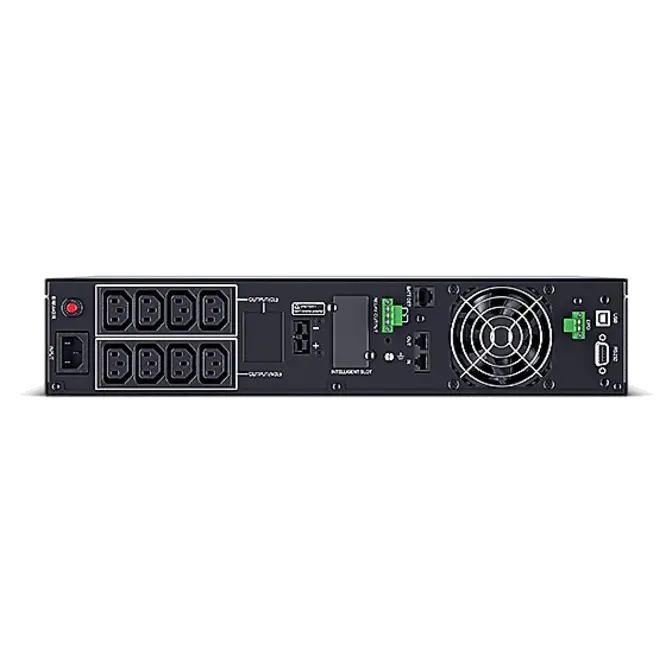

2000VA CyberPower OLS2000ERT2UA 1800W Pure Sine Wave UPS, *Bonus Cyberpower SNMP Card
Web ID: 29127
CyberPower OLS2000ERT2Ua Rack 2000VA/1800W Pure Sine Wave UPS, VA: 2000, Watts: 1800, Single Phase, Online Double Conversion UPS Topology, Active PFC Compatible, Nominal Input Voltage (Vac): 230 10%, Input Voltage Range (Vac): 160 ~ 300, Pure Sin Wave Battery Waveform, Configurable Output Frequency Setting, Rated Input Current (A): 9, Power Cord Length: 1.5m, BONUS CyberPower RMCARD205 SNMP Remote Management Card for UPS
Manufacturer Warranty: 2 Year
Manufacturer PN: OLS2000ERT2UA
GTIN: 4712856273847
Manufacturer Website
GENERAL
Phase
| Single Phase |
Form Factor
| Rackmount, Tower |
UPS Topology
| Online Double Conversion |
Energy Saving Technology
| Online ECO Mode Efficiency > 95% |
Active PFC Compatibility
| Yes |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 230 ± 10% |
Input Voltage Range ( Vac )
| 190 ~ 300 |
Adjustable Voltage Range ( Vac )
| 0~30% Load for 80 ~ 300 Vac |
| 0~50% Load for 120 ~ 300 Vac |
| 0~75% Load for 160 ~ 300 Vac |
| 0~90% Load for 190 ~ 300 Vac |
| 0~100% Load for 200 ~ 300 Vac |
Input Frequency ( Hz )
| 50 ± 10 |
| 60 ± 10 |
Input Frequency Detection
| Auto-sensing |
Rated Input Current ( A )
| 9 |
Input Power Factor
| 0.99 |
Input Connector Type
| IEC C14 |
Detachable Power Cord Plug Type
| AU x 1 |
Power Cord Length (ft.)
| 5 |
Power Cord Length (m.)
| 1.5 |
OUTPUT
Capacity (VA)
| 2000 |
Capacity (Watts)
| 1800 |
On Battery Waveform
| Pure Sine Wave |
On Battery Voltage(s) ( Vac )
| 208 ± 1 % |
| 220 ± 1 % |
| 230 ± 1 % |
| 240 ± 1 % |
Output Voltage Setting
| Configurable |
On Battery Frequency ( Hz )
| 50 ± 0.5% |
| 60 ± 0.5% |
Output Frequency Setting
| Configurable |
Power Factor
| 0.9 |
ECO Mode Voltage Tolerance
| ± 15 % |
Overload Protection
| Internal Current Limiting, Circuit Breaker, Fuse |
Overload Protection (Line Mode)
| 110~120% Load for 1 min, >120% Load Immediately |
Overload Protection (Battery Mode)
| 110~120% Load for 10 sec, >120% Load Immediately |
Overload Protection (Bypass Mode)
| >130% Load Immediately |
Crest Factor
| 3 : 1 |
Harmonic Distortion (Linear Load)
| THD<3% |
Harmonic Distortion (Non-linear Load)
| THD<5% |
Internal Bypass
| Automatic Bypass, Manual Bypass |
Outlet(s) - Total
| 8 |
Outlet Type
| IEC C13 x 8 |
Outlet(s) - Battery & Surge Protected
| 8 |
Outlet(s) - Critical Load (CL)
| 4 |
Outlet(s) - Non-Critical Load (NCL)
| 4 |
Typical Transfer Time ( ms )
| 0 |
BATTERY
Runtime at Half Load ( min )
| 13.1 |
Runtime at Full Load ( min )
| 3.8 |
Typical Recharge Time ( Hours )
| 4 |
Maximum Charging Current ( A )
| 1.5 |
Start On Battery
| Yes |
Smart Battery Management (SBM)
| Yes |
User-replaceable
| Yes - Qualified Personnel Only |
Battery Type
| Sealed Lead-acid |
Battery Cartridge (RBP)
| RBP0157 |
Battery Cartridge (RBP) Quantity ( pcs )
| 1 |
Battery Quantity (Each RBP) ( pcs )
| 4 |
Battery Voltage (Each RBP) ( V )
| 48 |
Compatible Extended Battery Module (EBM)
| BPSE48V40ART2U |
Extended Battery Module Auto-detection
| Yes |
Max. EBM Quantity ( pcs )
| 3 |
SURGE PROTECTION & FILTERING
Surge Suppression ( Joules )
| 363 |
EMI/RFI Filtration
| Yes |
Phone/Network Protection RJ11/RJ45 (Combo)
| 1-in, 1-out |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Types
| Color LCD |
LCD Information Display
| Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
LCD Setting & Control
| Mode Setting, Alarm Setting, Input & Output, Battery Setting |
HID Compliant USB Port(s)
| 1 |
Dry Contact (with Relay)
| Yes |
Emergency Power Off (EPO) Port
| Yes |
Audible Alarms
| Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery |
Management Cable ( pcs )
| Power Cord x2, USB Cable x1 |
Power Management Software
| PowerPanel Business (Recommended) |
SNMP/HTTP Remote Monitoring
| Yes - with optional RMCARD205 |
PHYSICAL
Enclosure Construction
| Metal |
Color
| Black |
Rackmount Rail
| Yes |
Rackmount Ears
| Yes |
PHYSICAL SIZE - UPS MODULE
Dimensions (WxHxD) (in.)
| 17.24 x 3.46 x 16.93 |
Dimensions (WxHxD) (mm.)
| 438 x 88 x 430 |
Weight (lbs.)
| 42.3 |
Weight (kg.)
| 19.2 |
Installed Rack Height ( U )
| 2 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (in.)
| 21.3 x 9 x 21.7 |
Dimensions (WxHxD) (mm.)
| 540 x 230 x 550 |
Weight (lbs.)
| 51.5 |
Weight (kg.)
| 23.4 |
ENVIRONMENTAL
Operating Temperature (°F)
| 32 ~ 104 |
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 20 ~ 90 |
Operating Elevation ( feet/meters )
| 0-4,921 feet (0-1,500 meters) |
Storage Temperature (°F)
| -4 ~ 122 |
Storage Temperature (°C)
| -20 ~ 50 |
Storage Relative Humidity (Non-condensing) ( % )
| 10 ~ 90 |
Storage Elevation ( feet/meters )
| 0-4,921 feet (0-1,500 meters) |
Online Thermal Dissipation ( BTU/hr )
| 682 |
Variable Speed Fans
| 20 steps automatically |
Audible Noise at 1.5M from Surface of Unit ( dBA )
| 45 |
CERTIFICATIONS
Certifications
| CE, RCM |
RoHS
| Yes |
WARRANTY
Product Warranty Period (Year)
| 2 |
Battery Warranty Period (Year)
| 2 |
