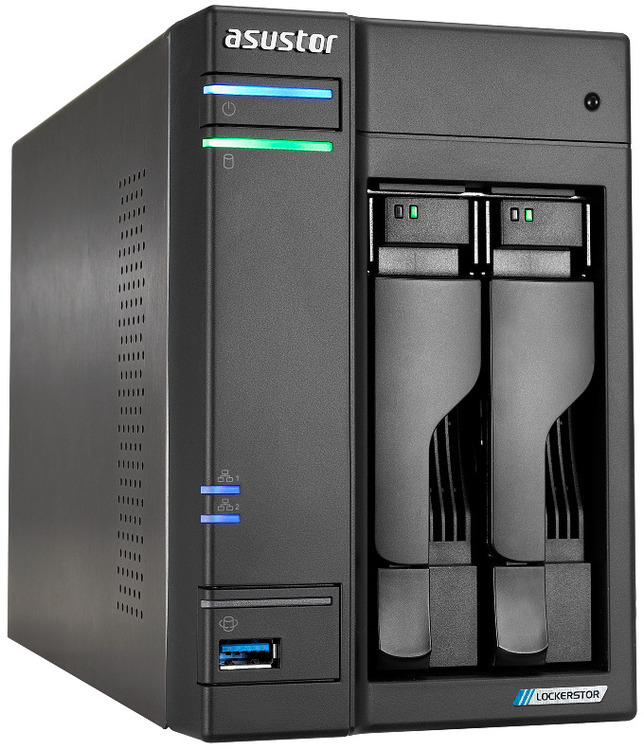

2 Bay Asustor LOCKERSTOR 2 Gen2 2.5Gb NAS Unit with 4xNVMe Slots, *Use Code: AS20 at checkout
Web ID: 46318
Quad-Core 10 nm Intel Celeron N5105 CPU, 31% more performance over Gemini Lake
Superfast 2.5-Gigabit Ethernet ports
Flexible PCIe slot for M.2 SSDs
Supports PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.
Uses DDR4-2933 with 40% more performance
USB 3.2 Gen2 ports 10Gbps speed
Enjoy, download, upload and stream content with 4K transcoding
Increased ventilation for SSDs
Supports Wake on LAN and Wake on WAN
Manufacturer Warranty: 3 Year
Manufacturer PN: AS6702T
Manufacturer Website
$779
Hardware Specifications |
||
|---|---|---|
CPU |
CPU Model | Intel Celeron N5105 |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.0GHz (burst up 2.90 GHz) | |
Memory |
Memory | 4GB SO-DIMM DDR4 Compatibility |
| Memory Module Pre-installed | 4GB (1x 4GB) | |
| Total Memory Slots | 2 | |
| Memory Expandable up to | 16GB (2x 8GB) Installation Guide
|
|
| Flash Memory | 8GB eMMC | |
Storage |
Drive Bays | 2 |
| M.2 Drive Slots | 4 Installation Guide | |
| Compatible Drive Type Compatibility |
|
|
| M.2 PCIe Interface | PCIe 3.0 x1 | |
| Maximum Drive Bays with Expansion Unit | 10 | |
| Supports Hot Swappable Drives | ||
External Ports |
Expansion | 2x USB 3.2 Gen 2 (10Gbps) |
| Network | 2x 2.5 Gigabit Ethernet (2.5G/1G/100M) | |
|
|
Multimedia Output | 1x HDMI 2.0b |
Others |
System Fan | 1x 70mm |
| Infrared Receiver | ||
| Power Supply Unit / Adapter | 65W x1 | |
| Input Power Voltage | 100V to 240V AC | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA | |
| Warranty | 3 Years | |
Operation |
Power Consumption | 21 W (Operation); 13.5 W (Disk Hibernation); 0.79 W (Sleep Mode) |
| Noise Level | 17.7dB (HDD idle) | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -20°C~70°C (-4°F~158°F) | |
| Humidity | 5% to 95% RH | |
Size and Weight |
Size | 163.5 (H) x 108 (W) x 230 (D) mm |
| Weight | 2 kg / 4.4 lb Package Contents | |
