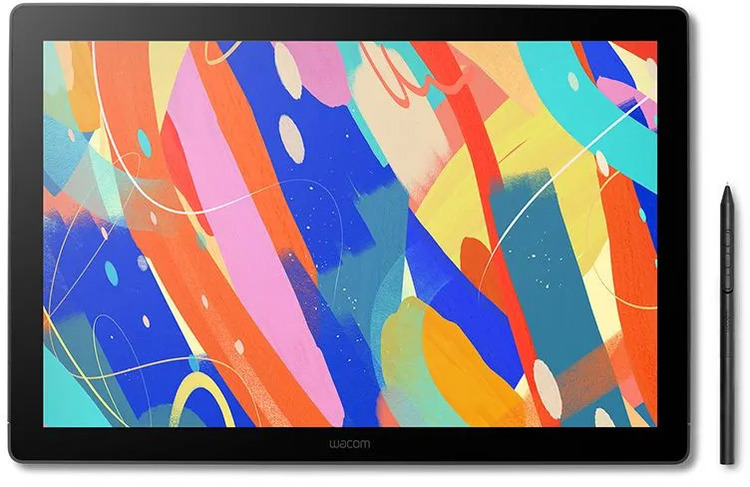

16" Wacom Cintiq 16 2K Graphic Tablet with Pro Pen 3
Web ID: 46193
Screen Size: 16"
Touch Support: Pen
Resolution: QHD+ (2560x1600)
Display Input: Mini HDMI In | USB-C In
Wacom Type: Cintiq
Manufacturer Warranty: 1 Year
Manufacturer PN: DTK168K1C
GTIN: 4949268707596
Manufacturer Website
$999SAVE $140
| Screen size | 16.0 in / 40.6 cm |
| Display resolution | 2560 x 1600 pixels |
| Glass / surface | AG glass |
| Aspect ratio | 16:10 |
| Technology | IPS |
| Supported resolution | 640 x 480 @60Hz, 720 x 480 @60Hz, 720 x 576 @50Hz, 800 x 600 @60Hz, 1024 x 768 @60Hz, 1280 x 720 @50/60Hz, 1280 x 1024 @60Hz, 1440 x 900 @60Hz, 1600 x 1200 @60Hz, 1680 x 1050 @60Hz, 1920 x 1080 @50/60Hz, 1920 x 1200 @60Hz, 2560 x 1600 @60Hz |
| Screen Resolution | WQXGA |
| Active area (inch) | 13.6 x 8.5 in |
| Active area (mm) | 345 x 215 mm |
| Pixel pitch | 0.1346 (H) x 0.1346 (V) mm |
| Viewing angle | 178 deg. (89/89) H / 178 deg. (89/89) V (typ) |
| Contrast ratio | 1400:1 (typ) |
| Brightness | 290cd/m2 (typ) |
| Color gamut coverage ratio | DCI-P3 99% (CIE1931) (typ), sRGB 100% (CIE1931) (typ) |
| Response time (G2G) | 12ms (typ) |
| Color Temperature, Custom Color | 5000K/5700K/6500K/7500K/9300K/DCI-P3 |
| Color depth | 16.7 million (8 bit) |
| Pen name | Wacom Pro Pen 3 |
| Pen resolution | 5080 LPI |
| Pen technology | Electromagnetic resonance technology |
| Pen pressure levels | 8192 levels |
| Pen type | Pressure-sensitive, cordless, battery-free, selective grips/ balance/ side switch |
| Pen tilt supported | 60 degrees |
| Pen weight | 160 x 8.4 mm (6.3 x 0.3 in) |
| Maximum report rate | 240 report/second |
| Number of switches | 3 programmable side switches |
| Number of nibs | 10 |
| Multi-Touch | No |
| I/O Ports | 1x mini HDMI (HDMI Type-C), 1x USB-C |
| Kenington Lock Slot | Yes |
| Input voltage | DC 5V 3A: USB-C (USB-C cable connection), DC 9V 2.77A: USB-C (USB-C cable + AC Power adapter connection) |
| Product weight (kg) | 2.0 kg |
| Product dimensions (L x W x H) (mm) | 259 x 384 x 15 mm |
| Product dimensions (L x W x H) (inch) | 10.2 x 15.1 x 0.6 in |
| Product weight (lbs) | 4.5 lb |
| Built-in stand adjustability | Yes |

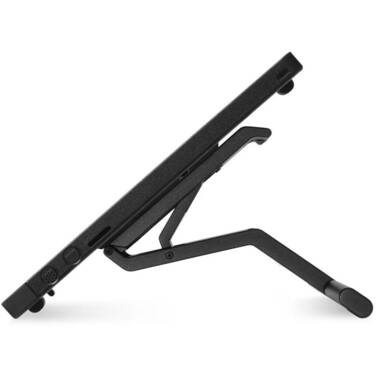

| Built-in stand | Yes - 20 degrees adjustability |
| Hardware requirements | USB-C port with DisplayPort™ Alt Mode*, or HDMI port and USB port, internet access to download driver. To achieve the maximum resolution and refresh rate on Wacom Cintiq 16, the host PC ports need to support 2560 x 1600 @60Hz. *Thunderbolt 3 or later is also supported. |
| System requirements | Windows 10 or later (latest service pack/build), macOS 13 or later, Android 8.0 and above |
| Product | Wacom Cintiq 16 |
| Pen Kit | Wacom Pro Pen 3, Vari-angle Pen Stand (incl. 1 x Standard Nib, 1 x Felt Nib), Nib Remover |
| Cables | USB-C to C Cable (1.8m/DisplayPort Alt Mode), USB-C to C Cable (1.8m/Power) |
| Documents | Quick Start Guide, IPI sheet |
| Power | AC Power Adapter, AC Plug Head |
