This product is no longer avaliable.
See suggested alternative models below.

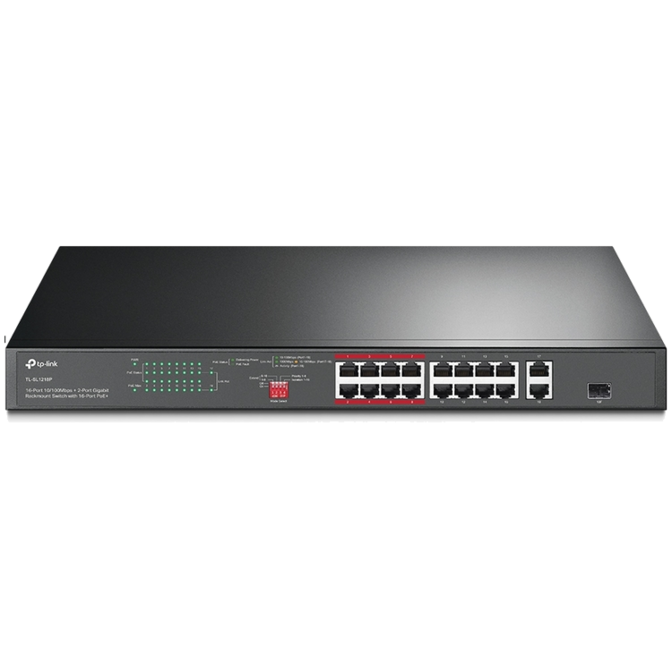

16 PoE+ 10/100 Mbps RJ45 ports, 2 Gigabit RJ45 ports, and 1 combo Gigabit SFP slot.
High PoE power budget with up to 30 W for each PoE port and 150 W for all PoE ports.
Up to 250 m data and power transmission under extend mode specially designed for surveillance system.
Priority mode for ports 18 to guarantees the quality of sensitive applications like video monitor.
Isolation Mode allows one-click client traffic separation for higher security and performance.
Easy to use, with no configuration and installation needed.
| HARDWARE FEATURES | |
|---|---|
| Interface | • 16× PoE+ 10/100 Mbps RJ45 Ports • 2× 10/100/1000 Mbps RJ45 Ports • 1× Combo Gigabit SFP Slot |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-X MMF, SMF |
| Fan Quantity | 2 Fans |
| Physical Security Lock | Yes |
| Power Supply | 100–240V AC, 50/60 Hz |
| PoE+ Ports(RJ45) | • Standard: 802.3at/802.3af compliant • PoE Ports: Ports 1–16 • PoE Power Budget: 150 W |
| Dimensions ( W x D x H ) | 17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm) |
| Max Power Consumption | • 12.71 W (220/50Hz. no PD connected) • 172.8 W (220/50Hz. with 150 W PD connected) |
| Max Heat Dissipation | • 43.34 BTU/h (no PD connected) • 589.25 BTU/h (with 150 W PD connected) |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 7.2 Gbps |
| Packet Forwarding Rate | 5.36 Mpps |
| MAC Address Table | 8K |
| Jumbo Frame | 10 KB |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3at/af Compliant PDs • Extend Mode (Up to 250m PoE power supply and data transmission) • Priority Mode • Isolation Mode • Mac Address Auto-Learning And Auto-Aging • IEEE802.3x Flow Control |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | • TL-SL1218P • Power Cable • Installation Guide • Two mounting brackets and the fittings |
| Environment | • Operating Temperature: 0–50 °C (32–122 °F) • Storage Temperature: -40–70 °C (-40–158 °F) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
5 Year
Manufacturers Warranty
