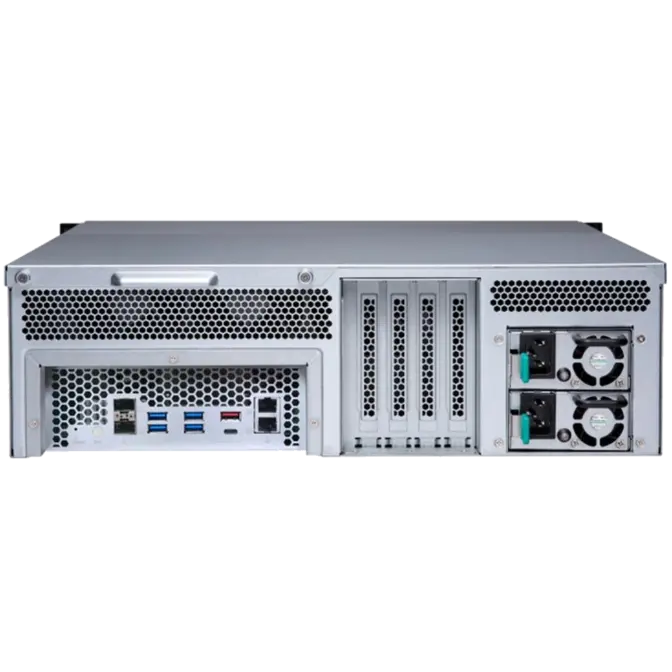

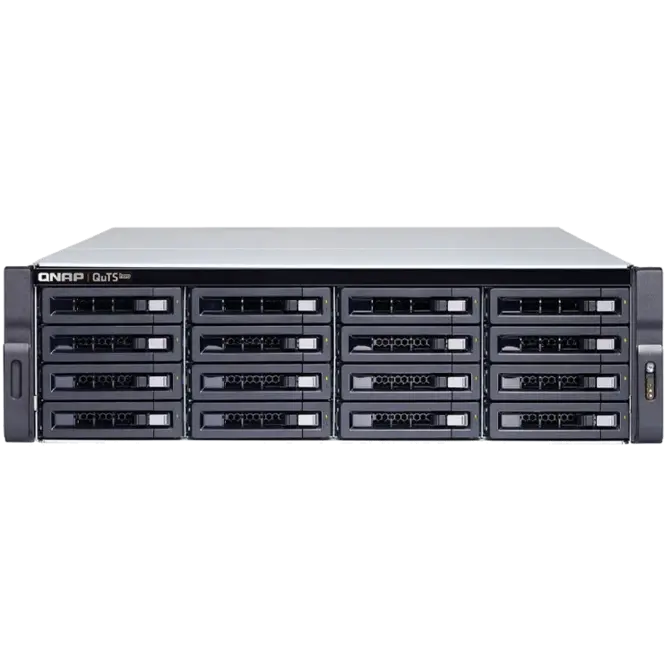

16 Bay TS-h1677XU-RP-3700X-32G 10 Gbe SFP+ 3U Rackmount NAS Unit
Web ID: 37722
The TS-h1677XU-RP QuTS hero NAS is powered by an AMD Ryzen 7 processor that delivers supreme system and virtual machine performance with up to 8 cores/16 threads and Turbo Core up to 4.4 GHz. Running the ZFS-based QuTS hero operating system, the TS-h1677XU-RP prioritizes data integrity and supports block-level inline data deduplication and compression, near-limitless snapshots, real-time SnapSync, SNMP protocol, and Azure AD Domain Services. Used as a mission-critical file server, virtualization server, VDI, collaborative video editing, or efficient file backup/recovery solution, the TS-h1677XU-RP helps your business achieve the outstanding service-level agreement performance. ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: TS-h1677XU-RP-3700X-32G
GTIN: 885022021567
Manufacturer Website
| CPU | AMD Ryzen™ 7 3700X 8-core/16-thread processor, burst up to 4.4 GHz |
| CPU Architecture | 64-bit x86 |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| System Memory | 32 GB UDIMM DDR4 (2 x 16GB) |
| Maximum Memory | 128 GB (4 x 32 GB) |
| Memory Slot | 4 x UDIMM DDR4 |
| Flash Memory | 5GB (Dual boot OS protection) |
| Drive Bay | 16 x 3.5-inch SATA 6Gb/s, 3Gb/s |
| Drive Compatibility | 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives |
| Hot-swappable | Yes |
| SSD Cache Acceleration Support | Yes |
| GPU pass-through | Yes |
| Gigabit Ethernet Port (RJ45) | 2 |
| 10 Gigabit Ethernet Port | 2 x 10GbE SFP+ SmartNIC port |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| PCIe Slot | 4 Slot 1: PCIe Gen 3 x4 Slot 2: PCIe Gen 3 x8 or PCIe Gen 3 x4* Slot 3: PCIe Gen 3 x4 Slot 4: PCIe Gen 3 x8 or PCIe Gen 3 x4** *Slot 2 provides the width of PCIe Gen.3 x8 when Slot 1 is not in use, and provides the width of PCIe Gen.3 x4 when Slot 1 is in use. |
| USB 3.2 Gen 1 port | 4 |
| USB 3.2 Gen 2 (10Gbps) Port | 1 x Type-C USB 3.2 Gen 2 10Gbps 1 x Type-A USB 3.2 Gen 2 10Gbps |
| Form Factor | 3U Rackmount |
| LED Indicators | HDD 1-16, Status, LAN, storage expansion port status |
| Buttons | Power, Reset |
| Dimensions (HxWxD) | 131.3 × 432 × 511.5 mm
Excludes ear hook and the protruding part of the Power Supply Unit. |
| Weight (Net) | 17.17 kg |
| Weight (Gross) | 21.91 kg |
| Operating Temperature | 0 - 40 °C (32°F - 104°F) |
| Storage Temperature | -20 - 70°C (-4°F - 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Power Supply Unit | 500W(x2), 100-240V |
| Power Consumption: Operating Mode, Typical | 136.45 W
Tested with drives fully populated. |
| Fan | System fan: 4 x 92mm, 12VDC |
| System Warning | Buzzer |
| Standard Warranty | 3 |
| Max. Number of Concurrent Connections (CIFS) - with Max. Memory | 5000 |
