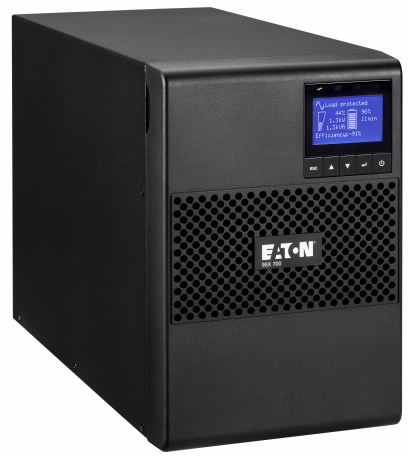

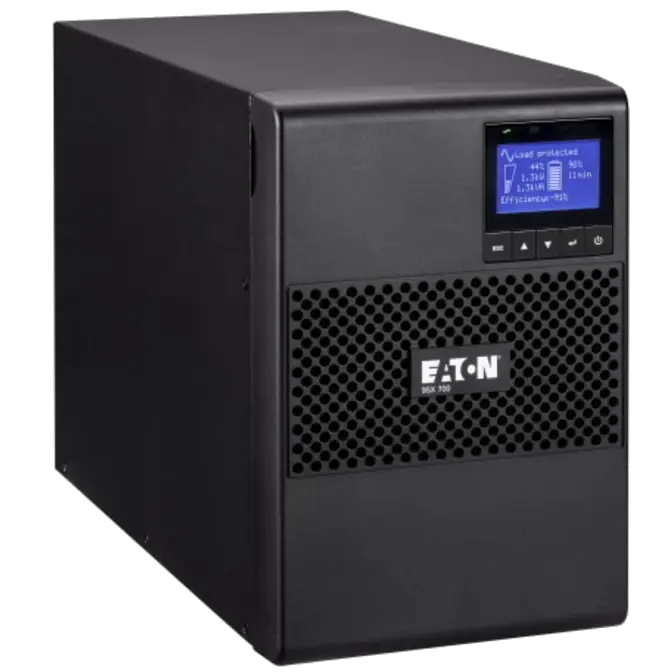

1500VA Eaton 9SX 1500I Online Tower UPS PN 9SX1500I-AU

Web ID: 25758

1500VA, The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower or rack format ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 2 Year
Manufacturer PN: 9SX1500I-AU
GTIN: 743172091093
Manufacturer Website

$1899
General
Topology On-line double conversion with PFC (Power Factor Correction) system
Configuration Tower
Part Number 9SX1500I-AU
Rating (VA/Watts) 1500/1350
Dimensions (H x W x D, mm) 252 x 160 x 437
Warranty 2 years

Electrical Input
Connection
(1) IEC-320-C14
IEC C14
Input Voltage Range 190-276V without derating (up to 120–276V with derating)
Nominal Voltage 200/208/220/230/240V
Frequency 50/60 Hz autoselection
Frequency Range 40-70 Hz

Electrical Output
Output Receptacles
(4) Aust. 10A
Australian 10A
Output Frequency 50/60 Hz autoselect, frequency converter as standard

Battery
Battery Management ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.
Extended Battery Capability EBM

Communications
User Interface Multilingual graphical LCD display
Communication Ports 1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay
Communication Slot 1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards

Environmental & Standards
Audible Noise <43dB
Operating Temperature 0 to 40°C continuous
Safety markings IEC/EN 62040-1, UL 1778, CSA 22.2
EMC Markings IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B
Approvals CE /CB report (TUV) / cULus / EAC / RCM
