| Aspect ratio | 16:10 |
| Backlight lamp life minimum (to half brightness) | 15,000 hours |
| Backlight type | Edge-lit |
| Bezel | Narrow |
| Brightness | 400 nits |
| Camera | No integrated camera |
| Certifications and compliances | BIS; BSMI; CB; CCC; CE; cTUVus; EAC; FCC; ISO 9241-307; KC; KCC; NOM; TUV/GS; VCCI; Vietnam MEPS; WEEE; ISC; ICE; UAE; NRCS |
| Color | Silver |
| Color gamut | 100% Display P3; 100% Adobe RGB |
| Contrast ratio | 2000:1 |
| Country of origin | China(AC8, ABY, ABT, AB2, AH3, AKH, ABV, ABJ, ACQ, AB4, ABG, AR6, ACJ, AB0, UUZ, A2N, UUF, ABB, A2K, AKL, AB1, ABU); Vietnam(ABA) |
| Curvature | Flat |
| Dimensions With Stand (W x D x H) | 32.06 x 0.88 x 20.86 cm |
| Display area (imperial) | 11.87 x 7.42 in |
| Display area (metric) | 30.15 x 18.84 cm |
| Display colors | Up to 16.7 million colors supported |
| Display contrast ratio (dynamic) | 10,000,000:1 |
| Display features | Tilt |
| Display scan frequency (horizontal) | 31-124 kHz |
| Display scan frequency (vertical) | 50-75 Hz |
| Display size (diagonal) | 36.5 cm (14.36") |
| Ecolabels | Taiwan Green Mark; Japan PC Green Label |
| End of Life CO2e (kg) | 2 |
| Energy efficiency class | B |
| Energy efficiency class logo | https://h10003.www1.hp.com/digmedialib/prodimg/lowres/c07055643.png |
| Energy star certified | ENERGY STAR® certified |
| EPEAT registered | EPEAT registered with Climate+ |
| Flicker-free | Yes (TÜV certified) |
| Hardness | 3H |
| Haze | 25% |
| HDCP | Yes, USB Type-C® |
| Horizontal viewing angle | 178° |
| Layers per pallet | Slip Sheet: 7 (20ft; 40ft); 8 (40 HQ); Pallet: 6 (20ft; 40 ft); 7 (40 HQ) |
| Low blue light | HP Eye Ease (TÜV Low Blue Light Hardware Solution certified) |
| Management Software | HP Display Center; HP Client Management Script Library |
| Manufacturer Warranty | HP three-year limited warranty |
| Material Type for item | FERT |
| Native resolution | WQXGA (2560 x 1600) |
| Non-Operating Humidity Range | 5 – 95% |
| Non-operating temperature – Celsius | -40 to 65°C |
| On mode power demand in Standard Dynamic Range (SDR) | 5.6 W |
| Operating altitude | Up to 5,000 m |
| Operating humidity range | 20 to 80% RH (non-condensing) |
| Operating temperature range | 41 to 95°F |
| Package dimensions (W x D x H) | 39.8 x 6 x 27.8 cm |
| Package weight | 1.27 kg |
| Pallet dimensions (W x D x H) | Slip sheet: 100 x 120 x 210.8 cm (20 ft, 40 ft); 100 x 120 x 240.8 cm (40 HQ); Pallet: 100 x 120 x 194.1 cm (20 ft, 40 ft); 100 x 120 x 224.1 cm (40 HQ) |
| Pallet weight | Slip sheet: 477.9 kg (20 ft, 40 ft); 546.19 kg (40 HQ); Pallet: 429.17 kg (20 ft, 40 ft); 496.04 kg (40 HQ) |
| Panel bit depth | 8 bit |
| Panel technology | IPS Black; Neo:LED |
| Physical security | None |
| Pixel pitch | 0.1178 x 0.1178 mm |
| Pixels per inch (ppi) | 216 ppi |
| Power | USB Type-C® input : DC 5V or 9V or 10V or 12V or 15V or 20V, 4.5A MAX; USB Type-C® output: DC 5V or 9V or 12V or 15V, 3A MAX or 20V, 3.25A MAX |
| Power consumption | 13 W (maximum); 7 W (typical) |
| Power supply type | External |
| Product color | Silver |

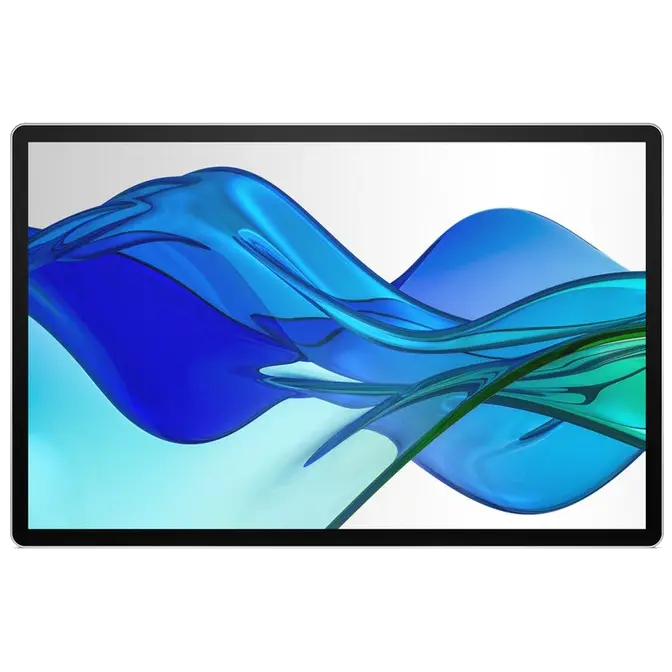

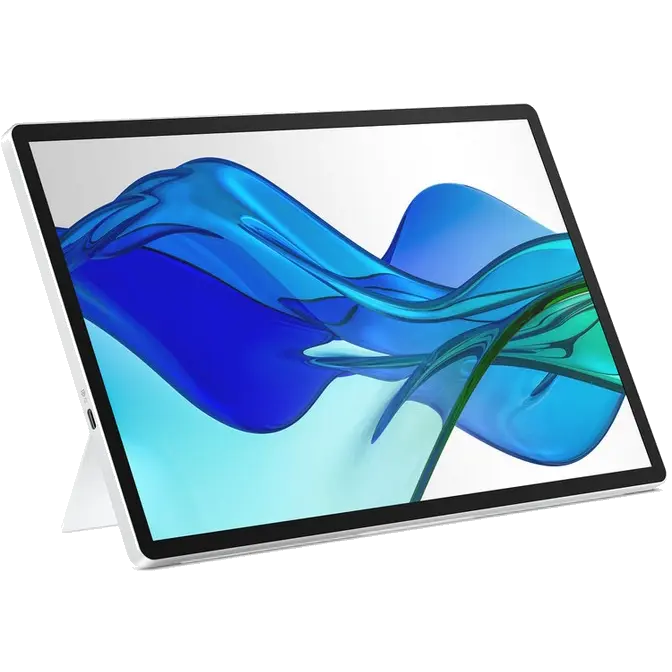

| Product long name specifications | HP Series 5 Pro 14 inch WQXGA Portable Monitor – 514pn, 75 Hz, 100% Display P3; 100% Adobe RGB, IPS Black; Neo:LED, No integrated camera, HP Eye Ease (TÜV Low Blue Light Hardware Solution certified) |
| Product short name specifications | HP Series 5 Pro 14 inch WQXGA Portable Monitor – 514pn, 75 Hz, 100% Display P3; 100% Adobe RGB, IPS Black; Neo:LED |
| Production CO2e (kg) | 156 |
| Products per pallet | Slip Sheet: 252 (20 ft & 40 ft); 288 (40 ft HQ); Pallet: 216 (20 ft & 40 ft); 252 (40 ft HQ) |
| Products per pallet layer | 36 |
| Refresh rate (maximum) | 75 Hz |
| Registration required | No |
| Resolution (maximum) | WQXGA (2560 x 1600 @ 75 Hz) |
| Resolutions supported | 640 x 480 @ 60 Hz; 640 x 480 @ 75 Hz; 720 x 400 @ 70 Hz; 800 x 600 @ 60 Hz; 800 x 600 @ 75 Hz; 1024 x 768 @ 60 Hz; 1280 x 720 @ 60 Hz; 1280 x 1024 @ 60 Hz; 1440 x 900 @ 60 Hz; 1600 x 900 @ 60 Hz; 1600 x 1200 @ 60 Hz; 1680 x 1050 @ 60 Hz; 1920 x 1080 @ 60 Hz; 1920 x 1200 @ 60 Hz; 1280 x 1024 @ 75 Hz; 2560 x 1600 @ 60 Hz; 1024 x 768 @ 75 Hz; 2560 x 1600 @ 75 Hz |
| Response time (typical) | 7ms GtG (with overdrive) |
| Screen treatment | Anti-glare |
| Special features | Ergonomic OOBE setup coaching; TUV Eye Comfort 3.0 3-Star |
| Stand color | Silver |
| Stand type | With stand |
| Standby mode power demand | 0.5 W |
| Storage altitude | Up to 12,192 m |
| Sustainability specifications | At least 55% recycled aluminum; Contains ocean-bound plastic; Contains 20% recycled glass in the monitor panel; Molded paper pulp cushion inside box is made of 100% recycled or certified sources; Outside box and corrugated cushions are 100% from certified or recycled sources and recyclable; At least 90% post-consumer recycled plastic; Low halogen |
| Tilt | +18.8 to +46.2° |
| Total CO2e (kg) | 270 |
| Total CO2e (kg) note | A product carbon footprint is defined as the total amount of greenhouse gases emitted directly and indirectly by a product over its lifetime. Greenhouse gas emissions are reported as global warming potential for 100-year time horizon (GWP-100) in units of CO2 equivalence. Calculations are done in accordance with ISO 14040 & ISO 14044. Individual values may not sum to total due to rounding. |
| Transportation CO2e (kg) | 2 |
| UNSPSC code | 43211902 |
| UPC number | 198990467771 |
| Vertical viewing angle | 178° |
| Video connectors | USB Type-C® |
| Viewable diagonal size | 14" (35.56 cm) |
| Weight | 0.63 kg |
| What's in the box | Monitor; Warranty card; Quick Setup Poster; 1 USB Type-C® to Type-C cable; Hard screen cover |
