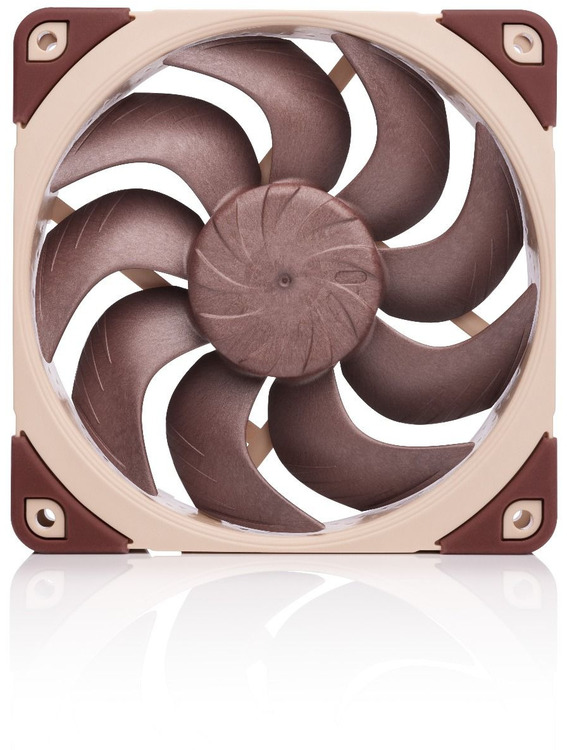

120mm Noctua NF-A12X25 G2 PWM Case Fan
Web ID: 46982
Fan Size: 120mm
Colour: Brown
Manufacturer Warranty: 6 Year
Manufacturer PN: NF-A12X25 G2 PWM
GTIN: 841501110689
Manufacturer Website
$75
| Size | 120×120×25 mm |
| Mounting Hole Spacing | 105×105 mm |
| Connector & Pin Configuration | 4-pin PWM |
| Cable Length | 20 cm + 30 cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade Geometry | Progressive-Bend Impeller |
| Frame Technology | AAO (Advanced Acoustic Optimisation) |
| Material | Sterrox® LCP |
| Rotational Speed (+/- 10%) | 1800 RPM |
| Rotational Speed with L.N.A. (+/- 10%) | 1500 RPM |
| Airflow | 107.3 m³/h |
| Airflow with L.N.A. | 87.2 m³/h |
| Acoustical Noise | 22.5 dB(A) |
| Acoustical Noise with L.N.A. | 18.1 dB(A) |
| Static Pressure | 3.14 mm H2O |
| Static Pressure with L.N.A. | 1.71 mm H2O |
| Input Power (Max.) | 1.8 W |
| Max. Input Current | 0.15 A |
| Operating Voltage | 12 V |
| MTTF | > 150,000 h |
| Scope of Delivery | - NA-RC7 Low-Noise Adaptor (L.N.A.) - NA-YC1 4-pin PWM splitter cable - NA-EC1 30cm extension cable - 4× NA-AV2 anti-vibration mounts - NA-AVG1 anti-vibration gasket for water cooling radiators - Fan screws |
| Warranty | 6 years |
