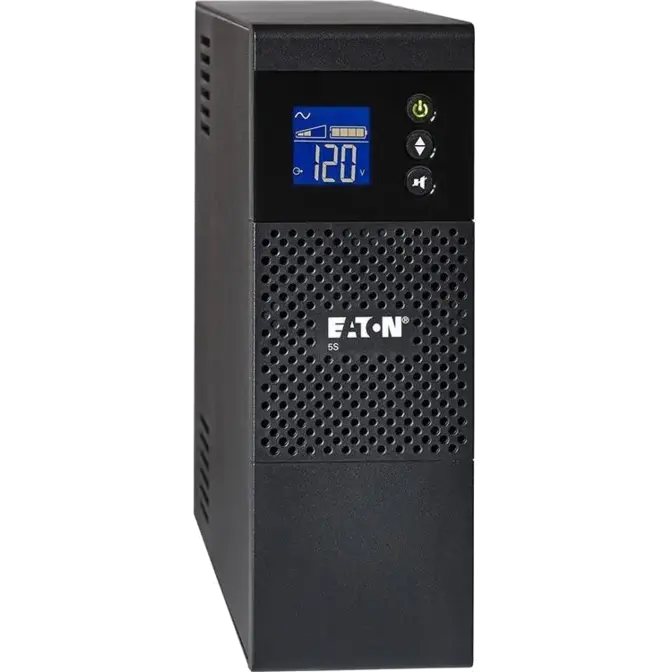

1200VA Eaton 5s Line Interactive UPS PN 5S1200AU

Eaton 5S UPS – Features

• Delivers consistent, clean output with Automatic Voltage Regulation (AVR)
• Saves space with a compact design that can be deployed as a tower or under a computer monitor
• HID-compliant USB port, for automatic integration with common operating systems
• Protects networked equipment from “back door” power surges coming through Ethernet, internet or telephone lines
• Extends UPS service life with replaceable batteries

General
Topology	Line-Interactive (AVR with Booster + Fader)
Configuration	Tower or under monitor
Part Number	5S1200AU
Color	Black
Rating (VA/Watts)	1200/720
Dimensions (H x W x D, mm)	250 x 87 x 382
Weight (kg)	11.08
Warranty	2 years warranty including batteries
Electrical Input
Connection	(1) Aust. 10A
Input Voltage Range	175V-275 V
Nominal Voltage	230 V
Operating Frequency	50-60 Hz autoselect
Electrical Output
Nominal Voltage	230 VAC
Output voltage regulation	230 V +/- 10%
Output Receptacles	(3) Aust. 10A (3) Aust. 10A surge only
Battery Management	Automatic battery test, deep-discharge protection, cold-start capable, replaceable batteries
Communications
Communication Ports	HID-compliant USB port for automatic integration with most common operating systems (Windows Vista, 7 & 8, Linux, Mac OS X), cable supplied
Environmental & Standards
Audible Noise	< 40 dB at 1 Meter
Operating Temperature	0 to 40°C
Safety markings	IEC/EN 62040-1, IEC/EN 62040 -5
Markings	CB Report, CE mark
Data Line Protection	Tel/Fax/Modem/Internet and Ethernet

Selecting the Right UPS

Eaton's power management solutions are based on protecting the nine most common power problems present in any environment. This unique approach makes your product selection decisions about power protection much simpler. The nine power problems listed below are potentially harmful to both your data and your hardware. Eaton's products offer three levels of power protection:

Series 3, Series 5 and Series 9. Based on the parameters defined by your application, you can select an uninterruptible power system (UPS) from the series that best matches your power protection needs.

To provide maximum power protection, Eaton offers a full line of Series 9 UPSs with both single-phase and three-phase models in the Series 9 family.

Within each Series, Eaton has created 3 classes of products; to provide "Good, Better and Best" levels of features and performance and enable the best product fit for any application and budget.

Series 3 Standby UPS: Backup power

The Eaton's series 3 UPS primarily protects against three of the nine power problems including power failures, power sags and power surges. This essential, cost-effective protection is necessary in order to prevent damage such as data loss, file corruption, hardware damage and equipment shutoff. For example, if your utility fails you could lose all of your work-in-progress. The Series 3 UPS offers a degree of protection against the remaining power problems and is most commonly used to protect single workstations and point-of-sale (POS) equipment.

Series 5 Line Interactive UPS: Keeping it smooth

Eaton's series 5 UPS are most effective against five power problems (power failures, power sags, power surges, under-voltage and over-voltage) and offer a degree of protection against other power problems. Some of the damages you risk by not using a Series 5 UPS include premature hardware failure, data loss and corruption, data error, keyboard lockup, storage loss and system lockup. Series 5 UPSs are recommended for small network systems - all the way up to enterprise networking environments.

Series 9 On Line Double Conversion UPS: Total Protection

Eaton's series 9 UPSs protect against all nine power problems: power failures. power sags, power surges, under-voltage, over-voltage, line noise, frequency variation, switching transients and harmonic distortion. Eaton's series 9 comprehensive protection minimises the opportunity for component stress, burnt circuit boards, data crashes and program failures. Series 9 UPSs offer the highest level of power protection available and are always recommended for mission-critical applications like server farms, hospitals and Voice Over Internet Protocol (VOIP) applications.
