| General | |

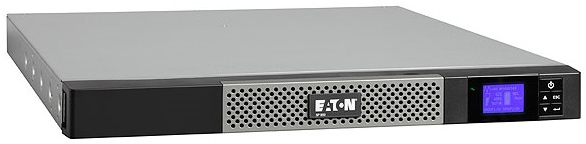

| Topology | Line-Interactive High Frequency (Pure Sinewave, Booster + Fader) |
| Configuration | Rack 1U |
| Part Number | 5P1150iR |
| Rating (VA/Watts) | 1150/770 |
| Dimensions (H x W x D, mm) | 43.2 x 438 x 509 |
| Weight (kg) | 14.6 |
| Warranty | 3 years on electronics, 2 years on batteries |
| Contents (Ships with the following items) |
5P UPS Eaton Intelligent Power Software CD USB cable Serial cable Safety guide Quick start guide CD with 10-language user manual |
| Electrical Input | |
| Connection |
(1) IEC-320-C14
|
| Input Voltage Without Using Batteries | 160V-294V (adjustable to 150V-294V) |
| Input frequency Range Without Using Batteries | 47 to 70Hz (50 Hz system), 56.5 to 70Hz (60 Hz system), 40Hz in low-sensitivity mode |
| Electrical Output | |
| Voltages | 230 V (+6/-10 %) (Adjustable to 200V / 220V / 230V / 240V) |
| Output Receptacles |
(6) IEC-320-C13
|
| Remotely controlled sockets | 2 groups C13 (10 A) output receptacles, grouped 2+1 |
| Output Frequency | 50/60 Hz +/- 0.1 % (autosensing) |
Load (Watts)
Battery runtimes are approximate and may vary with equipment, configuration, battery age, temperature, etc.
Load (Watts): 134
Standard Runtime: 41 |
|||
| Battery Management | ABM® & temperature compensated charging method (user selectable), automatic battery test, deep discharge protection | ||
| Cold start (No mains power) | Yes | ||
| Communications | |||
| User Interface | 3 LEDS + Multilingual LCD : access to measures, alarm messages and customization | ||
| Communication Ports | 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously), 1 mini-terminal block for remote ON/OFF and Remote Power Off | ||
| Communications Card Slots | 1 slot for Network-MS card, ModBus-MS or Relay-MS cards | ||
| Environmental & Standards | |||
| Audible Noise | < 40 dBA | ||
| Operating Temperature | 0 to 35°C | ||
| Safety markings | IEC/EN 62040-1 | ||
| EMC Markings | IEC/EN 62040-2 class B (EMC), IEC/EN 62040-3 (performance), C-Tick | ||
| Approvals | CE, CB report | ||
| Quality | Designed, manufactured and marketed under ISO9001 & ISO14001 quality system | ||
