General specifications
| Product Name |

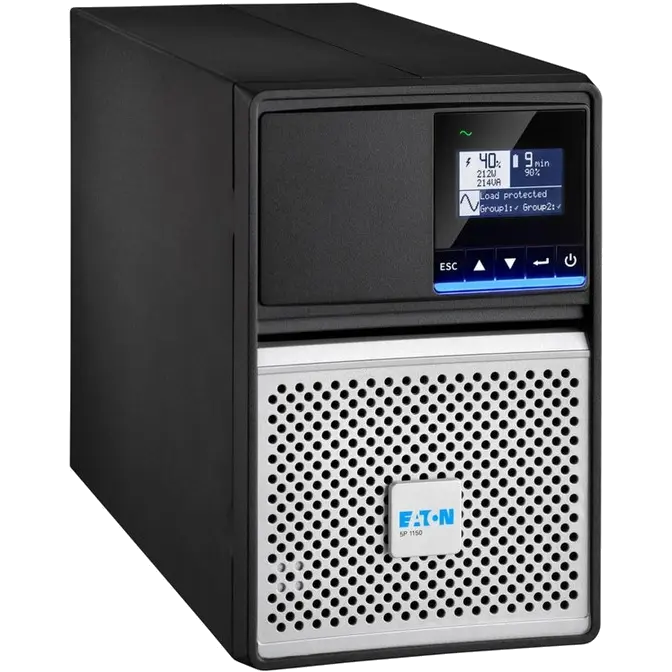

Eaton 5P Gen2 UPS |
| Catalog Number |
5P1150IG2 |
| EAN |
3553340710278 |
| Product Length/Depth |
345 mm |
| Product Height |
233 mm |
| Product Width |
150 mm |
| Product Weight |
11 kg |
| Warranty |
3 year on electronics, 2 year on battery |
| Compliances |
LVD Directive (CB) |
| Certifications |
IEC/EN 62040-1 |
Additional information
| Auto shutdown function |
Yes |
| Color |
Black/silver |
| Construction type |
Free standing model |
| Efficiency at max. load |
98.2 |
| Enclosure |
Black/silver |
| Package contents |
|
| Phase (input) |
1 |
| Phase (output) |
1 |
| Rack mounting kit |
No |
Battery specifications
| Battery management |
ABM or constant voltage charging method (user selectable), automatic battery test, deep discharge protection |
| Battery quantity |
2 |
| Battery rating |
12 V / 9 Ah |
| Battery replacement |
User replaceable |
| Battery type |
Lead-acid maintenance-free (replaceable) |
| Extended battery capability |
No |
| Runtime graph |
Communication
| Communication |
|
| Ethernet interface |
No |
| Expansion slots |
One slot for optional communication card |
| Potential free switch contact |
Yes |
| Software compatibility |
Eaton Brightlayer Software suite |
| Type of interface |
LCD Display with blue backlight |
Electrical input
| Input connection |
C14 |
| Input frequency range |
47-70 Hz (50 Hz system), 56.5-70 Hz (60 Hz system), 40 Hz in low sensitivity mode |
| Input nominal voltage |
230V default (200/208/220/230/240V) |
| Input voltage range |
160-294 V (adjustable to 150 V-294 V) |
| Nominal frequency |
50-60 Hz |
Electrical output
| Output frequency |
50/60 Hz |
| Output nominal voltage |
230V default (200/208/220/230/240V) |
| Output voltage range |
230 V (+6%/-10%) |

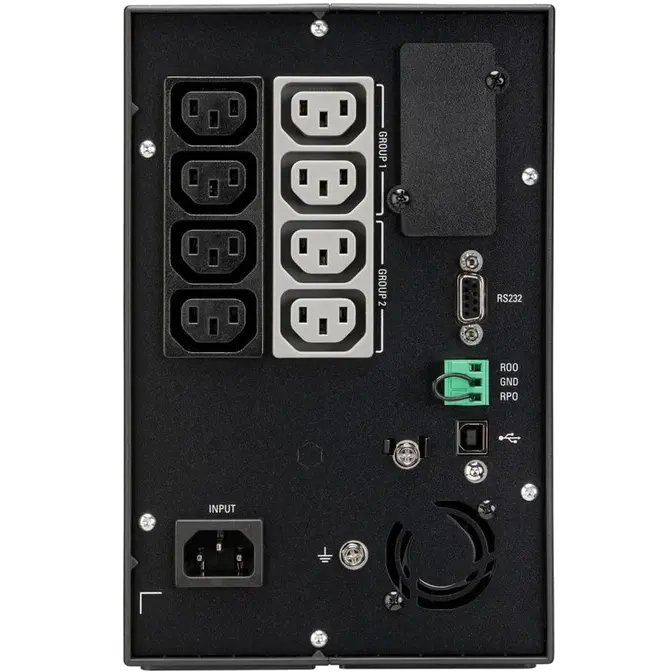

| Receptacle |
(8) C13 |
| Topology |
Line-interactive |
| Voltage |
230V |
| Wattage |
920 W |
Environmental
| Altitude |
3000 m |
| Noise level |
<35 dB at 1 meter |
| Relative humidity |
0-90% non-condensing |
| Temperature range |
0° to 40°C (32° to 104°F) |
| BTU Rating |
Online: 63, Battery: 465 BTU/hr |
