| General |
|
| Phase |
Single Phase |
| Form Factor |
Rackmount, Tower |
| UPS Topology |
Line-interactive |
| Energy Saving Technology |
GreenPower UPS™ Bypass Technology |
| Active PFC Compatibility |
Yes |
| Input |
|
| Nominal Input Voltage ( Vac ) |
200, 208, 220, 230, 240 |
| Input Voltage Range (At specific volt) |
For 220/230/240V systems: 159 ~ 288 Vac
For 200/208V systems: 148 ~ 254 Vac |
| Adjustable Voltage Range ( Vac ) |
For 220/230/240V systems: 151 ~ 302 Vac
For 200/208V systems: 131 ~ 268 Vac |
| Input Frequency ( Hz ) |
50 ± 3, 60 ± 3 |
| Input Frequency Detection |
Auto-sensing |
| Rated Input Current ( A ) |
10 |
| Input Connector Type |
IEC C14 |
| Detachable Power Cord Plug Type |
AU x 1 |
| Power Cord Length (ft.) |
10 |
| Power Cord Length (m.) |
3 |
| Output |
|
| Capacity (VA) |
1000 |
| Capacity (Watts) |
1000 |
| On Battery Waveform |
Pure Sine Wave |
| On Battery Voltage(s) ( Vac ) |
200 ± 5 %
208 ± 5 %
220 ± 5 %
230 ± 5 %
240 ± 5 % |
| On Battery Frequency ( Hz ) |
50 ± 1%
60 ± 1% |
| Power Factor |
1 |
| Automatic Voltage Regulation (AVR) |
Double Boost, Single Buck |
| Overload Protection |
Internal Current Limiting, Circuit Breaker |

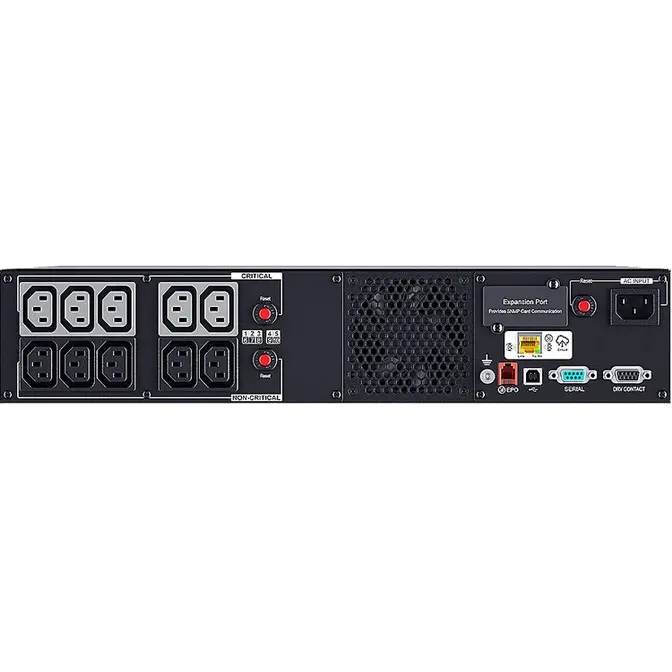

| Outlet(s) - Total |
10 |
| Outlet Type |
IEC C13 x 10 |
| Outlet(s) - Battery & Surge Protected |
10 |
| Outlet(s) - Critical Load (CL) |
5 |
| Outlet(s) - Non-critical Load (NCL) |
5 |
| Typical Transfer Time ( ms ) |
6 (At normal sensitivity) |
| Battery |
|
| Runtime at Half Load ( min ) |
20 |
| Runtime at Full Load ( min ) |
6.4 |
| Typical Recharge Time ( Hours ) |
3 (Recover to 90% after full load discharge) |
| Start On Battery |
Yes |
| Built-in Battery Management Module |
Yes |
| User-replaceable |
Yes |
| Hot-swappable |
Yes |
| Battery Cartridge (RBP) |
RBP0128 |
| Battery Cartridge (RBP) Quantity ( pcs ) |
1 |
| Battery Quantity (Each RBP) ( pcs ) |
4 |
| Surge Protection & Filtering |
|
| Surge Suppression ( Joules ) |
2430 |
| EMI/RFI Filtration |
Yes |
| Management & Communications |
|
| LCD Panel |
Yes |
| LCD Orientation |
Rotatable LCD – Manual |
| LCD Information Display |
Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log |
| LCD Setting & Control |
Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication, Language |
| LED Indicators |
Power On, Line Mode, Battery Mode, UPS Fault, Battery Fault |
| HID Compliant USB Port(s) |
1 |
| Serial Port |
RS232 |
| Dry Contact (with Relay) |
Yes |
| Emergency Power Off (EPO) Port |
Yes |
| Audible Alarms |
Battery Mode, Low Battery, Overload, Overcharge |
| Management Cable ( pcs ) |
Power Cord x3, USB Cable x1, EPO Cable x1 |
| Power Management Software |
PowerPanel Business (Recommended) |
| SNMP/HTTP Remote Monitoring |
Yes - with optional RMCARD205 |
| Remote Cloud Card |
Yes - Built-in Remote Cloud Card by Ethernet |
| PowerPanel Cloud Service |
Yes - 30 Days (UPS) Free Trial + 3 Years (Remote Cloud Card) Free Service |
| Physical |
|
| Enclosure Construction |
Metal |
| Color |
Black |
| Rackmount Rail |
Yes |
| Rackmount Ears |
Yes |
| Physical Size - UPS Module |
|
| Dimensions (WxHxD) (in.) |
17.1 x 3.4 x 16.2 |
| Dimensions (WxHxD) (mm.) |
433 x 86.5 x 412 |
| Weight (lbs.) |
49.4 |
| Weight (kg.) |
22.4 |
| Installed Rack Height ( U ) |
2 |
| Shipping Dimensions |
|
| Dimensions (WxHxD) (in.) |
22.1 x 10.8 x 20.9 |
| Dimensions (WxHxD) (mm.) |
560 x 275 x 530 |
| Weight (lbs.) |
63.9 |
| Weight (kg.) |
29 |
| Environmental |
|
| Operating Temperature (°F) |
32 ~ 104 |
| Operating Temperature (°C) |
0 ~ 40 |
| Operating Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
| Operating Elevation ( feet/meters ) |
0-9,843 feet (0-3,000 meters) |
| Storage Temperature (°F) |
5 ~ 113 |
| Storage Temperature (°C) |
-15 ~ 45 |
| Storage Relative Humidity (Non-condensing) ( % ) |
0 ~ 95 |
| Storage Elevation ( feet/meters ) |
0-49,213 feet (0-15,000 meters) |
| Online Thermal Dissipation ( BTU/hr ) |
48.6 |
| Audible Noise at 1.0M from Surface of Unit ( dBA ) |
52.5 (Virtually silent during normal operation) |
| Audible Noise at 1.0M from Surface of Unit |
38.5~52.5 |
| Certifications |
|
| Certifications |
CE, FCC Class B, UL, cUL, RCM, VCCI |
| RoHS |
Yes |
