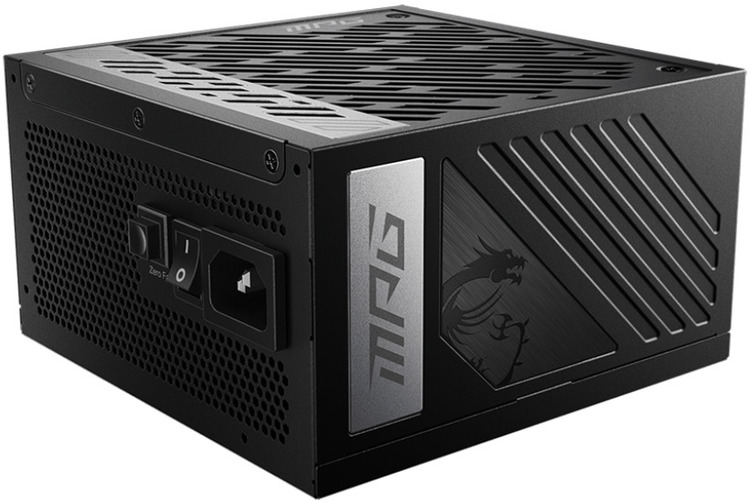

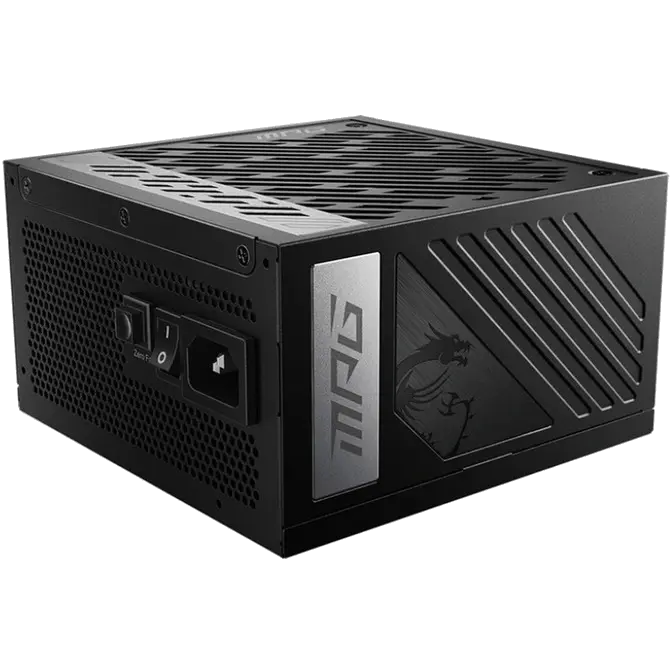

1000 Watt MSI MPG A1000G Gold Gen5 Modular Power Supply Black
Web ID: 43540
- Supports Nvidia GeForce RTXTM 40 Series graphics cards
- Full modular design
- Flat cables
- 80 Plus Gold certified for high efficiency
- 100% all Japanese 105oC capacitor
- Active PFC design
- Industrial level protection with OVP,OCP,OPP,OTP, SCP,UVP
- LLC Half Bridge Topology with DC-DC module design
Manufacturer Warranty: 10 Year
Manufacturer PN: MPG A1000G PCIE5
GTIN: 824142293126
Manufacturer Website
$289
| Efficiency Rating |
80 PLUS Gold (up to 90%) |
| Modular |
Yes (fully modular) |
| Fan Size |
135 mm |
| Fan Bearing |
Fluid Dynamic Bearing |
| Dimensions (DxWxH) |
150 x 150 x 86 mm |
| PFC Type |
Active PFC |
| Input Voltage Range |
100~240 VAC |
| Power Watt |
1000W |
| Power Excursion |
2000W (*up to 200% of the PSU's rated power for 100μs) |
| Input Frequency Range |
50~60 Hz |
| Protection |
OCP / OVP / OPP / OTP / SCP / UVP |

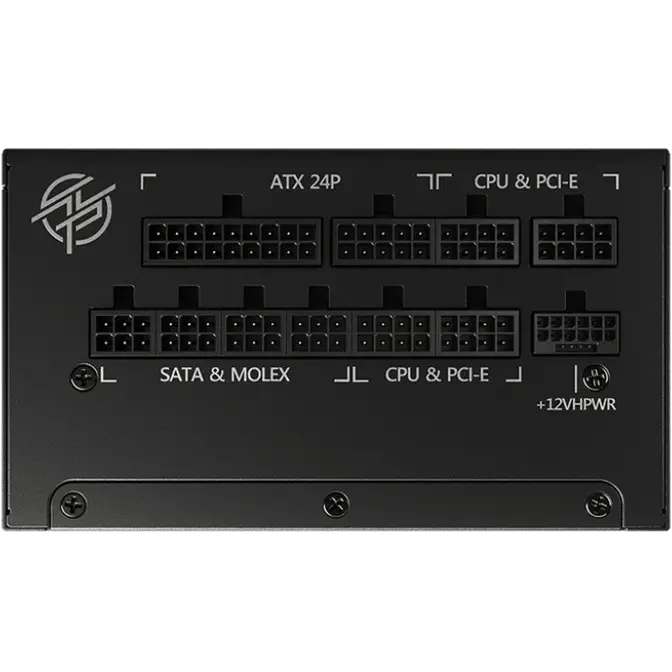

| ATX (24 pin) |
1 |
| EPS (4+4 pin) |
2 |
| PCI-E 5.0 (16 pin) |
1 (600W) |
| PCI-E (6+2 pin) |
6 |
| SATA (15 pin) |
12 |
| MOLEX (4 pin) |
4 |
| FDD (4 pin) |
1 |
