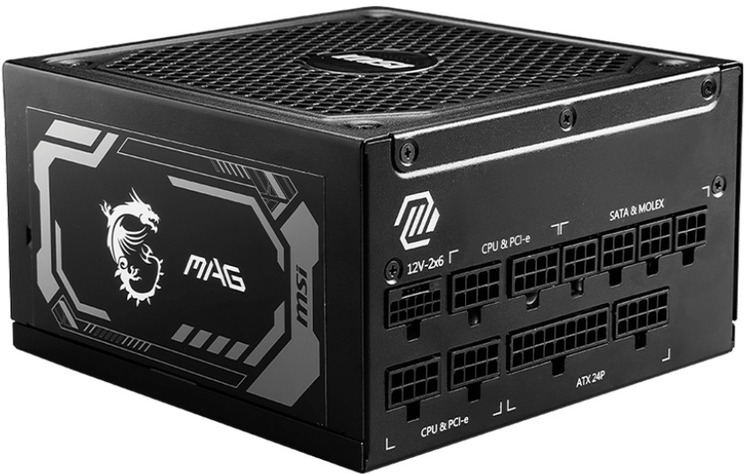

1000 Watt MSI MAG A1000GL Gold Full Modular Gen5 Power Supply
Web ID: 39277
ATX 3.1 ready, native dual-color PCIe CEM 5.1 connector
Supports NVIDIA GeForce RTX 40 series graphics cards
Fully modular design, flat cables
80 PLUS Gold certified for high efficiency
Active PFC design
Protection with OVP / OCP / OPP / OTP / SCP / UVP
135 mm fluid dynamic bearing fan
LLC full bridge topology with DC-to-DC module design
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 5 Year
Manufacturer PN: MAG A1000GL PCIE5
Manufacturer Website
$249
| EFFICIENCY RATING |
80 PLUS Gold (up to 90%) |
| MODULAR |
Yes (fully modular) |
| FAN SIZE |
135 mm |
| FAN BEARING |
Fluid Dynamic Bearing |
| DIMENSIONS (DXWXH) |
150 x 150 x 86 mm |
| PFC TYPE |
Active PFC |
| INPUT VOLTAGE RANGE |
100-240V~ |
| POWER WATT |
1000W |
| POWER EXCURSION |
2000W (*up to 200% of the PSU's rated power for 100μs) |
| INPUT FREQUENCY RANGE |
50-60Hz |
| PROTECTION |
OCP / OVP / OPP / OTP / SCP / UVP |

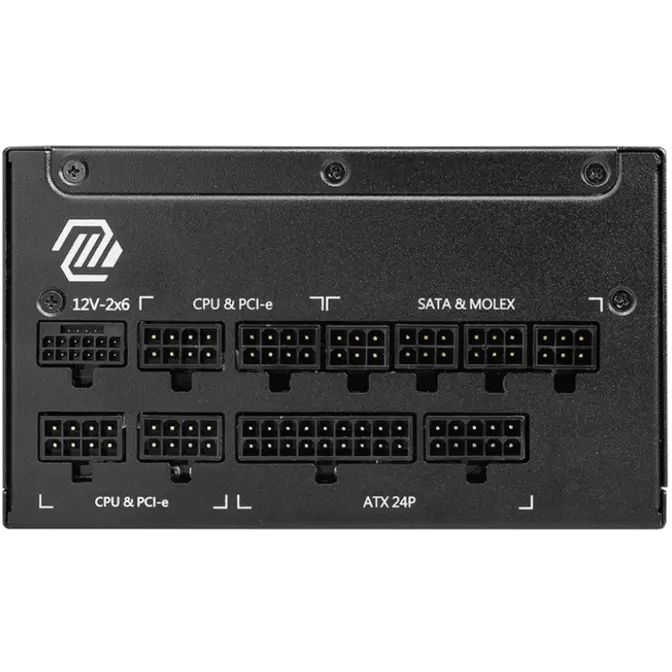

| ATX (24 PIN) |
1 |
| EPS (4+4 PIN) |
2 |
| PCI-E 5.1 (16 PIN) |
1 (600W) |
| PCI-E (6+2 PIN) |
4 |
| SATA (15 PIN) |
12 |
| MOLEX (4 PIN) |
4 |
| FDD (4 PIN) |
1 |
