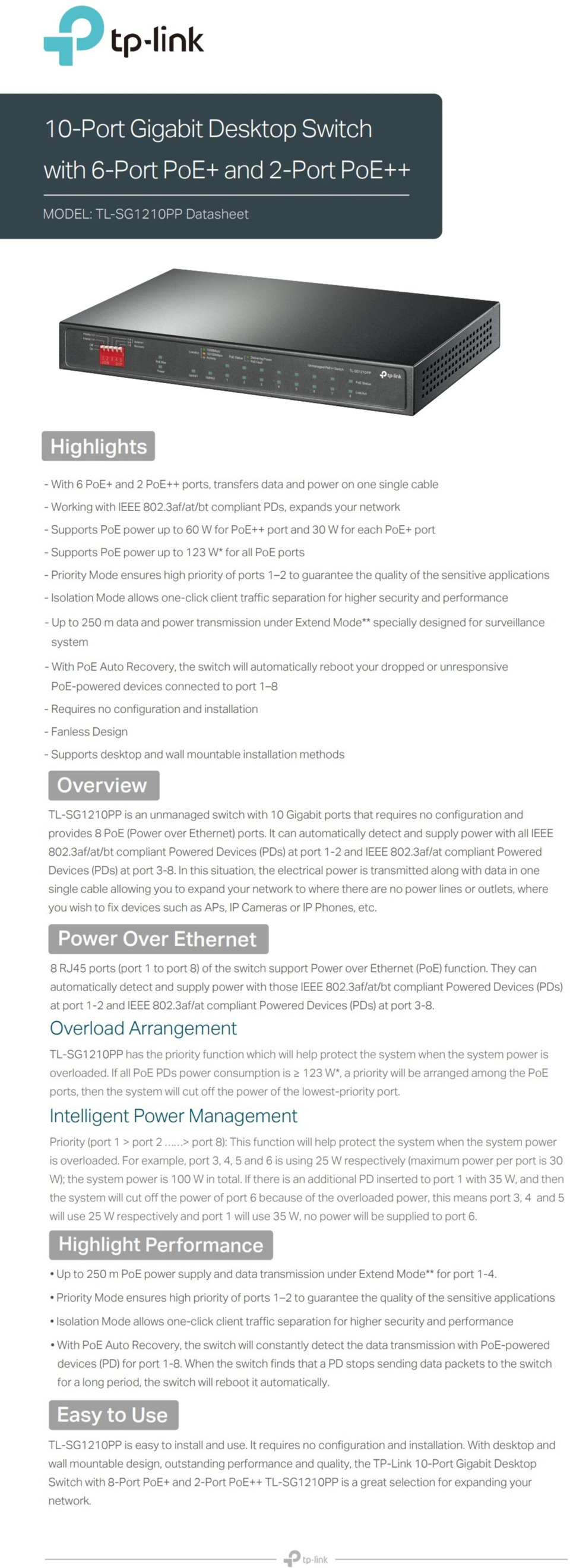

10-Port TP-Link TL-SG1210PP Gigabit Desktop Switch with 6-Port PoE+ and 2-Port PoE++
Web ID: 37009
TP-Link TL-SG1210PP 10 Port Gigabit Unmanaged Switch, 9x Gigabit Ports with 6x PoE+ and 2x PoE++, 1x Gigabit SFP Combo Port, Total PoE Budget 123 Watts CASH PRICE
Manufacturer Warranty: 5 Year
Manufacturer PN: TL-SG1210PP
GTIN: 4895252500349
Manufacturer Website
$199SAVE $20
| HARDWARE FEATURES | |
|---|---|
| Interface | • 9× 10/100/1000Mbps RJ45 Ports, 1× 1000Mbps Combo SFP/RJ45 Port • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| External Power Supply | External Power Adapter (Output: 53.5 VDC / 2.43 A) |
| Packet Forwarding Rate | 14.88 Mpps |
| PoE Ports (RJ45) | • Port 1-2 compliance with 802.3af/at/bt; Ports 3-8 compliance with 802.3af/at • Power Supply: 123 W |
| Mac Address Table | 4K |
| Switching Capacity | 20 Gbps |
| Dimensions ( W x D x H ) | 8.2 x 5.0 x 1.0 in (209 x 126 x 26 mm) |
| Max Power Consumption | • 8.7 W (220/50 Hz. no PD connected) • 144.1 W (220/50 Hz. with 123 W PD connected) |
| Max Heat Dissipation | • 29.67 BTU/h (220/50 Hz. no PD connected) • 491.38 BTU/h (220/50 Hz. with 123 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Advanced Features | • Compatible With IEEE 802.3af/at/bt Compliant PDs • Mac Address Auto-Learning And Auto-Aging • IEEE 802.3x Flow Control • 802.1p/DSCP QoS • IGMP Snooping • Extend Mode Button (Ports 1–4, Up to 250 m PoE power supply and data transmission) • PoE Auto Recovery (Ports 1-8) • Isolation Mode (Ports 1-4/5-8) • Priority Mode (Ports 1-2) |
| Transfer Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SG1210PP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0–40 ? (32–104 ?); • Storage Temperature: -40–70 ? (-40–158 ?) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing |
