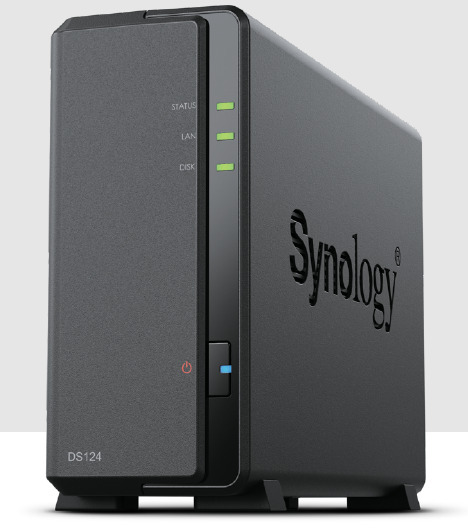

1 Bay Synology DS124 Gigabit NAS Unit
Web ID: 36541
Bring scattered data under control with
the DS124, a super compact data hub that
empowers effortless data centralization,
organization, and sharing. License-free
solutions in Synology DiskStation Manager
(DSM) allow you to establish a secure private
cloud, conveniently access files from any
device, and collaborate seamlessly with
partners or clients.
Manufacturer Warranty: 2 Year
Manufacturer PN: DS124
GTIN: 846504005017
Centralized Data Hub with Anytime Access
Securely and conveniently store any type of data with the aid of our
comprehensive and intuitive access and management tools.
• Access your storage securely from anywhere without configuring complex
port forwarding rules by enabling Synology QuickConnect
• Browse and manage your files from any browser or through Windows File
Explorer, Finder on Mac, and more
• Keep photos organized using Synology Photos’ smart sorting functions
• Easily incorporate into existing network infrastructure as edge storage
thanks to Windows AD and LDAP support
Hardware
CPU Realtek RTD1619B
Memory 1 GB DDR4
Compatible drive types
• 1 x 3.5" or 2.5" SATA SSD/HDD (drives not included)4
• Synology only guarantees full functionality, reliability, and performance for Synology
drives listed on the compatibility list. The use of non-validated components may limit
certain functionality and result in data loss and system instability5
Hot swappable drives Yes
External ports 2 x USB 3.2 Gen 1 ports
Form factor Desktop
Size (HxWxD) 166 x 71 x 224 mm
Weight 0.7 kg
LAN ports 1 x 1GbE RJ-45
Wake on LAN/WAN Yes
Scheduled power on/off Yes
System fans 1 x (60 x 60 x 15 mm)
AC input power voltage 100 V to 240 V AC
Power frequency 50/60 Hz, single phase
Operating environment
• Temperature: 0°C to 40°C (32°F to 104°F)
• Relative humidity: 8% to 80% RH
Storage environment
• Temperature: -20°C to 60°C (-5°F to 140°F)
• Relative humidity: 5% to 95% RH
Maximum operating altitude 5,000 m (16,400 ft)
General DSM Specifications
Networking protocols
SMB, AFP, NFS, FTP, WebDAV, CalDAV, iSCSI, Telnet, SSH, SNMP, and VPN (PPTP,
OpenVPN™, L2TP)
File systems
• Internal: Btrfs, ext4
• External: Btrfs, ext4, ext3, FAT32, NTFS, HFS+, exFAT
Supported RAID types Basic
Storage management
• Max. single volume size: 108 TB
• Max. number of system snapshots: 4,0966
• Max. number of internal volumes: 1
File sharing capabilities
• Max. number of local user accounts: 1,024
• Max. number of local groups: 256
• Max. number of shared folders: 256
• Max. number of concurrent SMB/NFS/AFP/FTP connections: 200
Privileges Windows® Access Control List (ACL) and application privileges
Directory services
Connects with Windows® AD/LDAP servers enabling domain users to login via SMB/NFS/
AFP/FTP/File Station using their existing credentials
Security
Firewall, shared folder encryption, SMB encryption, FTP over SSL/TLS, SFTP, rsync over
SSH, login auto block, Let's Encrypt support, and HTTPS (customizable cipher suite)
Supported browsers
Google Chrome®, Firefox®, Microsoft Edge®, Safari® 14 and later, and Safari (iOS 14.0 and
later) on iPad, Chrome (Android™ 11.0 and later) on tablets
