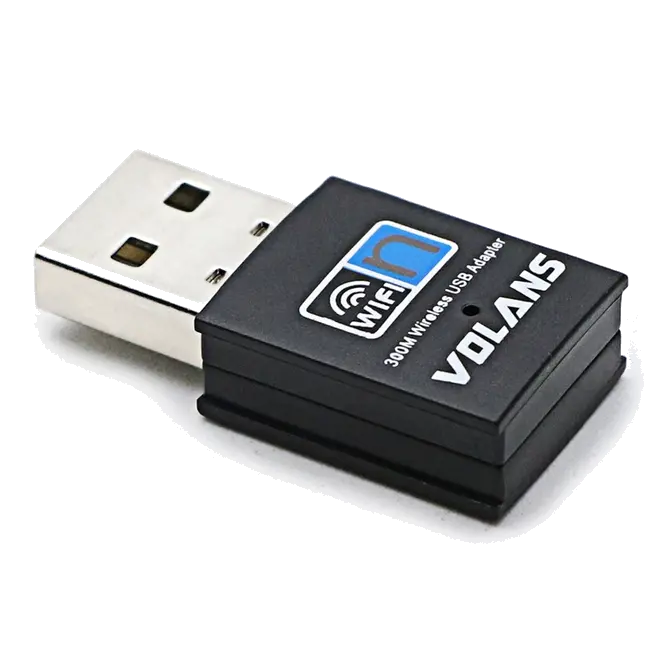

Volans VL-UW30-FD Wireless-N 300Mbps Mini USB Adapter

Web ID: 21845

Adding Wireless-N to your computer and provides wireless connection. Complies with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n standards. USB 2.0 interface, wireless N speed up to 300Mbps. Soft AP mode for local network sharing. 2×2 Multiple-Input Multiple-Output (MIMO) technology. Built-in omni-directional internal antenna for better performance. Supports 64/128-bit WEP, WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions. Easy to install, built-in driver with Windows 10 support.
Manufacturer Warranty: 1 Year
Manufacturer PN: VL-UW30-FD
Manufacturer Website

Description

02 03 04 05 5 06 07


WARRANTY INFORMATION
Warranty 1 Year
HARDWARE
Bus Type USB 2.0
Chipset Realtek RTL8192EU
Transmit Power 20dBm (MAX EIRP)
Wireless Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
 Frequency 2.4-2.4835GHz
 Signal Rate 11b: Up to 11Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
Antenna Internal 5dBi
 Spread Spectrum DSSS
Wireless Security 64/128-bit WEP
WPA-PSK / WPA2-PSK
WPA / WPA2
Modulation Technology BOSK, QPSK, CCK and OPDM (BPSK/QPSK/16-QAM/64-QAM)
Working Channel Number 13
Working Mode Infrastructure and Ad-Hoc
SOFTWARE
OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Mac OS® 10.6 to 10.12
Chrome OS™
Linux - Not Supported
SPECIAL NOTES / REQUIREMENTS
System and Cable Requirements Available USB port
INDICATORS
LED Indicators 1 – working status
ENVIRONMENTAL
Humidity Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Operating Temperature 0?~40? (32?~104?)
Storage Temperature -40?~70? (-40?~158?)
PHYSICAL CHARACTERISTICS
Color Black
Enclosure Type Plastic
Form Factor Compact
WHAT’S IN THE BOX
Included in Package 1 – VL-UW30-FD
  1 – Instruction Manual
