? 1-to-8 PWM connectors

? 2200?gF capacitor provides stable voltage

? Supports speed detection* for accurately controlling fans

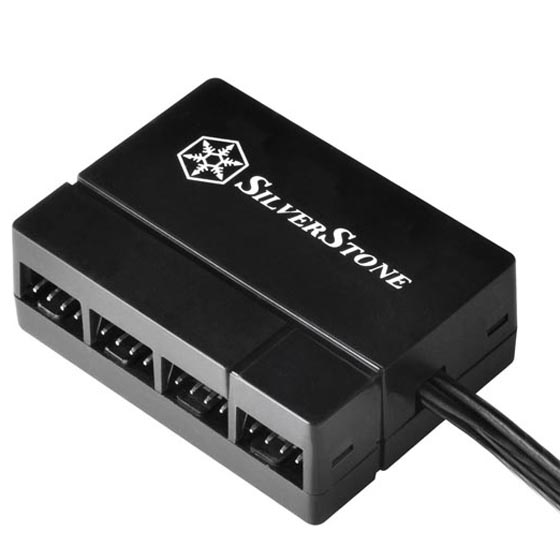

CPF04 is designed for enthusiasts with need for controlling numerous system fans. It is capable of expanding one motherboard PWM fan header to support up to eight fans. Powered directly by SATA cable from the computer power supply and filtered through a built-in 2200?gF capacitor, the CPF04 can provide clean, stable voltage to any fan for optimal performance. Equipped with speed detection* sensors for accurately controlling eight PWM fans simultaneously, it is an excellent solution for system fan expansion.

Model No.	SST-CPF04
Color	Black
Connectors	PWM 4pin connector x 1 to motherboard SATA power cable x 1 to PSU PWM 4pin header x 8, compatible with 3pin cable*
Length	PWM cable 500mm, SATA power cable 300mm
Capacitor size	2200?gF
Dimension	54mm (W) x 19mm (H) x 40mm (D) 2.13" (W) x 0.75" (H) x 1.57" (D)

Remark :

* Only header on glossy side support speed detection.
* Fan will not start unless SATA power cable is connected. Speed detection and PWM speed control are functional only when motherboard is connected.
* Speed control function is unavailable for 3 pin fans.

Warranty Information

1 Year

Manufacturers Warranty

Silverstone CPF04 1-to-8 PWM Fan Hub
