GPU

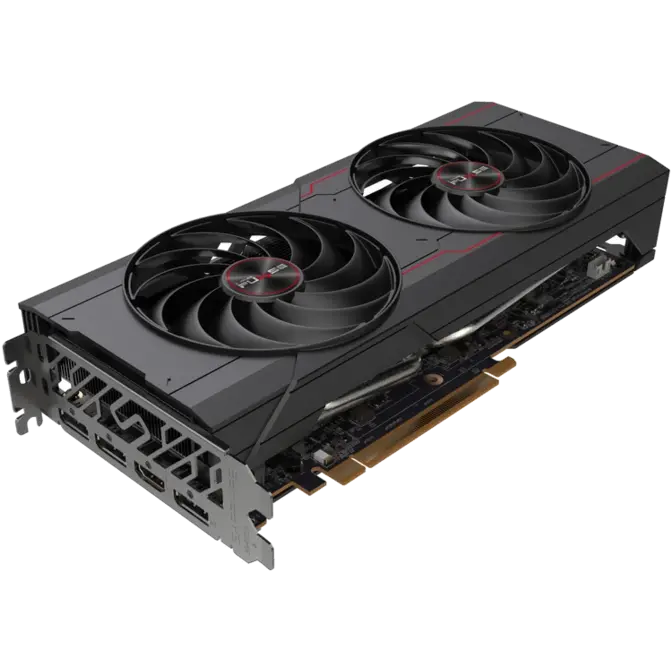

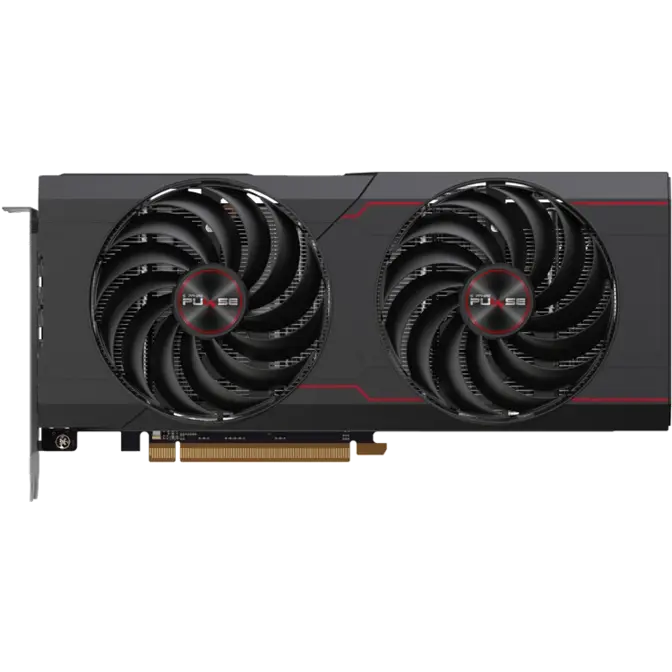

AMD Radeon™ RX 6700 Graphics Card
7nm GPU
AMD RDNA™ 2 Architecture

Engine Clock

• Boost Clock: Up to 2495 MHz
• Game Clock: Up to 2330 MHz

Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

2304

Infinity Cache

80MB

Ray Accelerators

36

Memory Size/Bus

10GB GDDR6

Memory Clock

16 Gbps Effective

Displays

Maximum 4 Displays

Resolution

• HDMI™: 7680×4320
• DisplayPort1.4: 7680×4320

Interface

PCI-Express 4.0 x16

Output

• 1x HDMI
• 3x DisplayPort

BIOS Support

• UEFI

Game Index

4K

Sapphire Features

• Premium Digital Power Design

• Fuse Protection

• Dual-X Cooling Technology

• Intelligent Fan Control

• Precision Fan Control

• Metal Backplate

• Two-Ball Bearing Fans

• Integrated Cooling Module

• TriXX Supported

• TriXX Boost

AMD Features

• AMD RDNA™ 2 Gaming Architecture
• DirectX® 12 Ultimate
• Hardware Raytracing
• Smart Access Memory
• Infinity Cache
• 7nm GPU
• PCI® Express 4.0 Support
• AMD FreeSync™ Technology
• DisplayPort™ 1.4 with DSC
• HDMI™ 2.1 VRR
• Video Streaming up to 8K
• Radeon™ VR Ready Premium
• AMD FidelityFX
• Radeon™ Image Sharpening
• Radeon™ Anti-Lag
• Radeon™ Software
• Game Driver Optimizations

Cooling

Dual Fans

Form Factor

2.2 slot, ATX
Dimension: 260(L)X 119.85(W)X 49(H)mm

Power Consumption

• 220W (Board Power)

OS

Linux®, Windows® 7* and Windows® 10/11, 64-bit  operating system required

*Does not support all features including but not limited to Hardware Raytracing

System Requirement

• Minimum 650 Watt Power Supply
• 1 x 8-pin Power Connector.
• PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
• Minimum 8GB of system memory. 16GB recommended.
