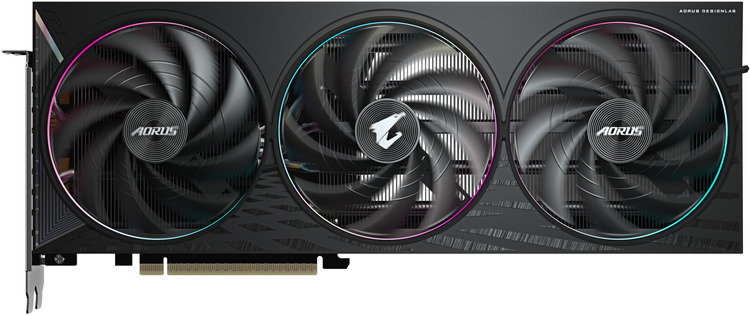

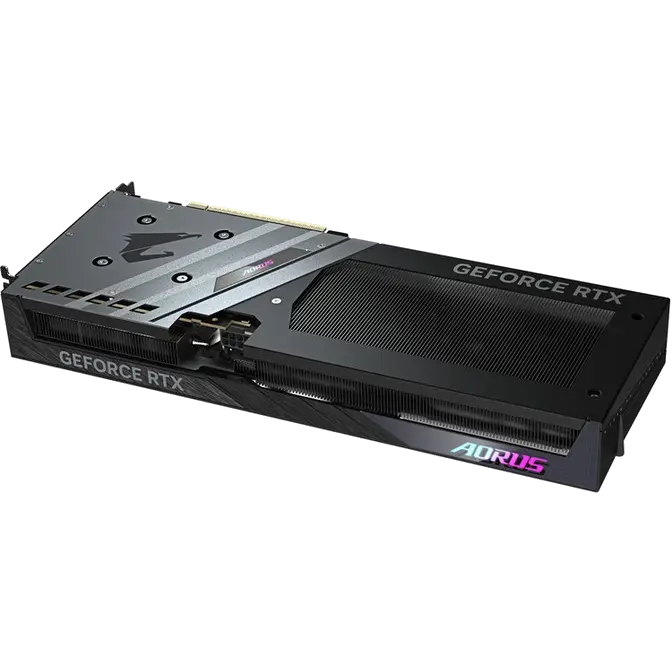

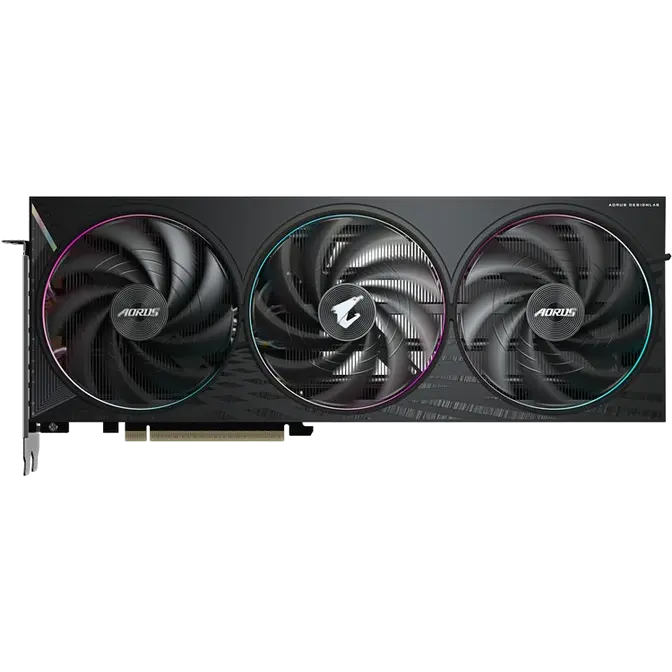

Gigabyte AORUS GeForce RTX 5060 Ti ELITE 16G Graphics Card, Limit 1 per customer
Web ID: 45440
NVIDIA Series: NVIDIA RTX 5060 Ti
VRAM Size: 16GB GDDR7 28Gbps
Display Output: 1 x HDMI Out || 3 x DisplayPort Out
Max. Displays: 4 Displays
PCIe: PCIe 5.0x8
GPU Technology: DLSS 4
Minimum PSU: 650 Watt
GPU Length: 330mm
ONLY WHILE STOCKS LAST!
Manufacturer Warranty: 3 Year
Manufacturer PN: N506TAORUS E-16GD
$999
| Model Name | GV-N506TAORUS E-16GD |
| Model Ver | 1.0 |
| Tiptop Name | 9VN506TAE-00-G10 |
| Marketing Name | AORUS GeForce RTX 5060 Ti ELITE 16G |
| GPU | RTX 5060 Ti |
| Core Clock (MHz) | 2722 |
| Cuda Core | TBD |
| Mem Clock (MHz) | 28000 |
| Mem Size (GB) | 16 |
| Mem Bus (bit) | 128 |
| Mem Type | 512 M x32 GDDR7 |
| Memory (pcs) | 8 |
| I/O | HDMI(Gold Plated)x1, DP(Gold Plated)x3 |
| DirectX / OpenGL | DirectX 12 / OpenGL 4.6 |
| Card Interface | PCI Express 5.0 x8 |
| Board Form | ATX 2 slot |
| Fan/Heat Sink | WINDFORCE 3X |
| System PSU Limitation (W) | 650 |
| Tools | GIGABYTE CONTROL CENTER |
| GPU-TDP (W) | 135 (Default) |
| Total Graphics Power-TGP (W) | 180 (Default) |
| PCB Size (mm) | 145x111 |
| Card Size (mm) | H=41 L=329 W=128 |
| Warranty | 4 Years (register) |
| EAN Code | 4719331356125 |
| UPC Code | 889523049419 |
| Power Connector | 8 Pin |
| Card Weight (kg) | 1.01 |
| Gross Weight (Color Box) (kg) | 1.68 |
