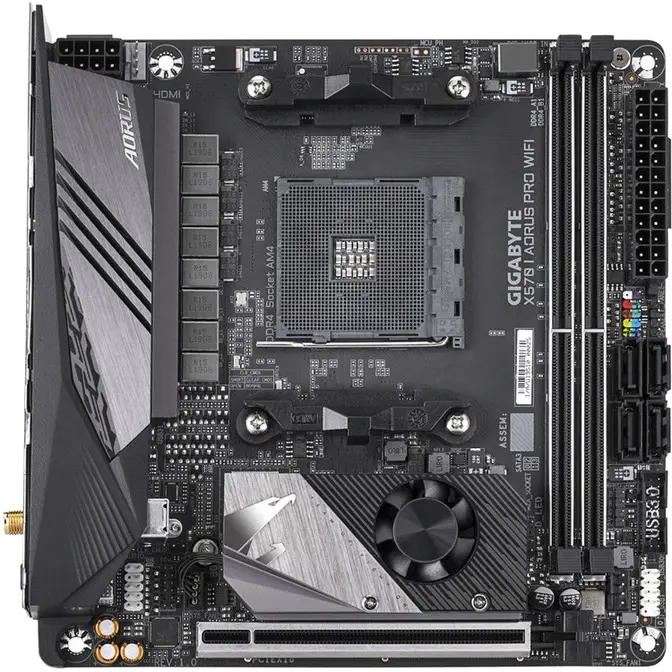

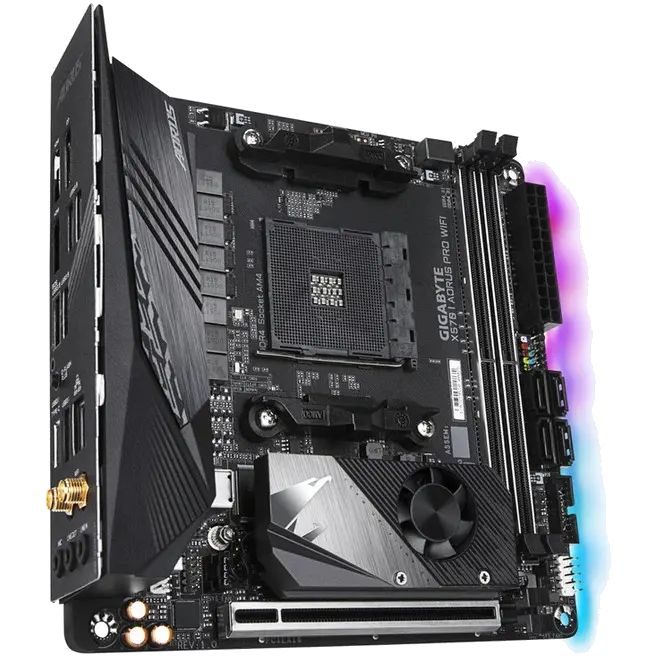

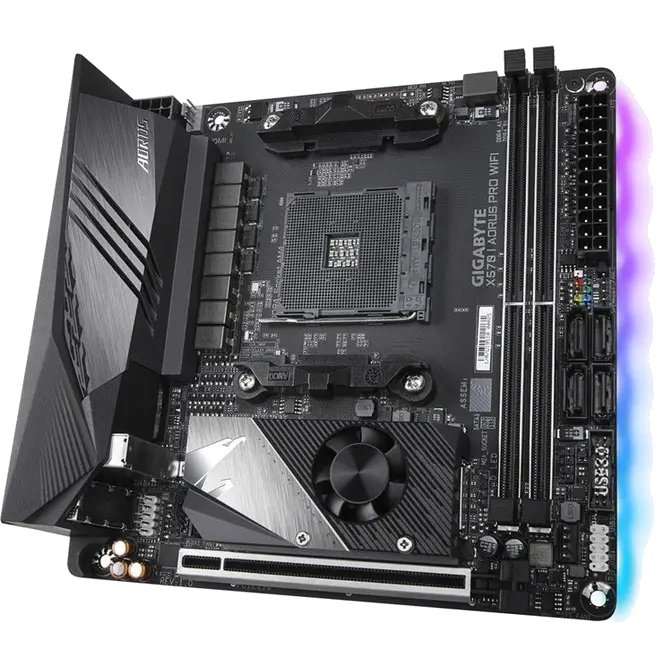

Gigabyte AM4 Mini-ITX X570 I AORUS PRO WiFi DDR4 Motherboard

Web ID: 25991

AMD Ryzen AM4 Socket, X570 Chipset, 2 x DDR4 Memory slots, 1 x PCIe 4.0/3.0 x16 slot, 1 x M.2 SATA/PCIe 4.0/3.0 Slot, 1 x M.2 SATA/PCIe, 4 x SATA 6Gbps, RAID 0, 1, 10, 2 x HDMI, DisplayPort, Gigabit LAN, Wireless-AX, Bluetooth v5, 1 x USB 3.2 (Gen2) Type-C, 1 x USB 3.1 (Gen2) Type-A, 6 x USB 3.2 (Gen1) Type-A (4 via back panel, 2 via internal header), 2 x USB 2.0 (via internal header), 7.1 Channel High Definition Audio, Mini ITX Form Factor
Manufacturer Warranty: 3 Year
Manufacturer PN: X570 I AORUS PRO WiFi
GTIN: 889523018040
Manufacturer Website

$389SAVE $40

DESIGN CONCEPT

Dominant in Darkness

gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard


In the dark, starless night, the falcon strikes fear into the heart of its prey. Even with minimal visibility, the falcon pinpoints its prey and patiently anticipates the perfect moment to swoop in for the kill. The falcon with its laser sharp gaze dominates the darkness of night in the same manner that AORUS Core Lighting illuminates the vast AORUS ecosystem.


GET READY FOR AMD RYZEN™ 3000-SERIES
GIGABYTE X570 motherboards based on the AMD X570 Chipset provide full support for 3rd Gen AMD Ryzen™ Processors. The all-new design is a testament to GIGABYTE's dedication to design quality. GIGABYTE X570 motherboards offer a rich list of features such as support for PCIe 4.0 and USB Type-C™ interfaces on select boards, refined audio, high speed of Ethernet and latest standard of WIFI design, to fulfill users' performance, audio, and data transfer needs. The new, advanced power and thermal design enables users to unleash the performance on AMD Ryzen™ 3000-series Processors, making the GIGABYTE X570 motherboards perfect for users looking to build the best AMD platform gaming system.
gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard
AMD StoreMI Technology
gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard GIGABYTE X570 motherboards maximize your PC's potential with AMD StoreMI technology. StoreMI accelerates traditional storage devices to reduce boot times and enhance the overall user experience. This easy-to-use utility combines the speed of SSDs with the high capacity of HDDs into a single drive, enhances the read/write speeds of the device to match that of SSDs, bolsters data performance for incredible value, and transforms the everyday PC to a performance driven system.

The benefits of AMD StoreMI:
• Making the PC experience fast, smooth and easy
• Optimizing computer responsiveness from system boot to application launch
• Offering SSD performance with HDD capacity at an affordable cost
• Quickly accessing key files by automatically learning users' computing behaviors

AORUS PERFORMANCE

Ultimate Power Design
To unleash the full potential of the 3rd Generation of AMD Ryzen™ CPU, the motherboard requires the best CPU power design. With the best quality components and GIGABYTE R&D design capability, the X570 AORUS is a true beast among motherboards.


Direct 8 Phases Digital Power

Power Architecture

gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard


Advanced Thermal Design
On a small mini-ITX board, heat is easily trapped and thermal balance is not easy to achieve. To avoid thermal throttle, an improved thermal solution consisting of a heatsink with cuts, and multi-layered heatsink has been implemented on the X570 I AORUS PRO WIFI. With a LAIRD 1.5mm thick, 5W/mK high thermal conductivity pads, it can transfer 2.7x more heat compared to traditional thermal pads in the same time period.
gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard
Base plate + I/O Shield Armor
Durable design and easy installation
gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard



Full PCIe 4.0 Design
X570 AORUS pushes the envelope once again by featuring Full PCIe 4.0 Design, including PCIe 4.0 slots, PCIe 4.0 M.2 connectors, and delivering highly optimized performance and flexibility demanded for power users and extreme gaming enthusiasts.


gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard
AORUS CONNECTIVITY

Next Generation Connectivity
A high-end product needs to be future-proof so your system stays up-to-date with the latest technology. X570 AORUS motherboards provide all next generation network, storage, and WIFI connectivity to keep you up to speed.



gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard
AORUS AUDIO

gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard
High-End Audio Capacitors
AORUS motherboards use high-end audio capacitors. These high quality capacitors help deliver high resolution and high fidelity audio to provide the most realistic sound effects for gamers.
AORUS STYLE

gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard
RGB Fusion 2.0
With AORUS Motherboards, RGB Fusion 2.0 is even better with Addressable LEDs.* RGB Fusion 2.0 offers users the option to control onboard RGB and external RGB / Addressable LED light strips for their PC. Already feature filled with colors and patterns, RGB Fusion 2.0 on X570 Series AORUS Motherboards are now upgraded with Addressable LED support. With external digital LED strips*, where each LED is digitally addressable, users can experience even more patterns, styles, and illuminations.

AORUS Gaming Motherboards will support 5v digital LED lighting strips and up to 300 LED lights. RGB Fusion 2.0 with Addressable LEDs comes with new patterns and various speed settings with more to come.
* Addressable LEDs are available only on select Motherboards, external LED Strips, Addressable LED Strips are not included with Motherboard purchase.
Multi-Zone Light Show Design
Now offering more LED customizations than ever, users can truly adapt their PC to represent their lifestyle. With full RGB support and a redesigned RGB Fusion 2.0 application, the user has complete control over the LEDs which surround the motherboard. gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard


gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard

gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard

gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard


gigabyte am4 mini-itx x570 i aorus pro wifi ddr4 motherboard
CPU

  1. AMD Socket AM4, support for: 3rd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ processors/ 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/ AMD Ryzen™ with Radeon™ Vega Graphics processors
(Please refer "CPU Support List" for more information.)
  • Chipset

    1. AMD X570
  • Memory

    1. 3rd Generation AMD Ryzen™ processors:
      Support for DDR4 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules
    2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      Support for DDR4 3600(O.C.) / 3400(O.C.) / 3333(O.C.) / 3200(O.C.) / 2933 / 2667 / 2400 / 2133 MHz memory modules
    3. 2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    4. Dual channel memory architecture
    5. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    6. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    7. Support for Extreme Memory Profile (XMP) memory modules
    (Please refer "Memory Support List" for more information.)
  • Onboard Graphics

    Integrated Graphics Processor:
    1. 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
      * Support for DisplayPort 1.2 version.
    2. 2 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
      * Support for HDMI 2.0 version, HDCP 2.2, and HDR.
    Support for up to 3 displays at the same time
    Maximum shared memory of 16 GB

    * For 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors only.
  • Audio

    1. Realtek® ALC1220-VB codec
      * The back panel line out jack supports DSD audio.
    2. High Definition Audio
    3. 2/4/5.1/7.1-channel
      * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  • LAN

    1. Intel® GbE LAN chip (10/100/1000 Mbit)
  • Wireless Communication module

    1. Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band
    2. BLUETOOTH 5.0
    3. Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
      * Actual data rate may vary depending on environment and equipment.
  • Expansion Slots

    Integrated in the CPU (PCIEX16):
    1. 3rd Generation AMD Ryzen™ processors:
      1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    2. 2nd Generation AMD Ryzen™ processors:
      1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16)
    3. 2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16)
    Integrated in the Chipset:
    1. 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
  • Storage Interface

    Integrated in the CPU (M2A_SOCKET):
    1. 3rd Generation AMD Ryzen™ processors:
      1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 4.0 x4/x2 SSD support)
    2. 2nd Generation AMD Ryzen™ processors/2nd Generation AMD Ryzen™ with Radeon™ Vega Graphics processors/AMD Ryzen™ with Radeon™ Vega Graphics processors:
      1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x4/x2 SSD support)
    Integrated in the Chipset (M2B_SOCKET):
    1. 1 x M.2 connector on the back of the motherboard (Socket 3, M key, type 2260/2280 SATA and PCIe* x4/x2 SSD support)
      * For 3rd Generation AMD Ryzen™ processors only.
    2. 4 x SATA 6Gb/s connectors
    3. Support for RAID 0, RAID 1, and RAID 10
  • USB

    Integrated in the CPU:
    1. 4 x USB 3.2 Gen 1 ports on the back panel
    Integrated in the Chipset:
    1. 1 x USB Type-C™ port on the back panel, with USB 3.2 Gen 2 support
    2. 1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
    3. 2 x USB 3.2 Gen 1 ports available through the internal USB header
    4. 2 x USB 2.0/1.1 ports available through the internal USB header
  • Internal I/O Connectors

    1. 1 x 24-pin ATX main power connector
    2. 1 x 8-pin ATX 12V power connector
    3. 1 x CPU fan header
    4. 2 x system fan headers
    5. 1 x addressable LED strip header
    6. 1 x RGB LED strip header
    7. 4 x SATA 6Gb/s connectors
    8. 2 x M.2 Socket 3 connectors
    9. 1 x front panel header
    10. 1 x front panel audio header
    11. 1 x speaker header
    12. 1 x USB 3.2 Gen 1 header
    13. 1 x USB 2.0/1.1 header
    14. 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    15. 1 x Clear CMOS jumper

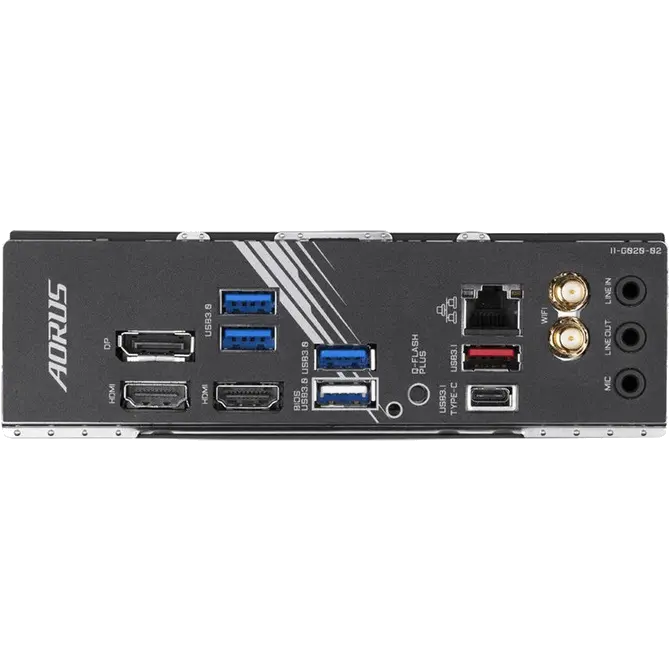

  • Back Panel Connectors

    1. 1 x DisplayPort
    2. 2 x HDMI ports
    3. 1 x USB 3.2 Gen 2 Type-A port (red)
    4. 4 x USB 3.2 Gen 1 ports
    5. 1 x USB Type-C™ port, with USB 3.2 Gen 2 support
    6. 1 x Q-Flash Plus button
    7. 1 x RJ-45 port
    8. 2 x SMA antenna connectors (2T2R)
    9. 3 x audio jacks
  • I/O Controller

    1. iTE® I/O Controller Chip
  • H/W Monitoring

    1. Voltage detection
    2. Temperature detection
    3. Fan speed detection
    4. Overheating warning
    5. Fan fail warning
    6. Fan speed control
      * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS

    1. 1 x 128 Mbit flash
    2. Use of licensed AMI UEFI BIOS
    3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features

    1. Support for APP Center
      * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
      @BIOS
      AutoGreen
      Cloud Station
      EasyTune
      Fast Boot
      Game Boost
      ON/OFF Charge
      RGB Fusion
      Smart Backup
      Smart Keyboard
      Smart Survey
      System Information Viewer
      USB Blocker
    2. Support for Q-Flash Plus
    3. Support for Q-Flash
    4. Support for Xpress Install
  • Bundled Software
    Bundled SoftwareNorton® Internet Security (OEM version)
    1. cFosSpeed
    2. XSplit Gamecaster + Broadcaster (12 months license)
  • Operating System

    1. Support for Windows 10 64-bit
  • Form Factor

    1. Mini-ITX Form Factor; 17.0cm x 17.0cm
  • Remark
    Remark
    1. Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.
    2. Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
