PC Components > CPUs > AMD AM5 Ryzen 7 9700X 8 Core 5.5GHz CPU 100-100001404WOF
SKU:42159
amd-am5-ryzen-7-9700x-8-core-5.5ghz-cpu-100-100001404wof-0
amd-am5-ryzen-7-9700x-8-core-5.5ghz-cpu-100-100001404wof-0

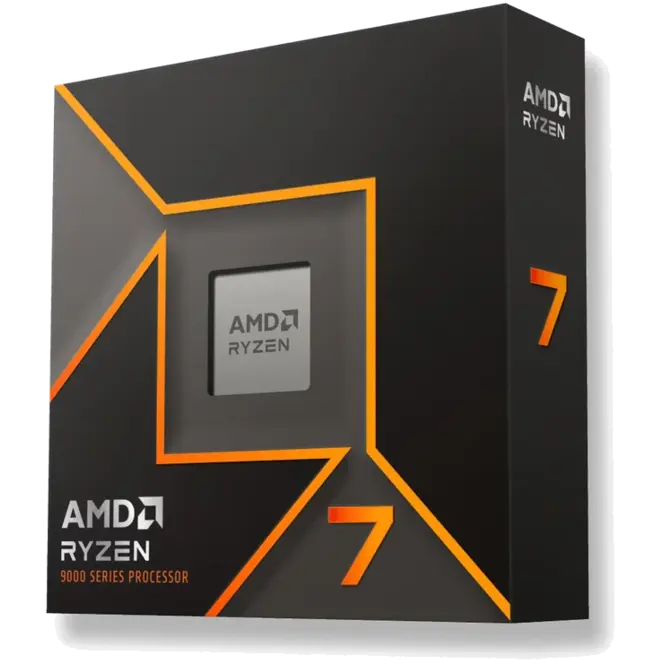

AMD AM5 Ryzen 7 9700X 8 Core 5.5GHz CPU 100-100001404WOF

amd-am5-ryzen-7-9700x-8-core-5.5ghz-cpu-100-100001404wof-0

Original price was: $479.Current price is: $455.

Free Shipping *T&Cs Apply

Click & Collect

In stock at Mt Gravatt

Delivery

Avaliable for Fast Dispatch

Free Shipping *T&Cs Apply
PN: 100-100001404WOF
GTIN: 730143315593

Login to add to Wishlist

Manufacturers Website

Buy Now, Pay Later. T&Cs Apply

ZIP Logo
Afterpay Logo
PayPal Icon
Product Line: AMD Ryzen 7 9000 Series Processor
Processor Technology for CPU Cores: TSMC 4nm FinFET
Max. Boost Clock: Up to 5.5GHz
Base Clock: 3.8GHz
CPU Socket: AM5
# of CPU Cores: 8
# of CPU Threads: 16
Cache: L1 640KB L2 8MB L3 32MB
Memory Support: DDR5 (Dual Channel)
Integrated Graphics: AMD Radeon Graphics

amd am5 ryzen 7 9700x 8 core 55ghz cpu 100-100001404wof

  •

    Name
    AMD Ryzen™ 7 9700X
    Family
    Ryzen
    Series
    Ryzen 9000 Series
    Form Factor
    Desktops , Boxed Processor
    Market Segment
    Enthusiast Desktop
    AMD PRO Technologies
    No
    Consumer Use
    Yes
    Regional Availability
    Global
    Former Codename
    Granite Ridge AM5
    Architecture
    Zen 5
    # of CPU Cores
    8
    Multithreading (SMT)
    Yes
    # of Threads
    16
    Max. Boost Clock
    Up to 5.5 GHz
    Base Clock
    3.8 GHz
    L1 Cache
    640 KB
    L2 Cache
    8 MB
    L3 Cache
    32 MB
    Default TDP
    65W
    Processor Technology for CPU Cores
    TSMC 4nm FinFET
    Processor Technology for I/O Die
    TSMC 6nm FinFET
    Package Die Count
    2
    Unlocked for Overclocking
    Yes
    AMD EXPO™ Memory Overclocking Technology
    Yes
    Precision Boost Overdrive
    Yes
    Curve Optimizer Voltage Offsets
    Yes
    AMD Ryzen™ Master Support
    Yes
    CPU Socket
    AM5
    Supporting Chipsets
    A620 , X670E , X670 , B650E , B650 , X870E , X870
    CPU Boost Technology
    Precision Boost 2
    Instruction Set
    x86-64
    Supported Extensions
    AES , AMD-V , AVX , AVX2 , AVX512 , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64
    Thermal Solution (PIB)
    Not Included
    Recommended Cooler
    Premium air cooler recommended for optimal performance
    Max. Operating Temperature (Tjmax)
    95°C
    *OS Support
    Windows 11 - 64-Bit Edition , Windows 10 - 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit

  •

    Native USB 3.2 Gen 2 (10Gbps) Ports
    4
    Native USB 2.0 (480Mbps) Ports
    1
    PCI Express® Version
    PCIe® 5.0
    Native PCIe® Lanes (Total/Usable)
    28 , 24
    Additional Usable PCIe Lanes from Motherboard

    X870E

    8x Gen4

    X870

    4x Gen4

    X670E

    12x Gen4

    X670

    12x Gen4

    B650E

    8x Gen4

    B650

    8x Gen4

    NVMe Support
    Boot , RAID0 , RAID1 , RAID5 , RAID10
    System Memory Type
    DDR5
    Memory Channels
    2
    Max. Memory
    192 GB
    System Memory Subtype
    UDIMM
    Max Memory Speed

    2x1R

    DDR5-5600

    2x2R

    DDR5-5600

    4x1R

    DDR5-3600

    4x2R

    DDR5-3600

    ECC Support
    Yes (Requires mobo support)

  •

    Graphics Model
    AMD Radeon™ Graphics
    Graphics Core Count
    2
    Graphics Frequency
    2200 MHz
    USB Type-C® DisplayPort™ Alternate Mode
    Yes

  •

    Product ID Boxed
    100-100001404WOF
    Product ID Tray
    100-000001404

  •

    Supported Technologies
    AMD EXPO™ Technology , AMD Ryzen™ Technologies

Warranty Information


3 Year

Manufacturers Warranty
