| General | |
| Topology | Line Interactive with Automatic Voltage Regulation |
| Configuration | Tower |
| Part Number | 5E1500iUSB-AU |
| Rating (VA/Watts) | 1500VA/900W |
| Dimensions (H x W x D, mm) | 180 x 133 x 330 |
| Weight (kg) | 10.5 |
| Warranty | 24 months |
| Electrical Input | |
| Connection |
(1) Aust. 10A |
| Input Voltage Range | 170- 280V |
| Nominal Voltage | 230 VAC |
| Operating Frequency | 50Hz or 60Hz |
| Electrical Output | |
| Voltages | 230V |

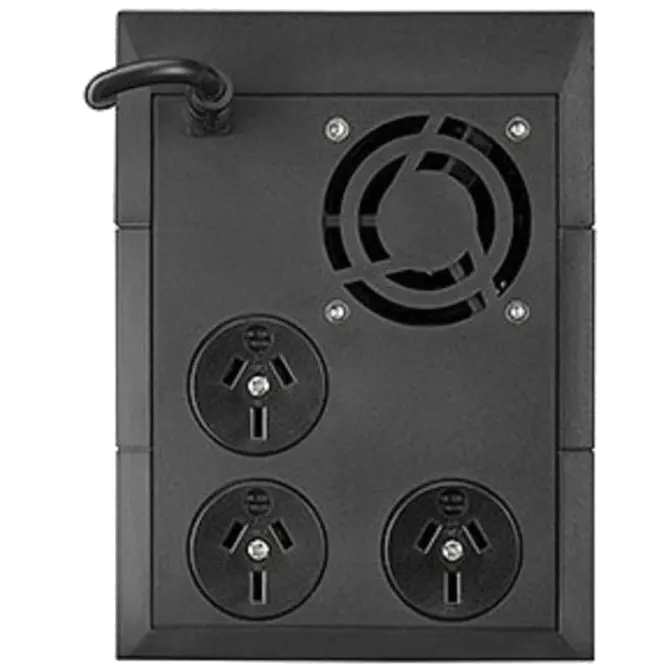

| Output Receptacles |
(3) Aust. 10A |
| On Battery Voltage Regulation | +/-10% |
| Output Frequency | +/-1 Hz in battery mode |
| Transfer Time | 4-8ms typical, 10ms max. |
| Battery | |
| Battery Type | (2)12V 9Ah |
| Recharge Time | 6 hours to 90% after complete discharge |
| Communications | |
| LEDs | AC Mode: Green LED lighting Battery Mode: Green LED Flashing |
| Audible Alarms | Five audible alarms for Backup Mode, Low Battery, Overload, Battery replace & Fault |
| Communication Ports | USB port |
| Environmental & Standards | |
| Audible Noise | Less than 45dB |
| Operating Temperature | 0°C – 40°C |
| Altitude | Maximum operating altitude must not exceed 2000m |
