TP-Link EAP220 Ceiling Mount Wireless Access Point POE

Web ID: 15241

EAP Controller Software enables administrators to easily manage hundreds of EAPs, Support Power over Ethernet(802.3af)for convenient and affordable installation, Simple mounting design to easily mount to a wall or ceiling, Captive portal provides one convenient method of authentication for Wi-Fi guests, WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN, Gigabit Ethernet port enables bandwidth-intensive application or multimedia transferring ONLY WHILE STOCKS LAST! CASH PRICE
Manufacturer PN: EAP220
GTIN: 845973071851
Warranty: 3 Year
Manufacturer Website

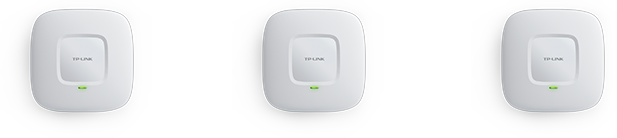

Flexible Placement

Easy mounting design & PoE

The EAP’s “ceiling lamp” appearance and easy mounting design with chassis make it easy to be integrated seamlessly into any wall or ceiling surface to blend in with most interior decorations. EAP series APs support Power over Ethernet (PoE) to make deployment effortless and flexible.


Kensington Security Slot

Business Class Wireless
Powerful Hardware

  • EAP features 802.11n Wi-Fi and 2*2 MIMO technology - EAP220 supports simultaneous dual band in 2.4 and 5GHz for 600Mbps wireless speeds
    - EAP120’s wireless speeds of up to 300Mbps
  • Gigabit Ethernet port ensures high speed
    Internet access
  • With Qualcomm Atheros 560MHz chipsets ,
    EAP ensures incredible wireless coverage and reliability

2.4GHz & 5GHz
Dual Band


Centralized Wi-Fi Management

Management Software

The free controller software allows administrators to easy manage up to hundreds of EAPs through a single IP to like an Access Controller.

Efficient Guest Authentication Captive Portal

Captive portal provides one convenient method of authentication for Wi-Fi guests. A captive portal requires users to perform certain actions before network access is allowed. The required action must be verified by an external portal server or customized database by the administrator, which can be simply viewing and agreeing to an acceptable use policy, or entering a user ID and password.

Applicable to Multi-user Environment

Designed for Business Performance

With easy mounting design, PoE power supply, Cluster feature, Centralized management software, Captive portal, Auto RF management, and business hardware, EAP series are specially designed for the high-density, most demanding business environments, including schools, hotels, and enterprises.

  • Compatibility

    EAP220 compatible with 802.11 a/b/g/n products and EAP120 supports
    802.11 b/g/n products

  • Load Balance

    Load balance ensures large numbers of users have smooth network experiences in large business networks

  • Multiple Operating Modes

    Multiple operating modes satisfy different application conditions including Managed AP and standalone AP modes

  • LSOH Material

    Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance

  • Dustproof design

    Prevents dust from dropping onto the PCB through bypass louver, which ensures long-term, unhindered operation.

  • Quality of Service (QoS)

    Prioritizes data, voice, and video applications to ensure time-sensitive traffic takes priority over all other traffic

EAP Series EAP110 EAP120 EAP220
Product 300Mbps Wireless N
Access Point
300Mbps Wireless N
Gigabit Access Point
N600 Wireless
Dual Band Gigabit Access Point
Wireless Standards IEEE 802.11 n/b/g IEEE 802.11 n/b/g IEEE 802.11 n/b/g/a
Speed 2.4GHz : 300Mbps 2.4GHz : 300Mbps 2.4GHz : 300Mbps
5GHz : 300Mbps
Ethernet Port 10/100Mbps Port*1 Gigabit Port*1 Gigabit Port*1
PoE Passive PoE 802.3af 802.3af
Internal Antennas 2 * 3dBi 2 * 4dBi 4 * 4dBi
Cluster -
Max. APs in one Cluster - 24 24
Multiple SSIDs 8 8 16
Captive Portal
MAC Filtering
Wireless Schedule
Rogue AP Detection
Automatic RF Management


Interfaces Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3af PoE)
Console Port *1
Button Reset, Power On/Off
Dimensions ( W x D x H ) 7.1 x 7.1 x 1.9 in. (180*180*47.5mm)
Antenna Type Internal 4* 4dBi Omni
Power Consumption 9.6 W
Power Supply PoE or External 12VDC / 1.5A Power Supply
Mounting Ceiling /Wall Mounting (Kits included)
Physical Security Lock Kensington Lock Slot
Watch Dog Yes
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, IEEE 802.11a
Frequency 2.4GHz and 5GHz
Signal Rate 11n: Up to 300Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 5GHz
300M: -71dBm@10% PER
150M: -75dBm@10% PER
54M: -78dBm@10% PER
11M: -93dBm@8% PER
6M: -92dBm@10% PER
1M: -96dBm@8% PER
Transmit Power FCC:
Wireless Functions Multiple SSIDs (Up to 16 SSIDs)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
Load Balance
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security Captive Portal Authentication
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
64/128/152-bit WEP / WPA / WPA2-Enterprise,WPA-PSK / WPA2-PSK
EAP Controller Software Yes
Cluster Yes
Email Alerts Yes
LED ON/OFF Control Yes
Management MAC Access Control Yes
SNMP v1,v2c
System Logging Local/Remote Syslog Local/Remote Syslog
Telnet Yes
Web-based Management HTTP/HTTPS
Certification CE, FCC, RoHS
Package Contents N600 Wireless Gigabit Ceiling Mount Access Point EAP220
Power Adapter
Mounting Kits
Resource CD
Installation Guide
System Requirements Microsoft Windows XP, Vista, Windows 7, Windows 8
Environment Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
