Thermaltake MicroATX V150 Tempered Glass Case (No PSU) CA-1R1-00S1WN-00

Web ID: 29527

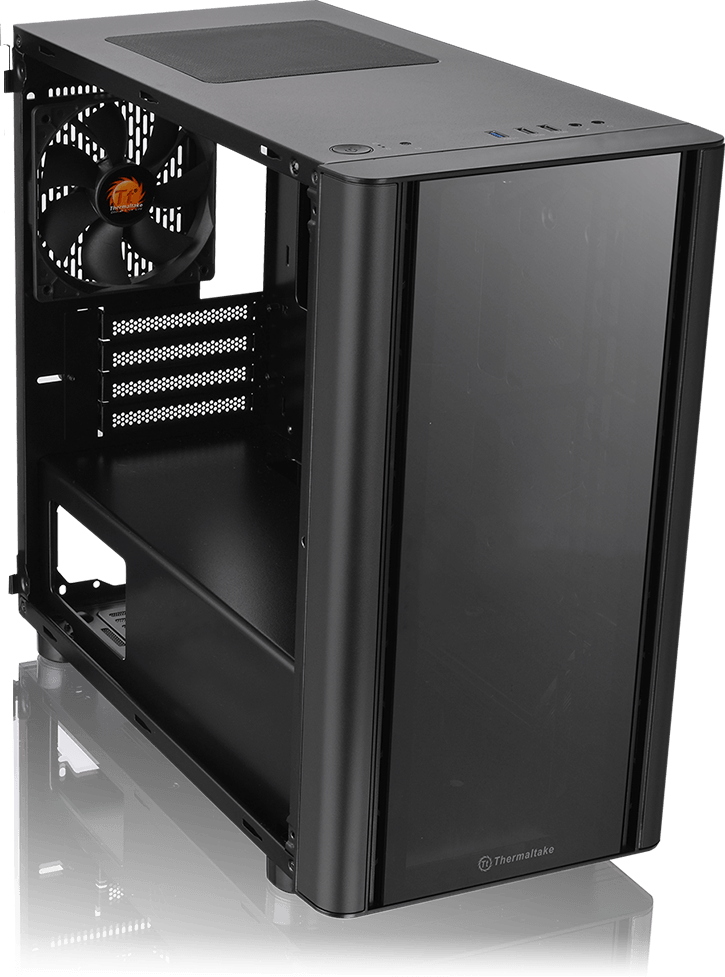

The V150 TG is a micro chassis that comes with one preinstalled 120mm standard rear fan, a power supply cover, and can support up to a standard Micro ATX Motherboard
Manufacturer Warranty: 1 Year
Manufacturer PN: CA-1R1-00S1WN-00
GTIN: 841163075715
Manufacturer Website



  • The image is for reference only.


  • The image is for reference only.



Ideal Expandability and Ventilation
The V150 has good expandability. It can support a CPU cooler with a maximum height of 155mm, horizontal VGA placement of up to 350mm in length (without a front fan), and a power supply with a length of up to 220mm. Optimized for excellent cooling capabilities, the chassis comes with one presintalled 120mm standard rear fan, you can also choose to install two 140mm fans at the front and one 140mm fan on top. For All-in-One CPU cooling compatibilities, the V150 TG can support 120mm, 240mm and a 280mm at the front and 120mm in the rear.


CPU Cooler

Max height 155 mm



Motherboard

Micro ATX, Mini ITX



PSU

Max length 220 mm


VGA

Max length 350 mm
(without Front fan)






P/N CA-1R1-00S1WN-00
Series V Series
Model V150 TG
Case Type Micro Case
Dimension (H x W x D) 425 x 208 x 398 mm
(16.73 x 8.19 x 15.67 inch)
Net Weight 5.45 kg / 12 lbs
Side Panel 4mm Tempered Glass x 2 (Left & Front)
Color Exterior & Interior : Black
Material SPCC
Cooling System Rear (exhaust) :
1 x 120 x 120 x 25 mm fan
(1000rpm, 16dBA)
Drive Bays
-Accessible
-Hidden

2 x 2.5" ; 2 x 3.5”
Expansion Slots 4
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)

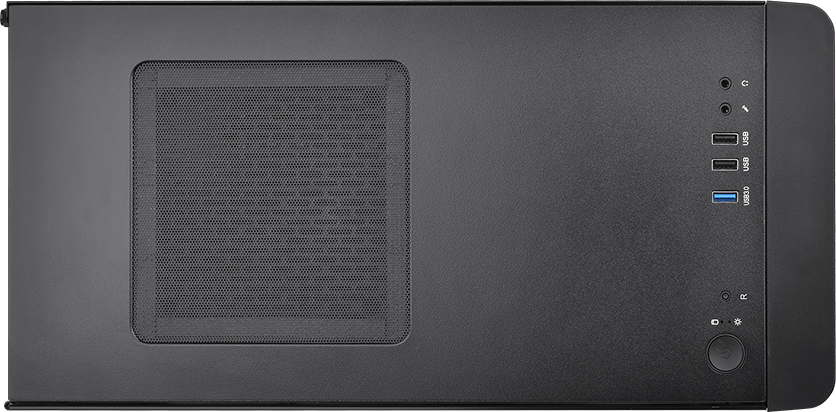

I/O Port 1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio,
PSU Standard PS2 PSU (optional)

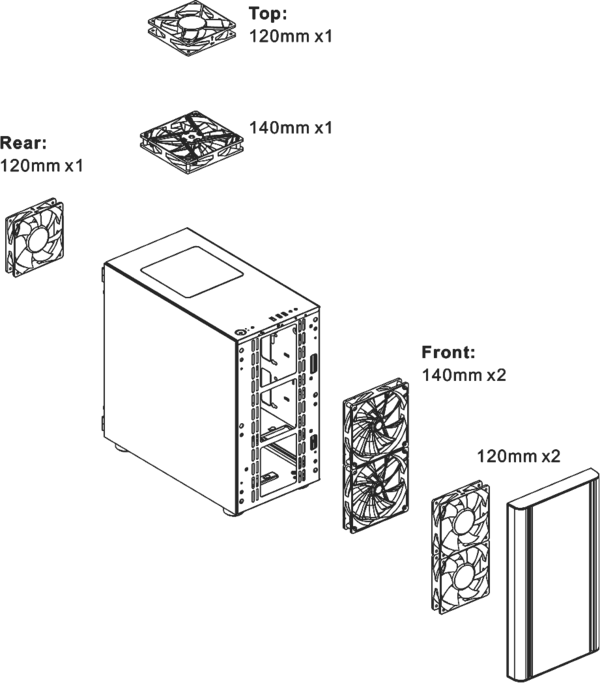

Fan Support Front:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Top:
1 x 120mm, 1 x 140mm,
Rear:
1 x 120mm

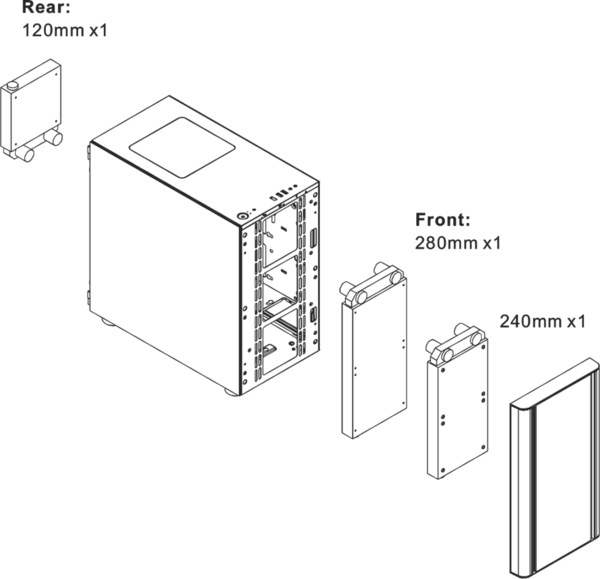

Radiator Support Front:
1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Rear:
1 x 120mm
Clearance CPU cooler height limitation: 155mm
VGA length limitation: 350mm(Without Front Fan)
PSU length limitation: 220mm
