Thermaltake MicroATX Core X2 Cube Case Black (No PSU) PN CA-1D7-00C1WN-00, BONUS Gaming Mouse Pad!

Web ID: 14038

Core X2, the first mATX chassis of Core X Series presented by Thermaltake, is a cube case offering endless stackable capacity and expandability for enthusiasts to create massive liquid cooling systems, utilize as a file server as well as accommodate dual systems, BONUS Thermaltake TteSports Ladon Gaming Mouse Pad PN EMP0002SMS
Manufacturer PN: CA-1D7-00C1WN-00
GTIN: 841163060049
Warranty: 1 Year
Manufacturer Website

$169
Stackable for Enthusiasts
With its endless stacking design, the Core X2 is in a class above the rest. Virtually limitless utility is possible; it offers an expandable system allowing enthusiasts to incorporate externally-modular upgrades. Stacked together, the chassis opens up space to expand the liquid cooling system, the storage solutions, or even create dual systems, thereby enabling a dedicated top/bottom set-up for pure cooling. When stacked, the maximum radiator length supported is 600mm on the front side.



Remarkable Expansion
Designed for high-end gaming system compatibility, the Core X2’s modular drive racks allow gamers to easily install up to six data storage devices, a dual expansion slot VGA of up to 480mm in length, and a tower CPU cooler as high as 230mm. Even with a high-wattage PSU stretching to 200mm in length, it still leaves plenty of space for cable management. Moreover, two 360mm radiators can be installed on top of the chassis, delivering superior cooling performance.

Great Ventilation
The Core X2’s unparalleled cooling ability offers fan brackets with various mounting points to support any type of gaming system that can be accommodated , including DIY/AIO liquid-cooling systems and air-cooling units. Two 120mm fan are preinstalled on the front and rear to reassure and guarantee the flow of aeration. The fan brackets can either be adjusted for 120mm, 140mm, or 200mm fans on the top panel, while there is room for 120mm and 140mm fans on the side panel.



Chambers Concept

Optimized for space management, the Core X2 is divided into two main chambers: the upper chamber is made for cooling performance and better efficiency, while the lower one is made for PSU and drive bays. Thanks to the removable 2.5”/3.5” drive device racks, there is plenty of flexibility to gain the maximum interior space when needed for advanced cooling performance or liquid systems build.

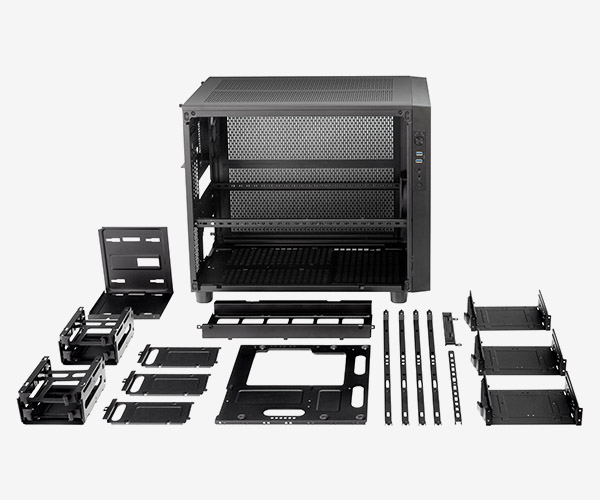

Fully Modular Design
A “3 +7” drive bay concept design for storage devices makes setting up the best storage solution on the market super easy and flexible. In addition, a customizable 5.25” & 3.5” drive bay feature enables users to freely interchange the 3.5” hard-drive cages to suit their particular needs.



Core X2 Radiator Supporting List

Radiator Compatibility List
  120
mm
140
mm
180
mm
240
mm
280
mm
360mm (120mm based) 360mm (180mm based) 420
mm
480
mm
540
mm
Front * * * * * *   * * *
Top * * * * * * *
Rear * *
Bottom *     *   *
Side (L/R) *     *   *





*Highlighted part is only on stacking mode







Water 3.0 Compatibility List
  Ultimate Extreme Pro Performer
Front * * * *
Top * * * *
Rear   * * *
Bottom * * * *
Side (L/R) * * * *





P/N CA-1D7-00C1WN-00
Case Type M-ATX Cube Case
Dimension 465 x 320 x 541 mm
(18.3 x 12.6 x 21.3 inch)
Net Weight 11.6 kg / 25.6 lb
Side Panel Transparent Window
Color Exterior & Interior : Black
Material SPCC
Cooling System Front (intake) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust) :
120 x 120 x 25 mm Turbo fan (1000rpm, 16dBA)
Drive Bays -Accessible :
3 x 5.25’’
-Hidden :
4 x 3.5’’ or 2.5’’ (HDD Cage)
3 x 2.5’’ (HDD Tray)
Expansion Slots 5
Motherboards 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX)
I/O Port USB 3.0 x 2, HD Audio x 1
PSU Standard PS2 PSU (optional)
LCS Upgradable Supports 1/2”?3/8”?1/4” water tube
Fan Support Front:
3 x 120mm
2 x 140mm
1 x 200mm
Top:
6 x 120mm
2 x 140mm
2 x 200mm
Rear:
1 x 120mm or 1 x 140mm
Bottom:
2 x 120mm
Left / Right Side:
3 x 120mm
Radiator Support Front:
1 x 120mm or 1 x 240mm or 1 x 360mm
1 x 140mm or 1 x 280mm
Top:
2 x 120mm or 2 x 240mm or 2 x 360mm
1 x 140mm or 1 x 280mm
Rear:
1 x 120mm or or 1 x 140mm
Bottom:
1 x 120mm or 1 x 240mm
Left / Right Side:
1 x 120mm or 1 x 240mm or 1 x 360mm
Clearance CPU cooler height limitation:
230mm
VGA length limitation:
330mm(with ODD Cage)
480mm(without ODD Cage)
PSU length limitation:
220mm (With Bottom Fan)
