MSI S2066 ATX X299 TOMAHAWK AC DDR4 Motherboard

Web ID: 21402

Supports Intel Core X-Series Processor Family , Intel X299 Chipset, Intel Socket 2066, 8 x DDR4 memory slots, support up to 128GB, 4 x PCIe 3.0 x16 slots, 2 x PCIe 3.0 x1, 2 x M.2 (SATA/PCIe) Slots, 8 x SATA, RAID 0, 1, 5, 10, 1 x U.2, Gigabit LAN, Wireless-AC, Bluetooth v4.2, 1 x USB 3.1 Gen2 Type-C, 1 x USB 3.1 Gen2 Type-A, 8 x USB 3.1 Gen1 Type-A (4 via back panel, 4 via internal header), 7 x USB 2.0 (3 via back panel, 4 via internal header), Optane Ready, 7.1 Channel Audio with Optical Out, ATX Form Factor
Manufacturer Warranty: 3 Year
Manufacturer PN: X299 TOMAHAWK AC
GTIN: 824142148617
Manufacturer Website

$469SAVE $30

CONQUER THE BATTLEFIELD

Featuring heavy plated heat sinks and fierce looks, MSI ARSENAL GAMING motherboards are packed with gaming features for a refined gaming experience.

Powered by FNATIC

 We are proud to be a part of the MSI GAMING testing program to help give gamers the best hardware to play games at the highest level.

Olof 'olofmeister' Kajbjer, Fnatic CS:GO Team



X299 TOMAHAWK AC

CONQUER ANY GAME

  1. Clear CMOS & Flash Back Button
  2. BIOS FLASHBACK+
  3. Lightning USB 3.1 Gen2
  4. Intel GAMING LAN
  5. Golden audio jacks with S/PDIF
  1. Full armed I/O & audio cover
    Stunning looks, protecting the I/O and audio parts
  2. Heavy plated armed heatsinks
    Coverd with exclusive stainless steel for your best protection
  3. DDR4 Boost
    Optimized traces and isolated memory circuitry
  4. PCI-E Steel Armor
    Protecting VGA cards against bending and EMI
  5. 2x Turbo M.2 with one M.2 SHIELD FROZR
    Patent pending M.2 thermal solution. Keeps M.2 run faster.
  6. Double ESD protection
    Double grounding layered mounting holes prevent ESD damage
  7. Audio Boost 4 with amplifier
    Optimized gaming audio using best components, with Nahimic 2



MYSTIC LIGHT

PERSONALIZE YOUR GAMING RIG

Customize and set up your own color scheme with RGB Mystic Light. Select any of the colors from the palette using your smartphone or the Mystic Light App to match your system style. Bored of the same colors? Simply change the complete look of your system in 1 second!

Extendable

Remote control

Mystic Light sync

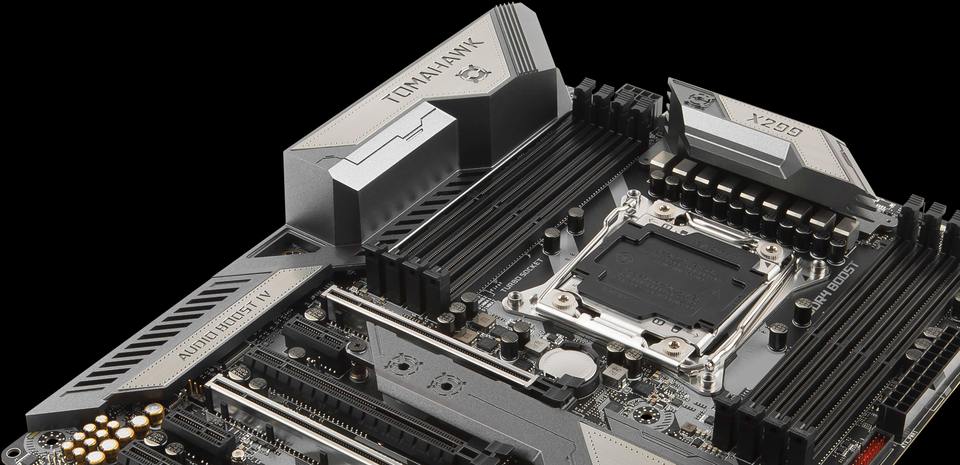

COOLING

STAY COOL WHILE GAMING

Cooling your PC is essential for reliable performance. We've made sure to include enough fan headers with full control to allow you to cool your system any way you want.



6x fan headers

DC/PWM mode

Full fan control

Watercooling ready



GAMING FEATURES

YOUR IN-GAME ADVANTAGE

Outsmart and outperform your opponents in-game using an array of unique MSI GAMING tools. Clever hardware & software tools, created to keep you one step ahead of the competition and boost your skills.

Gaming Hotkey

Gaming Device Port

Game Boost

Multi-GPU

STORAGE

BE THE FIRST ON THE BATTLEFIELD

This MSI GAMING motherboard supports all the latest storage standards. This allows you to connect any ultra-fast storage device, giving you in-game benefits. Start games faster, load levels faster and have a real advantage over your enemies.

M.2 SHIELD FROZR

2x M.2

U.2 ready

Ultra-fast storage caching



VIRTUAL & MIXED REALITY

IMMERSE YOURSELF INTO VIRTUAL WORLDS

Integrating the very best of cutting edge technologies on MSI hardware provides a smooth VR ride. Through joint efforts with major VR brands, combined with unique MSI features geared to VR, MSI brings gamers and VR professionals a vivid and realistic experience in which content truly comes alive.

VR accelerator chip

One click VR

AUDIO

SOUND THAT PULLS YOU INTO THE GAME

Get the most immersive sound experience when gaming. MSI Audio Boost delivers the highest sound quality through the use of premium quality audio components. This lets you enjoy breathtaking, game-changing sound to create the most exciting gameplay.

Nahimic 2

Audio Boost 4

Audio amplifier

Audio capacitors



GAMING LAN

DOMINATE THE GAME WITH THE LOWEST LATENCY

Get ready to crush your enemies on the battlefield with MSI GAMING LAN. Featuring the highest quality components tuned to deliver the best online gaming experience without lag.

Intel® gaming LAN

Bandwidth management

LAN protect

Intel® WiFi

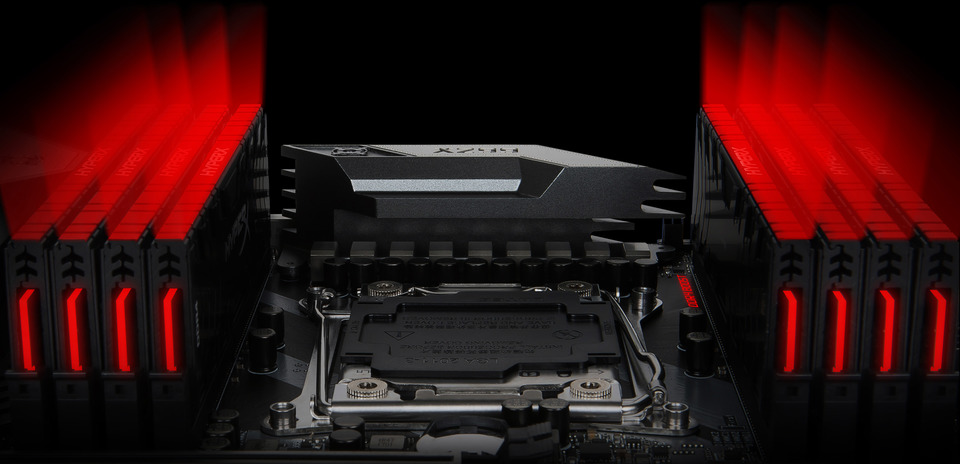

MEMORY

UNMATCHED MEMORY PERFORMANCE

MSI motherboards are crammed with features to fuel your gaming rig's memory with more speed, higher overclockability and increased stability.



Optimal layout

100% compatibility

XMP LED

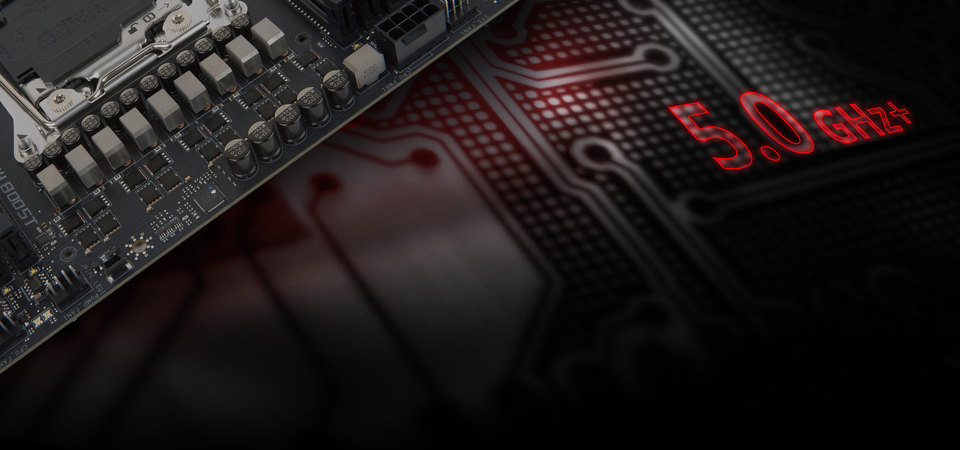

EXTREME PERFORMANCE

DESIGNED FOR OVERCLOCKING

Combining industries best components with MSI’s top notch R&D design, you can count on this motherboard to deliver world class performance. System tuning and troubleshooting tools are at your disposal to push your system to new heights.

10 PHASE POWER DESIGN

For power users

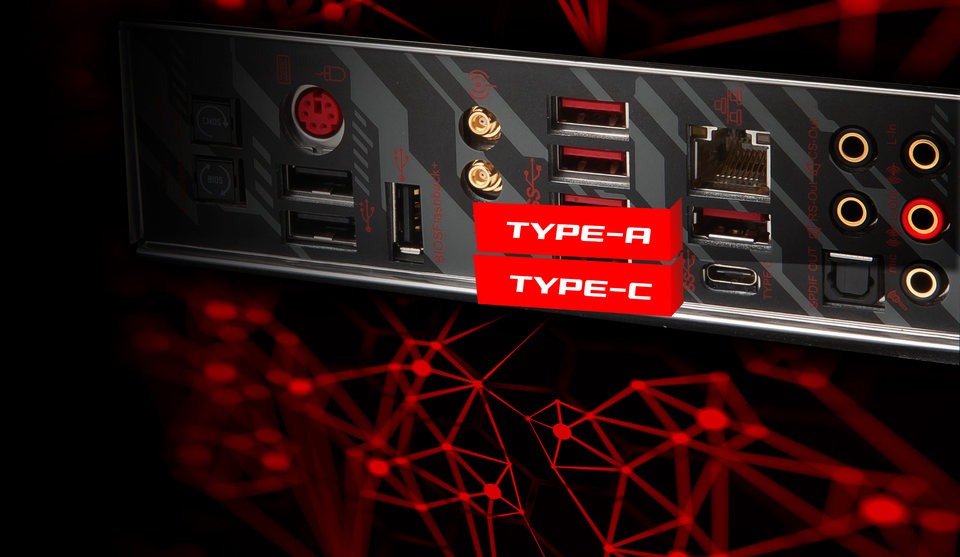

USB

MAXIMIZE YOUR USB DEVICE PERFORMANCE

Transfer your favorite games, music and movies over USB faster than ever. MSI offers a wide variety of options to connect and boost your USB 3.1 devices, delivering lightning-fast transfer speeds up to 10Gb/s!

Double bandwidth USB 3.1

Reversible Type-C connector

Front USB 3.1

Boost your USB

SOFTWARE

APPS TO HELP YOU WIN

With years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. Use these tools to get the most out of your motherboard and achieve victory when gaming.



X-Boost

Command Center

Live Update

RAMDisk

QUALITY & PROTECTION

BUILT ON EVERLASTING QUALITY

Using only the finest quality components and integrating the latest technological innovations delivers the best possible gaming and professional experience. Rigorous quality testing under the most extreme conditions ensures a super reliable, high performance motherboard.



M.2 SHIELD FROZR

Steel Armor

Military Class 6

Gaming Certified

BIOS

A GAMERS' BIOS

We made sure our BIOS contains all the latest options and is easy to use for everyone. The extensive features let you fine-tune your system to deliver reliable maximum performance when gaming.

CPU

• Supports Intel® Core™ X-Series Processor Family for LGA2066 Socket
* This function will be supported depend on the CPU.



Chipset

• Intel® X299 Chipset



Main Memory

• 8 x DDR4 memory slots, support up to 128GB*
- X-series processor support DDR4 4266+(OC)/ 4133(OC)/ 4000(OC)/ 3866 (OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC)/ 2800(OC)/ 2666/ 2400/ 2133 MHz*
• Quad channel memory architecture with the CPU that supports up to 4-channels DDR4**
• Dual channel memory architecture with the CPU that supports up to 2-channels DDR4**
• Supports Intel® Extreme Memory Profile (XMP)
* For the latest information about memory, please visit http://www.msi.com
** Please refer the DIMM Slots section for more details.



Slots

• 4 x PCIe 3.0 x16 slots
- Support x16/ x4*/ x16/ x8 mode with the 44-lane CPU.
- Support x16/ x4*/ x8/ x4 modes with the 28-lane CPU.
- Support x8/ x4*/ x8/ x0, x8/ x4*/ x4/ x4 modes with the 16-lane CPU.
• 2 x PCIe 3.0 x1 slots
* The PCI_E3 lanes are supported by PCH.



Multi-GPU


• Supports 3-Way AMD® CrossFire™ Technology
• Supports 3-Way NVIDIA® SLI™ Technology


Storage

• Intel® X299 Chipset
• 8 x SATA 6Gb/s ports*
• 2 x M.2 slots (Key M)*
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- M2_1 slot supports 2242/ 2260 /2280 storage devices
- M2_2 slot supports 2242/ 2260 /2280/ 22110 storage devices
- Intel® Optane Memory Ready**
• 1 x U.2 port *
- Supports PCIe 3.0 x4 NVMe storage
• Supports Intel® Smart Response Technology***
* PCI_E3 slot, M.2 slots, U.2 port and SATA ports share the same bandwidth. Please refer to manual for PCI_E3/ U.2/ M.2/ SATA Combination table .




RAID

• Intel® X299 Chipset
• Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Supports RAID 0 and RAID 1 for M.2 storage devices*
* M.2 PCIe RAID volume can be created with M.2/Optane Genie. Please refer to manual for M.2 PCIe SSD RAID.




USB

• ASMedia® ASM3142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) Type-A port on the back panel
- 2 x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C ports(1 port on the back panel, 1 port available through the internal USB connector)
• ASMedia® ASM1074 Chipset
- 3 x USB 3.1 Gen1 (SuperSpeed USB) Type-A ports on theback panel
• Intel® X299 Chipsett
- 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (1 port on the back panel, 4 ports available through the internal USB connectors)
- 7 x USB 2.0 (High-speed USB) ports (3 ports on the back panel, 4 ports available through the internal USB connectors)




Wireless LAN & Bluetooth®

• Intel® Dual Band Wireless-AC 8265 module (optional)
- The Wireless module is pre-install in the M2_3 (Key-E) slot.
- Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
- Supports Dual Mode Bluetooth® 2.1, 2.1+EDR, 3.0, 4.0, BLE, 4.2



Audio

• Realtek® ALC1220 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output



LAN

• 1 x Intel® I219-V Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 1 x 4-pin ATX 12V power connector
- 8 x SATA 6Gb/s connectors
- 3 x M.2 slots (Key M x2, Key E x1)
- 1 x U.2 port
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1 x USB 3.1 Gen2 Type-C port
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 4 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x Power button
- 1 x Reset button
- 1 x Multi-BIOS switch
- 1 x RGB LED connector
- 1 x Virtual RAID on CPU connector
- 1 x Thunderbolt Add-on Card Connector



Back Panel I/O Ports

- 1 x Clear CMOS button
- 1 x BIOS FLASHBACK+ button
- 1 x PS/2 keyboard/ mouse combo port
- 3 x USB 2.0 Type-A ports
- 4 x USB 3.1 Gen1 Type-A ports
- 1 x LAN (RJ45) port
- 1 x USB 3.1 Gen2 Type-A port
- 1 x USB 3.1 Gen2 Type-C port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks



Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor



Mounting

• 9 mounting holes



Packing

* MSI® does not guarantee the risks or damages caused by changing the cover.
** These pictures are for reference only and may vary without notice.


X299 TOMAHAWK AC back IO

  1. Clear CMOS Button
  2. Keyboard / Mouse
  3. Intel Wi-Fi & Bluetooth
  4. Intel® Gigabit LAN
  5. Golden Audio Connectors
  6. BIOS Flashback Button
  7. USB 2.0
  8. USB 2.0 / BIOS Flashback+
  9. USB 3.1 Gen1
  10. USB 3.1 Gen2 Type-A/C
  11. Optical S/PDIF-Out
