MSI S2011-3 ATX X99A Gaming Pro Carbon DDR4 Motherboard, BONUS Steelseries Mouse Pad!

Web ID: 18399

Intel Socket 2011-3, Intel X99 Express Chipset, 8 x DDR4 Slots (upto 128GB), 4 x PCIe 3.0 x16 slots, support up to 3-way mode, AMD CrossFire, NVIDIA SLI, 2 x PCIe 2.0 x1 slots, 1 x SATA Express port, 1 x M.2 SATA/PCIe port, 10 x SATA 6Gb/s ports, RAID 0, 1, 5, 10, USB 3.1 Gen2 Type-C & Type-A combo + USB 3.1 Gen 1 Type-C (front), 8 x USB 2.0 ports (4 via back panel, 4 via internal header), 7.1 channel Audio with optical out, Intel Gigabit Lan, ATX Form Factor, BONUS SteelSeries 63004 QcK Gaming Mouse Pad PN 63004
Manufacturer PN: X99A GAMING PRO CARBON
GTIN: 824142130124
Warranty: 3 Year
Manufacturer Website

$499
  • Supports New Intel® Core i7 Processor Extreme Edition for LGA 2011-3 socket
  • DDR4 Steel Armor with Best signal stability , Quad Channel DDR4-3466+(OC)
  • Mystic Light: Customize and set up your own color scheme with GAMING APP to make your PC look & feel brand new!
  • Mystic Light Extension: Extend you style to everything
  • Turbo U.2 & M.2 Steel Armor: Delivering next generation M.2 Gen3 x4 performance with transfer speeds up to 32 Gb/s
  • USB 3.1 Gen2 Type-C & Type-A combo + USB 3.1 Gen 1 Type-C (front) + SATA EXPRESS 10Gb/s + SATA 6Gb/s
  • Audio Boost 3 : Reward your ears with studio grade sound quality
  • Nahimic Audio Enhancer: Immersive sound quality that pushes the limits of reality
  • GAMING LAN with LAN Protect, powered by Intel® : The best online gaming experience with lowest latency
  • XSplit Gamecaster V2: Show off you skills to the world with a 1 year premium license for this popular streaming software
  • Military Class 5: The latest evolution in high quality components featuring the brand new Titanium Chokes
  • Guard-Pro: Improved Protection and Power Efficiency
  • MULTI-GPU with Steel Armor: Steel Armor PCI-E slots. Supports 3-way NVIDIA SLI & AMD Crossfire™
  • Game Boost: Generate more FPS in games with 1 push of a button
  • EZ Debug LED: Easiest way to troubleshoot
  • Overvoltage Protection:Prevent Unforeseen Damage
  • GAMING Hotkey: Launch your favorite games with a single button
  • Click BIOS 5: Award-winning brand new Click BIOS 5 with high resolution scalable font
  • SteelSeries Certified: Optimized for SteelSeries gaming gear
  • GAMING CERTIFIED: 24-hour on- and offline game testing by eSports players for the best gaming experience
  •  MB Windows 10 compatibility list



Current promotions with this product

BLACK WITH CARBON SKIN

Carbon-fiber-reinforced polymer is used extensively the world of car racing, where each second counts. Besides its strength and futuristic look, carbon-fiber is also very light for ultimate performance to pursue track records. MSI GAMING motherboards are dedicated to ultimate performance and the best gaming experience. The CARBON motherboards black scheme combines flashiness with sophistication that is sure to make your pc stand out in looks and performance.

rwdimg

rwdimg

MYSTIC LIGHT

Customize and set up your own color scheme with Mystic Light. Make your build look on fire or cold as ice. You are in control. You can select any of the colors from the palette to match your systems’ design. Tired of always the same color? Just change it to another one using the easy to use Mystic Light APP available on PC, phone and tablet, and make your PC look & feel brand new!

X99Carbon

MYSTIC LIGHT EXTENSION

Dedicated HEADER for 4-PIN RGB-STRIP & LIGHTING CONTROL

Designed for anyone who simply wants to have a perfectly stylish gaming rig. With MSI's Mystic Light Extension header, it provides the most intuitive way to control the fascinated LED strip without the ordinary controller. Just install the standard 12V RGB strips onto the 4-pin Mystic Light Extension RGB-strip header, then control your lighting to any style you want. Extend the Mystic Light to whole gaming rig and your gaming room.

*The Mystic Light Extension header supports standard 5050 RGB LED strips with a maximum power rating of 3A (12V). For highest brightness, strip length should not exceed 2m. *2 extension cables, without RGB LED strips, are included in package.

MYSTIC LIGHT LED

UNMATCHED MEMORY
PERFORMANCE AND STABILITY

With traditional memory design the memory signals are often distorted by electromagnetic signals from other components, making the system perform slower or become unstable. MSI introduces DDR4 Boost technology with optimized traces and fully isolated memory circuitry. This design ensures the memory signals stay pure for optimal performance and stability.

Steel Armor technology is now also available for DDR4 Boost, offering better EMI-shielding and even better signal strength, for optimal memory performance.

ddr4

Gaming LAN

DOMINATE THE GAME WITH LOWEST LATENCY

Get ready to crush your enemies on the battlefield with MSI® GAMING LAN, featuring carefully selected components to ensure the best online gaming experience without lag.

DEDICATED GAMING LAN WITH INTEL®

Experience a more fluid game with Intel® i218 LAN. Intel® i218 LAN is designed to deliver high performance when gaming, delivering more throughput than other solutions.

Intel® i218 LAN is optimized for championship level online and LAN eSports by reducing CPU overhead and offering exceptionally high TCP and UDP throughput. This way, your CPU can be used more effectively and you can enjoy more FPS when gaming.

GAMING OPTIMIZED BANDWITH MANAGEMENT

Dedicated to giving you the best online gaming experience with optimized traffic prioritization and low latency, MSI GAMING LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games.

MSI GAMING LAN MANAGER

  • Automatically prioritizes games above other applications
  • Allows you to change applications' traffic priority
  • Allows you to customize bandwidth for each application

rwdimg

LAN Protect

LAN PROTECT

Featuring 15KV anti-surge protection to shield your network from lightning strikes and static electricity, LAN Protect is a LAN connector designed to give you the best networking experience. It's highlighted with a red LED inside the RJ45 connector to show its functionality.

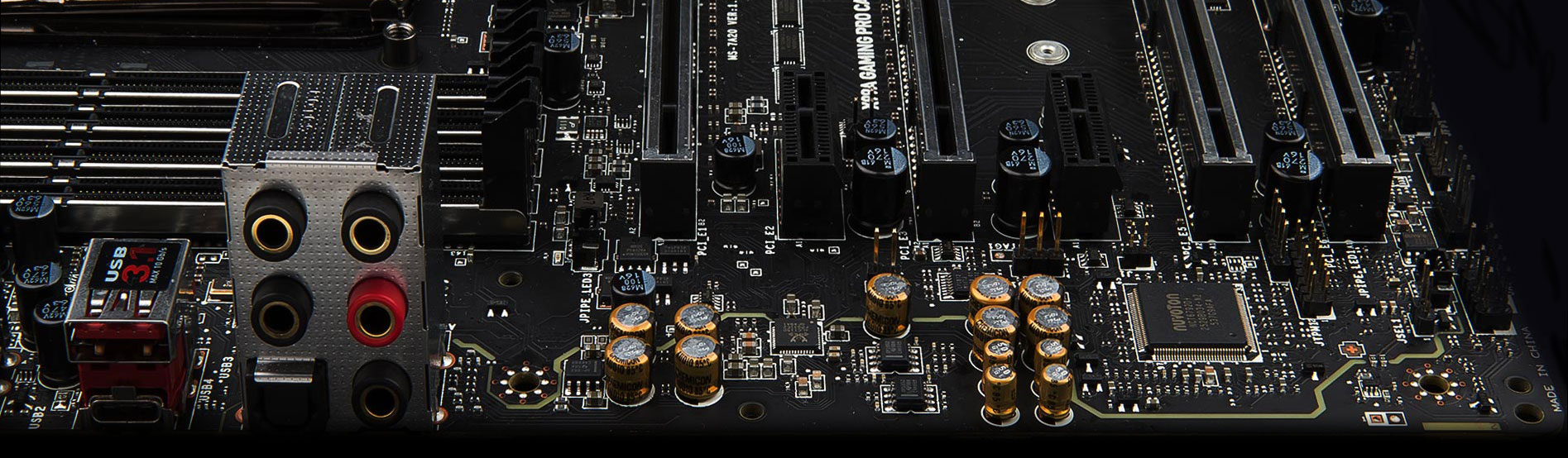

REWARD YOUR EARS WITH STUDIO GRADE SOUND QUALITY

With Audio Boost 3, powered by Nahimic Sound Technology, we're delivering the highest sound quality through the use of premium quality audio components. That way, you can enjoy breathtaking, crystal clear sound and music through 8-channel HD Audio or high impenda?nce headphones and truly dominate the game.



Nahimic Sound Technology

Nahimic Sound Technology



Golden Audio Jacks

Golden Audio Jacks



High Quality EMI-Shielded HD Audio Processor

High Quality EMI-Shielded HD Audio Processor



Isolated Audio PCB with LED Line

Isolated Audio PCB with LED Line



Chemi-Con Audio Capacitors

Chemi-Con Audio Capacitors



Dual Headphone Amplifiers

Dual Headphone Amplifiers



Front Dedicated Headphone Out

Front Dedicated Headphone Out



nahimic

Learn More

Nahimic Audio Enhancer

Nahimic audio software offers high definition sound technology which boosts the audio and voice performance of your gaming computer. Enjoy an immersive virtual 7.1 sound over your standard stereo equipment!

And game comes true

Nahimic Immersive Audio becomes your special weapon in-game

Sound is a major part of your gaming experience. Live, feel and bocome invincible, thanks to a unique sound

Icone Mic Activation

Virtual Surround

Icone Mic Activation

Trebble Enhancer

Icone Mic Activation

Smart Loudness

Icone Mic Activation

Bass Boost

Icone Mic Activation

Voice Clarity

voice

NEW

Expert Settings Take Control

Tune your listening experience with 4 gaming and 3 multimedia audio profiles. Enjoy 10 band EQ with 6 preset profiles and 1 custom profile. Access to the playback and recording device properties. Easy to access from main UI.

Icone Youtube Tutorial: Discover Expert Mode

PreviousNext

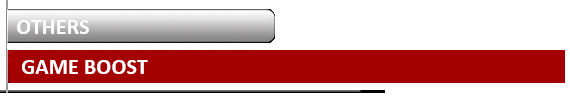

Overclocking with Game Boost!

Need more FPS? Need more CPU and memory power? With Game Boost’ overclocking option we're giving you even more performance. Just turn the dial and your PC gets another adrenalin shot. With Game Boost going up to eleven , a performance increase up to 5GHz is possible!

rwdimg

*Features may vary according to your platform and model

GAMING HOTKEY

Gaming Hotkey enables more functionality using your own keyboard. Simply assign functions to any key and launch your favorite games, load overclocking profiles or do real-time overclocking with the push of a single button. The possibilities are endless!

  • Customize any shortcut on your keyboard
  • User friendly, easy to use application
  • 1 key load up of your favorite game

rwdimg

rwdimg

TOTAL FREEDOM, MAXIMUM EASE

Easily program your most used commands to be executed with a single keystroke. You are free to choose any key you want.

rwdimg

*Real GAMING Hotkey settings depend on the configuration

rwdimg

Shortcut Hotkeys

Assign your own keyboard special functions

Windows keys

Quick launch any application or folder

Quick launch of mail, browser or more

MSI® Smart keys

One press to login (program passwords)

Login Keys

2X FASTER
MSI USB 3.1 GEN2

Transfer your favorite games, music and movies over USB faster than ever. USB 3.1 Gen2 enables lightning-fast transfer speeds up to 10Gb/s!

USB3.1

Benefits

  • 2X faster than USB 3.1 Gen1
  • 20X faster than USB 2.0
  • Up to 10Gbps data transfer bandwidth
  • Boost transfer rate for your PC and peripherals

responsiveImg

REVERSIBLE DESIGN

Type-C with reversible design
Get all the performance benefits from USB 3.1 Gen2 combined with the convenience of the USB Type-C connector. This reversible connector allows for effortless connecting of USB devices.

FRONT USB TYPE-C

FRONT USB TYPE-C is compatible with next generation PC chassis, perfect for the latest smartphones and great for next generation mobile storage devices, the X99A GAMING PRO CARBON is world’s first motherboard to feature front USB 3.1 Type-C.

FRONT USB TYPE-CSUPER CHARGERUSB REDRIVERFRONT USB 3.1 GEN1DOUBLE ESD PROTECTION

FAST STORAGE WITH SATA EXPRESS

SATA Express offers a solution in high speed storage through PCI-Express, providing more bandwidth for the latest generation SSDs up to 16 Gb/s.

TURBO M.2 STEEL ARMOR

Delivering speeds up to 32Gb/s using Gen3 x4, Turbo M.2 is more than 5 times faster than a regular SATA III connection! Exclusive Steel Armor provides best signal quality. Enjoy a blazing fast system boot up and insanely fast loading of applications and games.

Turbo U.2 On Board

Turbo U.2 connector delivers performance up to 32 Gb/s and allows support for next gen 2.5-inch SSDs using the U.2 connector.

DATA TRANSFER SPEED

SUPPORTS

Turbo Socket for no limits overclocking

Providing extra pins (2036 in total) opens doors for better overlocking of Intel® Extreme processors and DDR4 memory. Turbo socket allows for additional tuning of DDR4 memory and Ring voltages, resulting in record breaking DDR4 memory overclocking performance, lower latencies and enhanced stability while overclocking.

Socket

OC ENGINE

Thanks to the OC Engine, MSI motherboards support more flexible BCLK adjustments, from 100 / 125 / 167 MHz straps. Using these straps opens doors to achieve the absolute maximum in overclock. All MSI X99 motherboards come with the next generation Clock Generator offering even lower jitter and power consumption resulting in even higher stability under extreme conditions.

ENHANCED CPU OVERVOLTAGE PROTECTION

Onboard overvoltage protection prevents overvoltage and short-circuit damage of the CPU and other components. A red LED near the 24 pin CPU power connector let you know that overvoltage protection is activated for easier troubleshooting.

EZiocn

EASY DIAGNOSTIC

MSI EZ DEBUG LED is an easy troubleshooting tool built with 4 LEDs to indicate to CPU / Memory / VGA / Boot operation every time you boot up your system.

Run into trouble? Use the LEDs to easy identify the item causing problems.

SteelSeries headset

MSI

Certified by SteelSeries



STEELSERIES CERTIFIED



Get ready to enjoy the best gaming experience with MSI & SteelSeries!

Enthusiast gaming gear brand SteelSeries has officially approved MSI GAMING motherboards as ‘SteelSeries Certified (SSC)’. This certification is based on the performance demands and stability of MSI GAMING motherboards and SteelSeries products. Your SteelSeries headset, mouse and other top quality gaming gear works best on MSI GAMING motherboards.

GAMING CERTIFIED

Our GAMING motherboards are tested in our gaming lab, internet cafes and together with the world’s best eSports players to make sure you get top performance and reliability in the world’s most popular games. Through 24-hour on- and offline game testing, MSI ensures the onboard network configuration, audio reception and FPS performance are tested and tuned to perfection for you to enjoy the best possible gameplay experience.

Only the motherboards that pass this test receive the GAMING CERTIFIED status and are considered true MSI® GAMING motherboards.

rwdimg

rwdimg

rwdimg

rwdimg

rwdimg

rwdimg

MILITARY CLASS 5 COMPONENTS

Military Class 5 is the latest evolution in high quality components. The Titanium Choke and Dark CAP ensure that your PC runs stable under extreme gaming conditions.

Titanium Choke

Titanium Choke uses a Titanium core that has better ability in thermal and higher temperature tolerance. This allows the Titanium Choke to run at a 220 degree Celsius high temperature, have a 40% higher current capacity, a 30% improvement in power efficiency and better overclocking power stability.

DARK CAP

With their aluminum core design, Dark CAPs has been a staple in high-end motherboard designs and provides lower Equivalent Series Resistance (ESR) as well as its over-10-year lifespan.

HUMIDITY PROTECTION

Reduction in moisture absorption helps prevent "Conductive Anodic Filament". Untreated PCB's can have 10x higher failure rate.

HIGH TEMPERATURE
PROTECTION

All key components used in MSI motherboards have all passed military testing ensuring stable operation in the harshest environments.

CIRCUIT PROTECTION

Carefully selected materials, multiple PCB layers and shielding result in the best circuit protection for our GAMING motherboards.

ESD PROTECTION

Each and every I/O port is protected against the hazards of Electro Static Discharge.

EMI PROTECTION

All MSI motherboards comply with strict American FCC regulations and reduce the impact of Electromagnetic Interference.

AMD CrossFire

NVIDIA SLI

OPTIMIZED FOR MULTIPLE GRAPHICS CARDS

SLI /CROSSFIRE SUPPORT

This motherboard supports SLI / CrossFire. Optimal PCI-Express slot placement allows for better fitting and airflow.

That way, you can enjoy the best graphics at the highest framerate jumping from your screen when running an NVIDIA® SLI™ or AMD CrossFire™ setup.

PREVENT DAMAGE!

Worried about damaging the PCI-Express slot or your graphics card because of the weight?

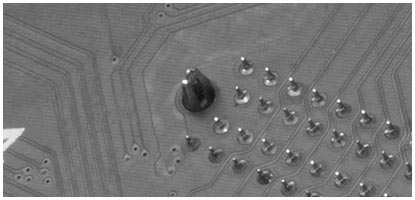

MSI® STEEL ARMOR

Steel Armor has more solder points on the PCB for more strength and protects the PCI-Express signals against electromagnetic interference for a stutter-free gaming experience and higher GPU overclocking.

OTHERSNO STRENGTHENING

MSI® STEEL ARMORREINFORCED, HEAVY SOLDERED CONNECTIONS

rwdimg

THE ALL NEW, AWARD-WINNING CLICK BIOS 5

rwdimg

rwdimg LEARN MORE ON OUR UEFI BIOS PAGE

Explore the greatly improved, award-winning CLICK BIOS 5 and use it to tune your system to maximum performance to get the most out of your games. MSI CLICK BIOS 5 is the next generation UEFI BIOS with optimizations for Windows 10.

Control your system in two modes: EZ mode, for the most used settings and functions. Advanced mode for more detailed settings and fine-tuning options to boost your system’s performance.

  • Variety of options to boost your game performance
  • Next gen UEFI BIOS with award winning design
  • High-resolution multi language scalable font
  • Easy to use
  • Advanced overclocking

OTHERS

rwdimg

Low res, non-scalable

CLICK BIOS 5

rwdimg

Sharp, hi-res, scalable design

GAMING DEVICE PORT

MSI Gaming Device Port is optimized to deliver the best connectivity for high end gaming mice to fully utilize its speed. You can customize your mouse’ DPI to change accuracy and program macro combinations using the easy to use Mouse Master software to perform multiple commands with just one click.

Gaming benefits

  • More responsive, faster reactions
  • Customizable mouse settings
  • Customizable mouse accuracy (DPI)
  • Program macros for multiple actions in 1 click
  • Smoother gameplay

Technical benefits

  • 3x more gold than regular connectors
  • 10x longer lifetime when plugging/un-plugging
  • Prevents oxidation

mouse

mouseImg

MouseMaster



Your Game, Your Stream, Your Fame

rwd-img

HOW TO ACTIVATE MSI PREMIUM LICENSE

XSplit Gamecaster & Broadcaster V2 lets you easily record your gaming moments and broadcast your live gameplay sessions to Twitch, YouTube, UStream and more.

It's simple, easy to use and ideal for sharing your gameplay with friends, family or the world - or for capturing those perfect gaming moments, just for the heck of it.

RECORD & STREAM

rwd-img

Use XSplit Gamecaster to stream all of your gaming activities

VIDEO EDITOR

rwd-img

Edit your recordings and conquer the world

REALTIME NOTES

rwd-img

Draw attention whilst casting with in-game annotations

TriDef SmartCam

rwd-img

Fully automatic chroma key that can work on any background

Adaptive Bitrate

rwd-img

Automatically adjusts your bitrate according to your network conditions

GAME DETECTION

rwd-img

Game Capture Auto Detect allows for automatic streaming when starting a game

Download Manual Card Download User Guide

WTFast is the Gamers Private Network ; like a global automated army of IT specialists all working together to optimize your game connection from end to end. WTFast reports rich connection stats for your online game, so you can see exactly what is happening with your game connection.

  • Built just for MMO gamers
  • Reduce average ping
  • Greatly reduce connection flux, spikes and packet loss
  • MSI Exclusive 2-month premium license

GET 2-MONTH PREMIUM LICENSE FOR FREE

logo

OVERCLOCKINGMADE EASY

Outperform your competition with the MSI® GAMING APP which allows simultaneous control of both your Motherboard and Graphics Card's overclocking.

Simply select your preferred mode with the click of a button:

/ Silent / Gaming / OC /

ON-SCREEN SPEED & TEMPERATURES

Real-time monitor GPU Core, DRAM Frequency, GPU & CPU Temperatures and much more, in game or in other fullscreen applications, customizable to your preference.

gamingApp

rwdimg

AioDragonEye

A DIFFERENT VIEW
ON GAMING

MSI Dragon Eye allows you to watch a YouTube video or Twitch Stream while playing a game simultaneously. Simply add a link or stream to the Dragon Eye application and select the size, position, volume and transparency and start gaming. With a few hotkeys you can start/pause your video or set the volume.

DOWNLOAD

logo

CPU-ZMSI GAMINGEDITION

MSI has worked closely with CPUID to develop this special edition of CPU-Z featuring the famous MSI GAMING dragon. Use CPU-Z to gather key information on the main devices of your system, such as your CPU speed, Memory speed and timings, motherboard BIOS version and much more.

Download CPU-Z
MSI GAMING Edition HERE

rwdimg

RAMDisk

SSD NOT FAST ENOUGH? TRY MSI RAMDISK!

Get an unlimited RAMDisk for free (worth $35) with MSI GAMING motherboards. RAMDisk allows you to create a virtual drive from your system memory, enabling speeds up to 25x faster than a modern SSD. You can load complete games, speed up your browser or your page file significantly increasing system performance! You even increase your SSD's lifespan by using RAMDisk as it reduces unnecessary read and write operations to your SSD.

  • Speed up system performance
  • Speed up games, apps and browser
  • Increase SSD lifespan

25XFASTER

$35VALUE

SOFTWARE



web design magazines

INTEL EXTREME TUNING UTILITY

The most complete overclocking tool from MSI and Intel. Besides every OC setting thinkable, XTU also has a built-in benchmark and submits results directly to the world’s largest OC competition website: HWBOT.org.

nyc subway

Command Center

MSI's Command Center software is a very powerful tool to push your motherboard to the max. With a very intuitive touch ready interface, Command Center allows users to tune settings to increase system stability, maximize overclocking performance and adjust cooling features.

web design magazines

USB Speed Up

MSI-Exclusive USB Speed Up software, designed for increasing the USB 3.1 performance up to 30% more than normal one, is easy to use and saves your time for waiting file transfer.

danny antonucci

Live Update 6

MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software.Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.

watercolor paints

Fast Boot

No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.

apple ipod classic photo

Command Center Lite

This lightweight overclocking tool doesn't need installation and doesn't occupy unnecessary system resources lowering system benchmark scores. With a single mouse click you have access to the most important overclocking features.

web design magazines

Command Center Lite Memory

Keep track of your memory timings with this lightweight application. Command Center Lite Memory helps you to tune your memory to perfection and reach new heights.

PACKAGE CONTENT

What's in the box? Check it out for yourself! Besides an abundance of necessary cables and connectors, a stylish all black GAMING I/O shield.


FRONT SIDE OF I/O PANEL

  • I/O Panel Ports Label
  • Dark coating

  •  BACK SIDE OF I/O PANEL
  •  Force Absorbing Layer (NEW)
  •  Aluminium Interference Shielding
  •  Steel Shielding
caseBage

CABLE LABELS

CONNECTIVITY

Be sure to take full advantage of all the GAMING weapons by connecting your devices to the optimized ports.

Connectivity

  1. Gaming Device Port
  2. USB 3.1 Gen1
  3. MSI GAMING LAN
  4. USB 3.1 Gen2 Type A
  5. Audio connectors
  6. USB 2.0
  1. Clear CMOS Button
  2. USB 3.1 Gen1
  3. USB 2.0
  4. USB 3.1 Gen2 Type C
  5. Optical S/PDIF Out


CPU

• Supports New Intel® Core™ i7 Processor Extreme Edition for LGA2011-3 Socket
* This function will be supported depend on the CPU.



Chipset

• Intel® X99 Chipset



Main Memory

• 8 x DDR4 memory slots, support up to 128GB*
- Supports DDR4 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(OC)/ 3000(OC)/ 2933(OC)/ 2800(OC)/ 2666(OC)/ 2600(OC)/ 2400/ 2200(OC)/ 2133 MHz
• Quad channel memory architecture
• Supports Intel® Extreme Memory Profile (XMP)
* For the latest information about memory, please visit http://www.msi.com



Slots

• 4x PCIe 3.0 x16 slots*
- Support x16/ x0/ x0/ x0, x16/ x16/ x0/ x0, x16/ x16/ x0/ x8, x8/ x16/ x8/ x8 with the CPU that supports 40 PCIe lanes.
- Support x16/ x0/ x0/ x0, x16/ x8/ x0/ x0, x8/ x8/ x8/ x0, x8/ x8/ x8/ x4 with the CPU that supports 28 PCIe lanes.
• 2 x PCIe 2.0 x1 slots
* PCI_E6 slot shares the bandwidth with U.2 port and M.2 PCIe 3.0 x4. Please refer to page 32 for PCIe 3.0 bandwidth table.



Multi-GPU


• Supports 3-Way AMD® CrossFire™ Technology
• Supports 3-Way NVIDIA® SLI™ Technology


Storage

• Intel® X99 Chipset
• 10 x SATA 6Gb/s ports (2 ports from SATAe port)
- SATA1~6 support RAID 0, RAID 1, RAID 5 and RAID 10
- SATA7~10 only support IDE mode and AHCI mode
• 1 x M.2 slot (Key M)*
- Supports up to PCIe 3.0 x4 and SATA 6Gb/s
- Supports 2242/ 2260/ 2280 storage devices
• 1 x U.2 port */ **
- Supports PCIe 3.0 x4 NVMe storage
• 1 x SATAe port* (compatible with 2 SATA ports)
- Supports up to PCIe 2.0x2
• Supports Intel® Smart Response Technology***

* M.2 slot (PCIe 3.0 x4) and U.2 share the same bandwidth. Please refer to page 38 for U.2/ M.2/ SATAe & SATA combination table.
** The U.2 port will be unavailable when installing the PCIe device in PCI_E6 slot.
*** This function will be supported depend on the CPU.



USB

• ASMedia® ASM1142 Chipset
- 1 x USB 3.1 Gen2 (SuperSpeed USB 10Gbps) port on the back panel
- 1 x USB 3.1 Gen2 (Super Speed USB 10Gbps) Type-C port on the back panel

• Intel® X99 Chipset
- 5 x USB 3.1 Gen1 (SuperSpeed USB) ports (1 internal Type-C port on the board, 4 ports available through the internal USB connectors)
- 8 x USB 2.0 (High-speed USB) ports (4 ports on the back panel, 4 ports available through the internal USB connectors)

• VIA VL805 Chipset
- 4 x USB 3.1 Gen1 (SuperSpeed USB) ports on the back panel




Audio

• Realtek® ALC1150 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output



LAN

• 1 x Intel® I218-V Gigabit LAN controller



Internal I/O Connectors

- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
- 10 x SATA 6Gb/s connectors
- 1 x SATA Express connector
- 1 x M.2 slot
- 1 x U.2 port
- 2 x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
- 2 x USB 3.1 Gen1 connectors (supports additional 4 USB 3.1 Gen1 ports)
- 1 x USB 3.1 Gen1 Type-C port
- 1 x 4-pin CPU fan connector
- 1 x 4-pin Water Pump connector
- 3 x 4-pin system fan connectors
- 1 x Front panel audio connector
- 2 x Front panel connectors
- 1 x TPM module connector
- 1 x Chassis Intrusion connector
- 1 x Clear CMOS jumper
- 1 x Slow mode booting jumper
- 1 x GAME BOOST knob
- 1 x Power button
- 1 x Reset button
- 1 x Multi-BIOS switch
- 1 x RGB LED connector



Back Panel I/O Ports

- 1 x PS/2 keyboard/ mouse combo port
- 4 x USB 2.0 ports
- 1 x Clear CMOS button
- 4 x USB 3.1 Gen1 ports
- 1 x LAN (RJ45) port
- 1 x USB 3.1 Gen2 port
- 1 x USB 3.1 Gen2 Type-C port
- 1 x Optical S/PDIF OUT connector
- 5 x OFC audio jacks



Dimension

• 12 in. x 9.6 in. (30.5 cm x 24.4 cm)
• ATX Form Factor



Mounting

• 9 mounting holes
