MSI FM2+ Mini-ITX A68HI-AC Motherboard, BONUS Steelseries Mouse Pad!

Web ID: 18134

Socket FM2+/FM2 A-Series/Athlon, AMD A68H Chipset, 2 x DDR3 Memory Slots, 1 x PCIe x16, 4 x SATA 6Gb/s, RAID 0, 1, 10, D-Sub (VGA), DVI, HDMI, Gigabit Lan, Wireless-AC, Bluetooth 4.0, 4 x USB 3.0 (2 via back panel, 2 via internal headers), 4 x USB 2.0 (2 via back panel, 2 via internal header), 8 Channel Audio, Mini-ITX Form Factor, BONUS SteelSeries 63004 QcK Gaming Mouse Pad PN 63004
Manufacturer PN: A68HI-AC
GTIN: 824142116739
Warranty: 3 Year
Manufacturer Website


Military Class essentials

The core of Military Class 4 is based on the essentials which increase your stability in the worst conditions. The humidity protection and high temperature protection ensure your system surviving each environment, no matter how harsh. The new structure of the PCB limits EMI radiation. On top of that all the connectors have ESD protection in order to prevent short circuit.

Humidity Protection


The latest Gen 4 Fabric PCB helps to against moisture cause by some humid conditions and environments.

EMI Protection


The optimized EMI-proof design helps to keep users safe when during a long-time computer operation.

ESD Protection


Anti-ESD ICs and fuses onboard helps to totally protect your motherboard from electrostatic damage.

HIGH Temperature Protection


Certificated Military Class 4 components help to work stable under some extreme conditions.

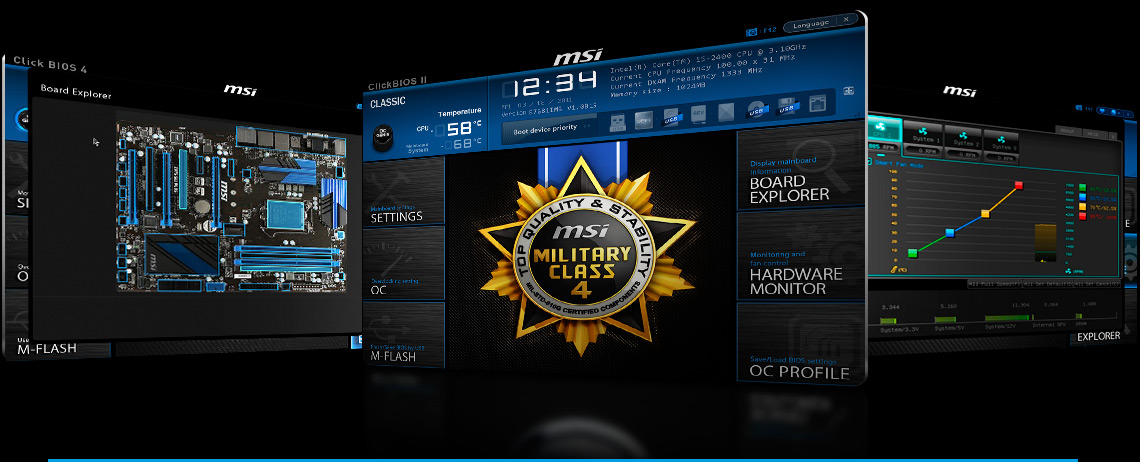

The MSI Click BIOS 4 is the latest UEFI BIOS with optimizations for Windows 8.1 / Windows 10. Not only that it also reacts faster, runs smoother and has better mouse support. And this all comes with many cool features. Click on the button on the right to visit our dedicated BIOS page and learn more.


MSI Live Update is renewed! Our popular software automatically downloads and installs the latest drivers, BIOS and software. Rest assured while your system is always configured using the latest software so you get the maximum performance and stability.

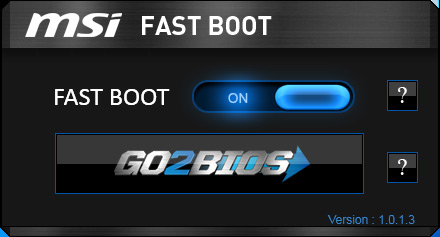

No more seamless waiting for your O/S to be loaded! MSI Fast Boot helps to make your system boot lightning fast. MSI Fast Boot also features a GO2BIOS button. Simply click it to restart your PC and go straight to the system BIOS.


Compared to common motherboards which need extra BIOS chips, MSI's M-Flash has a double advantage which doesn't need extra components and secondly, all your BIOS data will be saved in the USB drive. The stored data does not only have backup and upgrade function, moreover, it can also be seen as a portable BIOS chip which is actually able to boot up your PC.

  • Backup/Restore Your BIOS to/from Any USB Flash Disk
  • Avoid Unnecessary Repair Due to Accident Failures During The Upgrading Process
  • Earn more BIOS Lifespan by Reducing Unnecessary Rewriting Process


USB 3.0

Compared to the 480Mbps provided by traditional USB 2.0, the all-new USB 3.0's 5Gb/s offers 10 times the transfer bandwidth, so transferring a Blu-ray movie takes less than one minute.

  • 10X Faster Than USB 2.0
  • Up to 5Gb/s Data Transfer Bandwidth
  • Boost Transfer Rate Between Your PC and External Storage Devices

SATA 6Gb/s

SATA 6Gb/s provides double the bandwidth of traditional SATA 3Gb/s, and increases the data transfer rate between your motherboard and internal storage devices, such as 7200RPM HDDs, 10000RPM HDDs and SSDs. It's also the current trend for upcoming high-speed internal storage devices to break the existing bottleneck of a PC's performance.

  • 2X Faster Than SATA 3Gb/s
  • Up to 6Gb/s Data Transfer Bandwidth
  • Unleash True Performance of New HDDs/SSDs

USB Safeguard

USB Safeguard can prevent motherboards and USB devices from being damaged by short-circuit and ESD (Electro-Static Discharge) with Anti-ESD chips built-into the motherboards. Additionally, the safeguard can protect against such dangers multiple times, and greatly improves product lifespan.

  • All MSI motherboards use USB Safeguard’s anti-ESD chip for thorough protection against ESD damage
  • USB Safeguard is protected against a short circuit and/or ESD without the need for a fuse. It also supports stand-by power supply

AMD Cool'n'Quiet

AMD Cool'n'Quiet™ Technology reduces heat and noise so you can experience amazing performance without distraction. Combined with core enhancements, included in the AMD processors, that can improve overall power savings, deliver better multitasking and energy efficiency. Cool'n'Quiet technology can automatically adjust processor ratio to throttle CPU speed with four modes.

  • Independent Dynamic Core Technology
  • Dual Dynamic Power Management™
  • AMD CoolCore™ Technology
  • AMD Wideband Frequency Control
  • Multi-Point Thermal Control


Enjoy the awesome HD video playback now! MSI motherboards that equip with HDMI port(s) supports the latest and the most innovative signal outputs to provide an unprecedented visual experience.


• Supports FM2+ Socket for AMD® A-series/ Athlon™ Series Processor

Also support FM2 A-Series/Athlon™ Processors



• AMD A68H

Main Memory

• 2 x DDR3 memory slots supporting up to 32GB
• Supports DDR3 2133/ 1866/ 1600/ 1333 MHz
• Dual channel memory architecture
• Supports non-ECC, un-buffered memory
• Supports AMD Memory Profile (AMP)
• Supports Extreme Memory Profile (XMP)


Expansion Slots
• 1 x PCIe 3.0 x16 slot
• 1x M.2 slot (Key E, type 2230)
- Supports both PCIe (Wi-Fi module**) or USB (Bluetooth module) interface.

*Only FM2+ processors can support PCIe 3.0
** M.2 port does not support Wake-On-WLAN function.


•1x VGA port, supporting a maximum resolution of 1920x1200 @60Hz, 24bpp
• 1x DVI-D port, supporting a maximum resolution of 2560x1600@60Hz, 24bpp/ 1920x1200 @ 60Hz, 24bpp
• 1x HDMI port, supporting a maximum resolution of 4096x2160@24Hz, 36bpp*/ 3840x2160@30Hz, 36bpp*/ 1920x1200@120Hz, 36bpp and 1920x1200@60Hz, 36bpp
*Only be supportted when using an FM2+ processors

On-Board SATA

• AMD A68H Chipset
- 4x SATA 6Gb/s ports
- Supports RAID 0, RAID1 and RAID 10


• Realtek® ALC887 Codec
 -7.1-Channel High Definition Audio

WLAN& Bluetooth

•Wi-Fi/Bluetooth expansion module with Intel Dual Band Wireless-AC 7260 chip*.
 - Supports Wi-Fi 802.11 a/b/g/n/ac, dual band (2.4GHz, 5GHz) up to 867 Mbps speed.
 - Supports Intel Wireless Display (WiDi)
 - Supports Bluetooth v4.0 (includes BLE** and Bluetooth 3.0+HS)

* Only A68HI AC has a Wi-Fi/ Bluetooth module pre-installed.
** BLE: Bluetooth Low Energy


• Realtek® RTL8111G Gigabit LAN

Back Panel I/O Ports

- 1x PS/2 keyboard/ mouse combo port
- 2x USB 2.0 ports
- 2x USB 3.0 ports
- 1x VGA port
- 1x DVI-D port
- 1x HDMI port
- 1x LAN (RJ45) port
- 3 x audio jacks


Internal I/O Connectors

 1x 24-pin ATX main power connector
- 1x 4-pin ATX 12V power connector
- 4x SATA 6Gb/s connectors
- 1x USB 2.0 connector (supports additional 2 USB 2.0 ports)
- 1x USB 3.0 connector (supports additional 2 USB 3.0 ports)
- 1x 4-pin CPU fan connector
- 1x 4-pin system fan connector
- 1x Front panel audio connector
- 2x Front panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Clear CMOS jumper


• 6.7 in. x 6.7 in. (17 cm x 17 cm)


• AMD A68H Chipset
-2x USB 3.0 ports available through the internal USB 3.0 connector
-4x USB 2.0 ports (2 ports on the back panel, 2 ports available through the internal USB 2.0 connectors)

• VIA VL806 Chipset
- 2x USB 3.0 ports on the back panel
- Rear USB 3.0 ports do not support the function of M-flash Recovery

Form Factor

• Mini-ITX
